SBV210 Series 5.0mm Orifice Two-Piece Ball Valve
SBV210 Series 5.0mm Orifice Two-Piece Ball Valve
SKU:SBV-1d6ed0
High-performance SBV210 Series 5.0mm Two-Piece Ball Valve for industrial applications. Compact, durable, and tested for quality assurance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SBV210 Series 5.0mm Orifice Two-Piece Ball Valve
$89.99
Quantity: 1
Claim Your Seller Account
SBV210 Series 5.0mm Orifice Two-Piece Ball Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series 5.0mm Orifice Two-Piece Ball Valve is engineered for exceptional performance in demanding industrial applications. With a pressure rating of 1000 psig, 316 Stainless Steel body, and 1/4 inch SUPERLOK® end connections, this valve ensures reliable operation and longevity. Its compact design, low torque operation, and availability in butterfly or lever handle options make it versatile for varied settings. Each valve undergoes rigorous testing, guaranteeing top-notch quality and compliance with industry standards.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

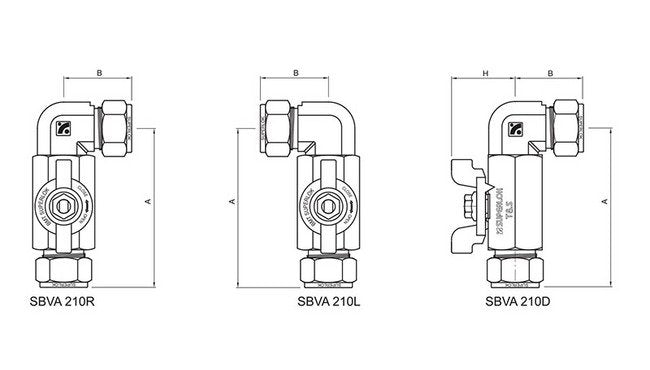

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
65.3 mm
Technical Specs Dimension B
30.5 mm
Technical Specs Dimension H
23.0 mm
Technical Specs End Connections
1/4 in. SUPERLOK®
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
5.0 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
