SBV210 Series 5.0mm Orifice Two-Piece Ball Valve
SBV210 Series 5.0mm Orifice Two-Piece Ball Valve
SKU:SBV-4a0a9b
Experience precision and durability with the SBV210 Series 5.0mm Orifice Ball Valve, designed for easy operation and lasting performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
SBV210 Series 5.0mm Orifice Two-Piece Ball Valve
$59.99
Quantity: 1
Claim Your Seller Account
SBV210 Series 5.0mm Orifice Two-Piece Ball Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series 5.0mm Orifice Two-Piece Ball Valve offers exceptional durability with 316 Stainless Steel or Brass body material options. Tested at the factory, this valve ensures reliable performance at a 1000 psig pressure rating. With a compact design, low torque operation, and various handle options, this valve delivers ease of use and versatility. The 1/4 inch SUPERLOK® end connections cater to institutional standards, making it an ideal choice for precise flow control applications.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

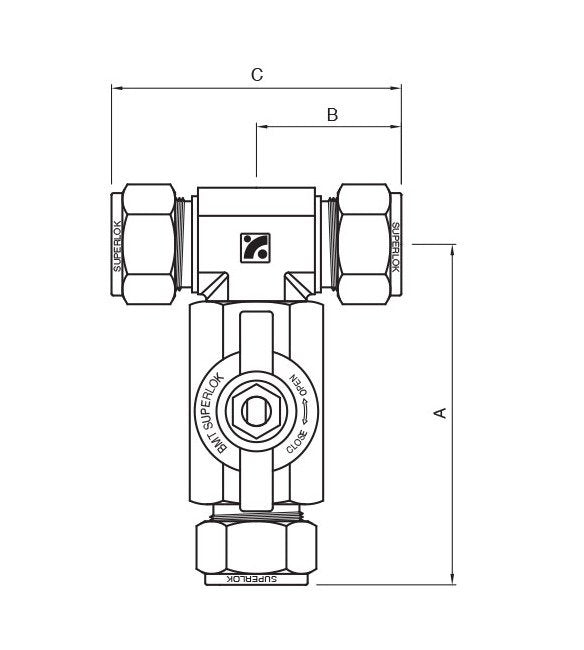

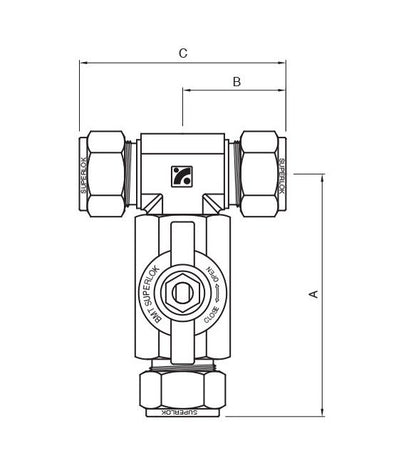

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
65.3 mm
Technical Specs Dimension B
30.5 mm
Technical Specs Dimension C
61.0 mm
Technical Specs End Connections
1/4 in. SUPERLOK®
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
5.0 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
