SBV210 Series 5.0mm Two-Piece Ball Valve
SBV210 Series 5.0mm Two-Piece Ball Valve
SKU:SBV-f286c4
High-performance SBV210 Series 5.0mm Ball Valve for institutional use with superior pressure rating and durable construction.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SBV210 Series 5.0mm Two-Piece Ball Valve
$89.99
Quantity: 1
Claim Your Seller Account
SBV210 Series 5.0mm Two-Piece Ball Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series 5.0mm Two-Piece Ball Valve offers superior performance in institutional settings with a pressure rating of 1000 psig, compact design, smooth operation, and a range of handle options. Constructed with high-quality materials like 316 Stainless Steel and Brass, this valve ensures durability and reliability. Tested at the factory, it guarantees tight sealing and low torque operation. With 6mm SUPERLOK® end connections, this valve meets stringent procurement standards.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

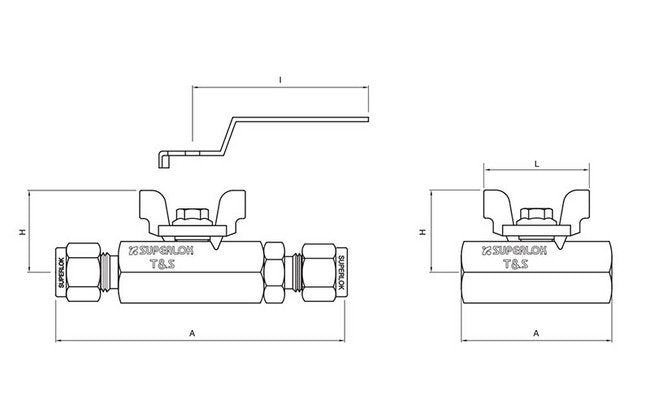

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
79.8 mm
Technical Specs Dimension H
23.0 mm
Technical Specs Dimension I
60 mm
Technical Specs Dimension L
30.0 mm
Technical Specs End Connections
6 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
1.25
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
5.0 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
