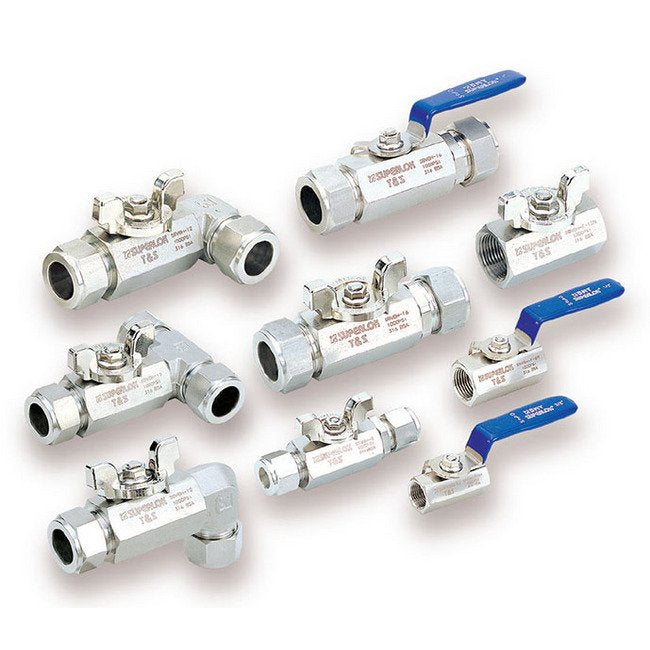

SBV210 Series 7.5mm Orifice Ball Valve with SUPERLOK End Connections
SBV210 Series 7.5mm Orifice Ball Valve with SUPERLOK End Connections
SKU:SBV-502782
SBV210 Series 7.5mm Orifice Ball Valve for precision flow control in industrial applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
SBV210 Series 7.5mm Orifice Ball Valve with SUPERLOK End Connections
$149.99
Quantity: 1
Claim Your Seller Account
SBV210 Series 7.5mm Orifice Ball Valve with SUPERLOK End Connections
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series 7.5mm Orifice Ball Valve with 3/8in SUPERLOK End Connections is a top-of-the-line two-piece type valve designed for maximum performance and durability. Constructed with 316 Stainless Steel or Brass, it boasts a pressure rating of 1000 psig, ensuring reliable operation in various applications. This valve features a compact design, low torque operation, and is available with butterfly or lever handle options for easy operation. Each valve is factory-tested to guarantee quality, making it a preferred choice for industrial, government, and institutional buyers.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

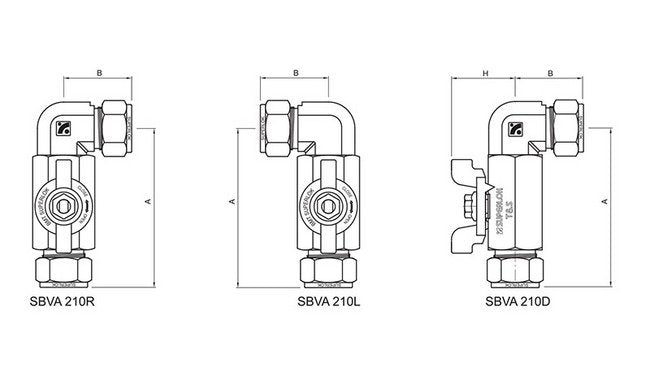

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
77.5 mm
Technical Specs Dimension B
36.1 mm
Technical Specs Dimension H
31.0 mm
Technical Specs End Connections
3/8 in. SUPERLOK®
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
7.5 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
