SBV210 Series 7.5mm Orifice Two-Piece Ball Valve

Name: SBV210 Series 7.5mm Orifice Two-Piece Ball Valve
Brand: Superlok-Mako Products LLC
SKU: SBV-c52a7e
Price: 89.99 USD
Availability: OutOfStock

SKU:SBV-c52a7e

Precision control with SBV210 Series 7.5mm Orifice Ball Valve. Durable design with 1000 psig pressure rating. Ideal for industrial applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SBV210 Series 7.5mm Orifice Two-Piece Ball Valve is designed for precision flow control in rigorous industrial environments. With a pressure rating of 1000 psig and compact design, it ensures reliable performance. Made of 316 Stainless Steel, this valve offers durability and corrosion resistance. The butterfly and lever handle options provide smooth operation, meeting the stringent quality standards for government and institutional procurement.

Product Specifications

Features Features

Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory

Note Note

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Body Material

316 Stainless Steel | Brass

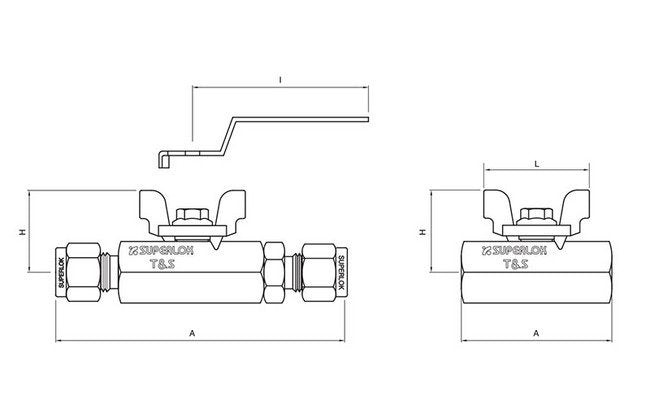

Technical Specs Dimension A

46.6 mm

Technical Specs Dimension H

31.0 mm

Technical Specs Dimension I

90.0 mm

Technical Specs Dimension L

48.0 mm

Technical Specs End Connections

3/8 in. Female National Pipe Thread (FNPT)

Technical Specs Flow Coefficients Cv

2.6

Technical Specs Handle

Bar Handle | Butterfly Handle (Standard)

Technical Specs Orifice Size

7.5 mm

Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg

1000 psig | 69 bar

SBV210 Series 7.5mm Orifice Two-Piece Ball Valve
