SBV210 Series 9.0mm Ball Valve with 12mm SUPERLOK End Connections
SBV210 Series 9.0mm Ball Valve with 12mm SUPERLOK End Connections
SKU:SBV-b98327
Premium SBV210 Series 9.0mm Ball Valve for precise flow control and durability
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SBV210 Series 9.0mm Ball Valve with 12mm SUPERLOK End Connections
$89.99
Quantity: 1
Claim Your Seller Account
SBV210 Series 9.0mm Ball Valve with 12mm SUPERLOK End Connections
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series 9.0mm Orifice Ball Valve with 12mm SUPERLOK End Connections is a precision-engineered two-piece type valve designed for durability and reliability. With a pressure rating of 1000 psig, this valve ensures seamless flow control in demanding applications. Its compact design, low torque operation, and availability of butterfly and lever handles make it versatile for various industrial settings. Constructed from high-grade 316 Stainless Steel or Brass, each valve undergoes rigorous factory testing to meet quality standards. Experience efficiency and performance with this high-quality ball valve.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

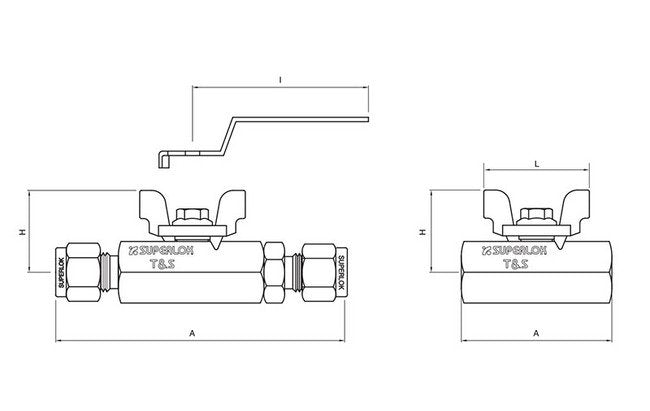

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
101.4 mm
Technical Specs Dimension H
34.0 mm
Technical Specs Dimension I
90.0 mm
Technical Specs Dimension L
50.0 mm
Technical Specs End Connections
12 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
9.5
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
9.0 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
