SBV210 Series 9.0mm Orifice Two-Piece Ball Valve
SBV210 Series 9.0mm Orifice Two-Piece Ball Valve
SKU:SBV-ce836e
High-quality SBV210 Series 9.0mm Orifice Two-Piece Ball Valve for industrial use. Pressure rating of 1000 psig, durable materials, and user-friendly design.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
SBV210 Series 9.0mm Orifice Two-Piece Ball Valve
$149.99
Quantity: 1
Claim Your Seller Account
SBV210 Series 9.0mm Orifice Two-Piece Ball Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series 9.0mm Orifice Two-Piece Ball Valve is designed for optimal performance in industrial applications. With a pressure rating of 1000 psig, this valve ensures reliable operation. The tight and smooth operation, low torque handling, and options of butterfly or lever handle make it user-friendly. Made of high-quality 316 Stainless Steel or Brass, this valve is durable and long-lasting. Tested at the factory, each valve guarantees quality and functionality.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

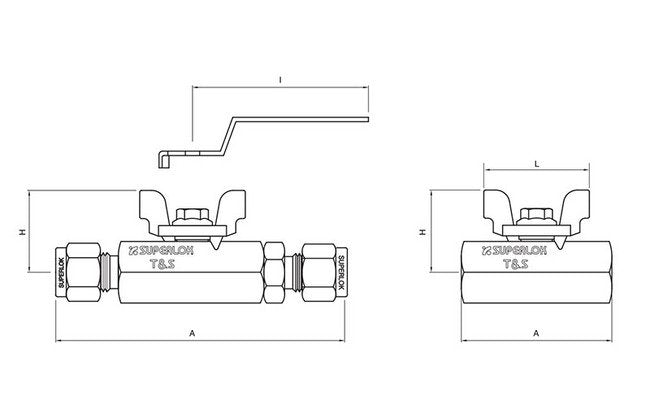

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
101.4 mm
Technical Specs Dimension H
34.0 mm
Technical Specs Dimension I
90.0 mm
Technical Specs Dimension L
50.0 mm
Technical Specs End Connections
1/2 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
9.5
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
9.0 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
