SBV210 Series 9.0mm Two-Piece Ball Valve with 1/2" FNPT End Connections
SBV210 Series 9.0mm Two-Piece Ball Valve with 1/2" FNPT End Connections
SKU:SBV-d70d1b
SBV210 Series 9.0mm Two-Piece Ball Valve: Pressure rated at 1000 psig, compact design, easy operation, and durable construction for reliable performance.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
SBV210 Series 9.0mm Two-Piece Ball Valve with 1/2" FNPT End Connections
$45.99
Quantity: 1
Claim Your Seller Account
SBV210 Series 9.0mm Two-Piece Ball Valve with 1/2" FNPT End Connections
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series 9.0mm Two-Piece Type Ball Valve is a versatile solution offering a pressure rating of 1000 psig, tight operation with low torque, and a compact design. Constructed with durable 316 Stainless Steel or Brass, this valve ensures reliability in various applications. With 1/2" FNPT End Connections, a Flow Coefficient of 9.5, and options for Bar or Butterfly handles, this valve is easy to operate and meets stringent quality standards.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

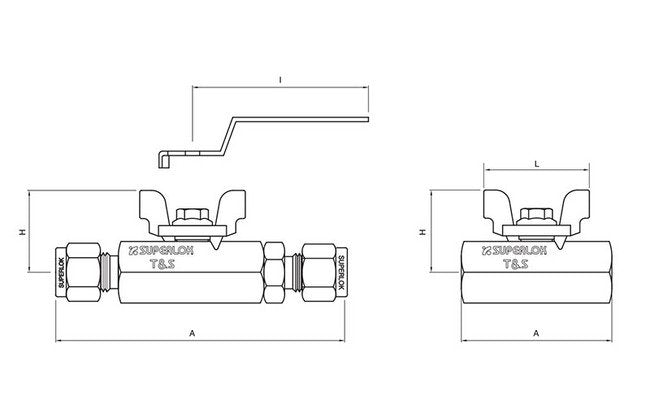

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
55.0 mm
Technical Specs Dimension H
34.0 mm
Technical Specs Dimension I
90.0 mm
Technical Specs Dimension L
50.0 mm
Technical Specs End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
9.5
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
9.0 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
