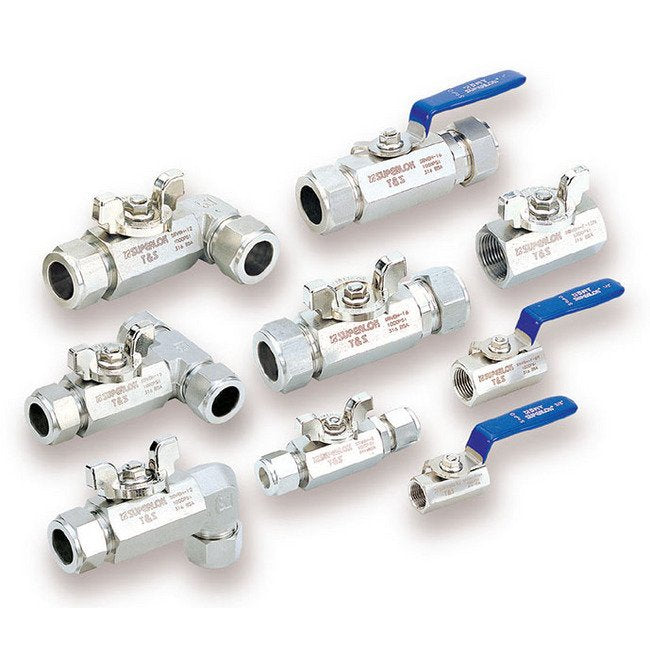

SBV210 Series Two-Piece Ball Valve - 7.5mm Orifice
SBV210 Series Two-Piece Ball Valve - 7.5mm Orifice
SKU:SBV-cef581
Precision-engineered SBV210 Series Two-Piece Ball Valve for high-pressure applications with 7.5mm orifice & 3/8 inch SUPERLOK® end connections.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
SBV210 Series Two-Piece Ball Valve - 7.5mm Orifice
$99.99
Quantity: 1
Claim Your Seller Account
SBV210 Series Two-Piece Ball Valve - 7.5mm Orifice
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series Two-Piece Ball Valve with a precise 7.5mm orifice size and 3/8 inch SUPERLOK® end connections is engineered for high-pressure applications up to 1000 psig. Crafted from 316 Stainless Steel or Brass, it offers a compact design, low torque operation, and a variety of handle options including butterfly and lever handles. Each valve undergoes rigorous factory testing ensuring reliability and performance. Perfect for industrial and government installations, this valve guarantees exceptional quality and compliance with industry standards.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

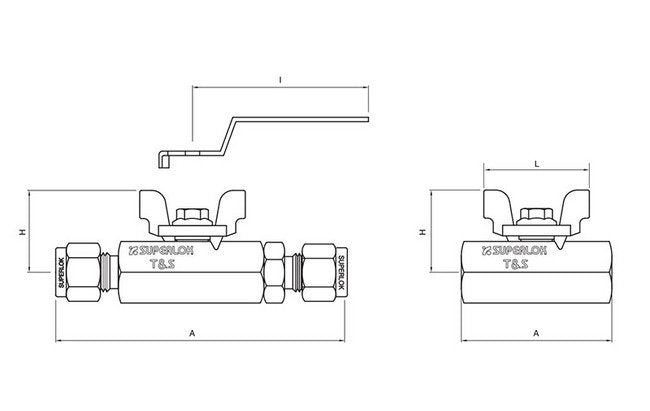

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
91.5 mm
Technical Specs Dimension H
31.0 mm
Technical Specs Dimension I
90.0 mm
Technical Specs Dimension L
48.0 mm
Technical Specs End Connections
3/8 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
2.5
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
7.5 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
