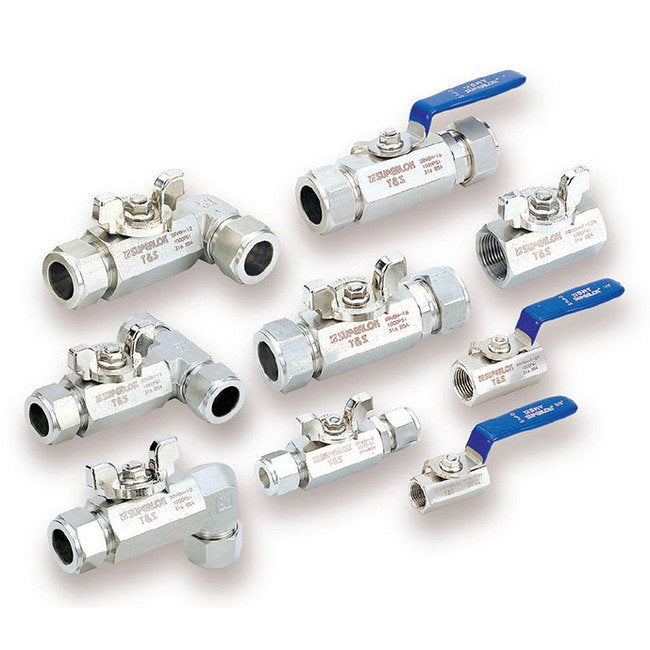

SBV210 Series Two-Piece Ball Valve - 7.5mm Orifice, 10mm SUPERLOK End Connections
SBV210 Series Two-Piece Ball Valve - 7.5mm Orifice, 10mm SUPERLOK End Connections
SKU:SBV-7acc2a
SBV210 Series 7.5mm Orifice Ball Valve for precise flow control. Compact design, easy operation, and reliable performance.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
SBV210 Series Two-Piece Ball Valve - 7.5mm Orifice, 10mm SUPERLOK End Connections
$65.99
Quantity: 1
Claim Your Seller Account
SBV210 Series Two-Piece Ball Valve - 7.5mm Orifice, 10mm SUPERLOK End Connections
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series 7.5mm Orifice Ball Valve with 10mm SUPERLOK End Connections is designed for efficiency and durability. With a pressure rating of 1000 psig, this valve ensures reliable performance. Its compact design, low torque operation, and butterfly/lever handle options offer ease of use. Tested at the factory, it guarantees quality. Ideal for industrial applications, this valve is made of 316 Stainless Steel/Brass. Enjoy precise flow control and seamless operation with this trusted valve.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

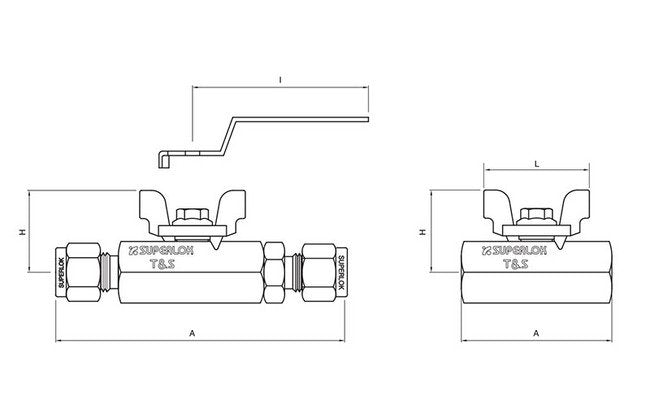

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
91.5 mm
Technical Specs Dimension H
31.0 mm
Technical Specs Dimension I
90.0 mm
Technical Specs Dimension L
48.0 mm
Technical Specs End Connections
10 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
2.6
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
7.5 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
