The SBV210 Series Two-Piece Ball Valve with a 12.5mm orifice size and 5/8 inch SUPERLOK® end connections is a high-quality valve designed for industrial applications. Constructed with 316 stainless steel or brass body material, this valve offers a pressure rating of 1000 psig, ensuring reliable performance in various operating conditions. With features like a compact design, low torque operation, and butterfly or lever handle options, this valve provides ease of use and versatility. Each valve undergoes rigorous testing at the factory, ensuring consistent quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

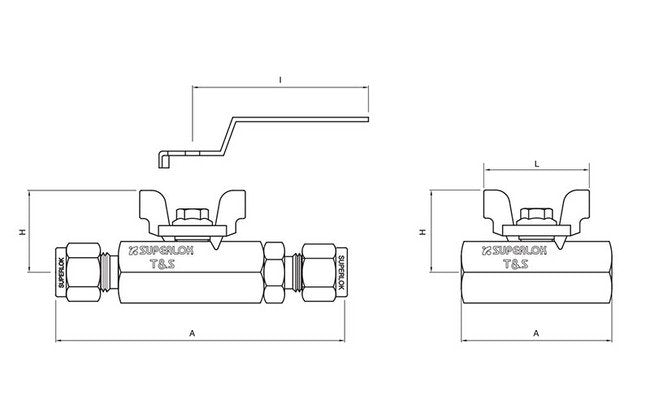

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
107.0 mm
Technical Specs Dimension H
39.0 mm
Technical Specs Dimension I
100 mm
Technical Specs Dimension L
55.0 mm
Technical Specs End Connections
5/8 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
10.6
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
12.5 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
