SBVA210 Series 16.0mm Two-Piece Ball Valve with 1in SUPERLOK® End Connections

SBVA210 Series 16.0mm Two-Piece Ball Valve with 1in SUPERLOK® End Connections

SBV-dc9e59

High-quality SBVA210 Series 16.0mm Two-Piece Ball Valve with 1in SUPERLOK® End Connections for precise flow control.

$59.99
$59.99
Sale

Initiate Order

SBVA210 Series 16.0mm Two-Piece Ball Valve with 1in SUPERLOK® End Connections

SBVA210 Series 16.0mm Two-Piece Ball Valve with 1in SUPERLOK® End Connections

$59.99

Quantity: 1

Claim Your Seller Account

SBVA210 Series 16.0mm Two-Piece Ball Valve with 1in SUPERLOK® End Connections

SBVA210 Series 16.0mm Two-Piece Ball Valve with 1in SUPERLOK® End Connections

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SBVA210 Series 16.0mm Two-Piece Ball Valve with 1in SUPERLOK® End Connections offers a robust solution for precise flow control. Constructed from high-grade 316 Stainless Steel or Brass, it ensures durability and reliability. With a pressure rating of 1000 psig, this valve guarantees optimal performance in diverse applications. Featuring a compact design, low torque operation, and various handle options, including Butterfly and Lever handles, this valve is versatile and easy to operate. Tested at the factory, each valve meets stringent quality standards, making it ideal for industrial, commercial, and institutional use.

Product Specifications

Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

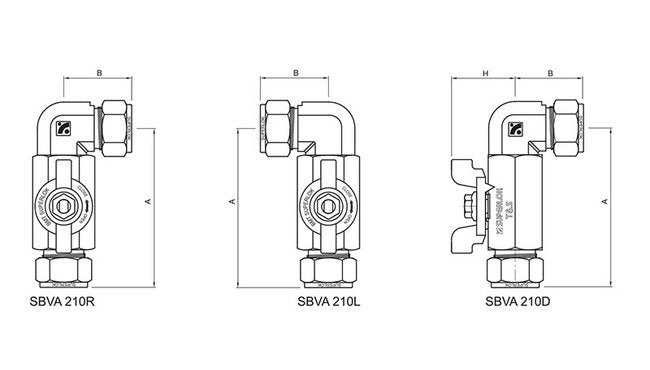

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
115.3 mm
Technical Specs Dimension B
49.0 mm
Technical Specs Dimension H
45.0 mm
Technical Specs End Connections
1 in. SUPERLOK®
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
16.0 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
