SBVA210 Series Two-Piece Ball Valve with 12.5mm Orifice and 3/4in SUPERLOK® End Connections
SBVA210 Series Two-Piece Ball Valve with 12.5mm Orifice and 3/4in SUPERLOK® End Connections
SKU:SBV-eefe88
Discover the SBVA210 Series Two-Piece Ball Valve - precise, reliable, and versatile for your industrial needs.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SBVA210 Series Two-Piece Ball Valve with 12.5mm Orifice and 3/4in SUPERLOK® End Connections
$89.99
Quantity: 1
Claim Your Seller Account
SBVA210 Series Two-Piece Ball Valve with 12.5mm Orifice and 3/4in SUPERLOK® End Connections
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBVA210 Series Two-Piece Ball Valve is engineered for precision and reliability. Featuring a 12.5mm orifice and 3/4in SUPERLOK® end connections, this valve ensures a tight seal with a pressure rating of 1000 psig. Its compact design, low torque operation, and availability in butterfly or lever handle make it ideal for diverse applications. Crafted from 316 Stainless Steel or Brass, each valve undergoes rigorous factory testing for quality assurance. This product is designed to meet stringent industry standards, providing durability and performance in commercial and institutional settings.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

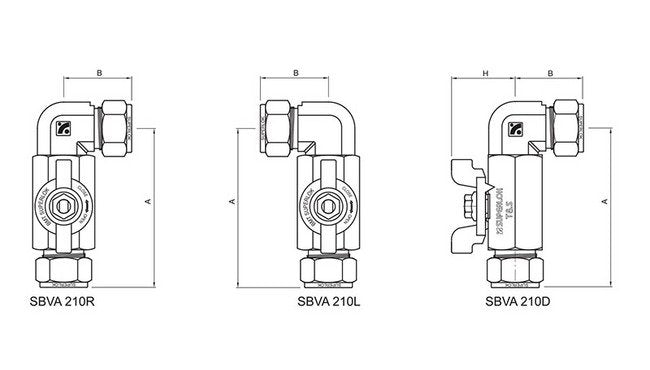

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
93.8 mm
Technical Specs Dimension B
39.9 mm
Technical Specs Dimension H
39.0 mm
Technical Specs End Connections
3/4 in. SUPERLOK®
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
12.5 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
