SBVF360 High Pressure Ball Valve 3/4in SUPERLOK End Connection
SBVF360 High Pressure Ball Valve 3/4in SUPERLOK End Connection
SKU:SBV-2b2893
Premium SBVF360 High Pressure Ball Valve for precise flow control in industrial settings.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
SBVF360 High Pressure Ball Valve 3/4in SUPERLOK End Connection
$189.99
Quantity: 1
Claim Your Seller Account
SBVF360 High Pressure Ball Valve 3/4in SUPERLOK End Connection
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

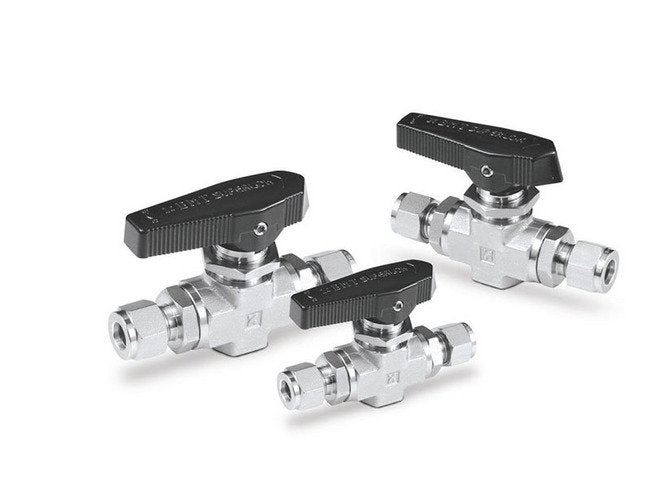

The SBVF360 Series 3/4 Inch High Pressure Ball Valve is a top-of-the-line solution for industrial applications. Engineered for durability and optimal performance, this forged valve features a compact design, low operating torques, and panel mountability. With superior temperature ratings up to 1200ºF, various packing options, and precise orifice sizing, this valve ensures reliable flow control. Tested to meet stringent industry standards for leak rate and pressure, the SBVF360 is a trusted choice for critical systems requiring precision and efficiency.
Product Specifications
Features Features
Compact DesignLow Operating TorquesPanel MountableFloating Ball DesignTwo Way and Three WayTypes Handle Direction Indicates Flow Direction
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

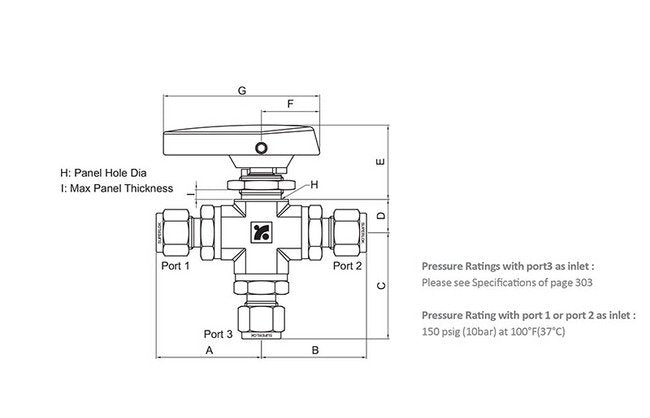

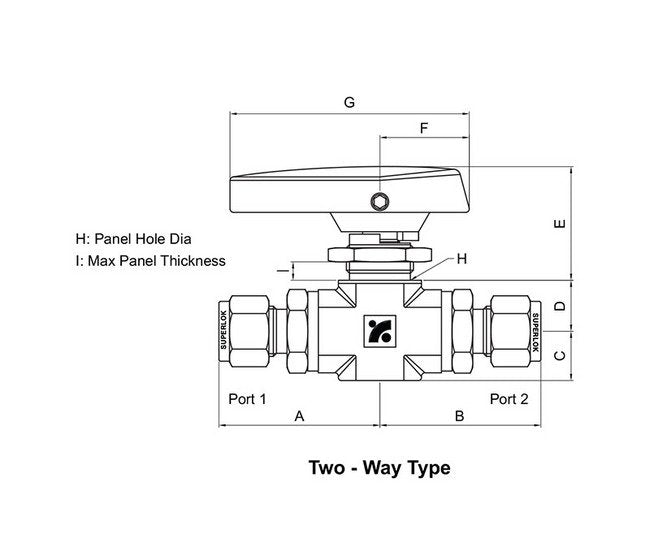

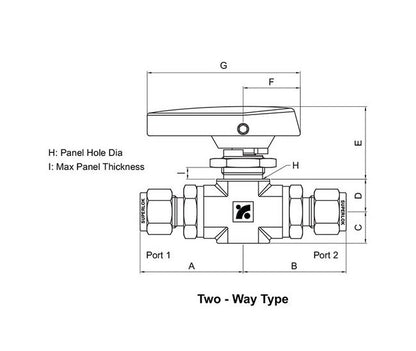

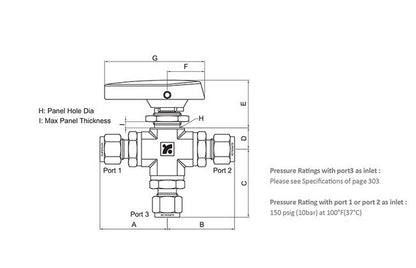

Technical Specs Dimension A
59.2 mm
Technical Specs Dimension B
59.2 mm
Technical Specs Dimension C
67.9 mm
Technical Specs Dimension D
19.3 mm
Technical Specs Dimension E
41.1 mm
Technical Specs Dimension F
27.7 mm
Technical Specs Dimension G
74.2 mm
Technical Specs Dimension H
22.9 mm
Technical Specs Dimension I
9.7 mm
Technical Specs End Connections
3/4 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
3.62
Technical Specs Orifice Size
0.406 in | 10.3 mm
Technical Specs Temperature Rating For 316 Stainless Steel With
-65 to 1200 ºF | -65 to 1200 ºC
Technical Specs Temperature Rating For Nitrile Butadiene Rubber
-40 to 250 ºF | -40 to 120 ºC
Technical Specs Temperature Rating For Polychlorotrifluoroethyle
-65 to 1200 ºF | -53 to 93 ºC
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 450 ºF | -53 to 232 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 350 ºF | -53 to 177 ºC
Testing Testing
Each and every valve is tested with nitrogen at 1000 psig (69 bar)Valve have max allowable leak rate of 0.1 cm³/min.Shell testing is performed on demand.
