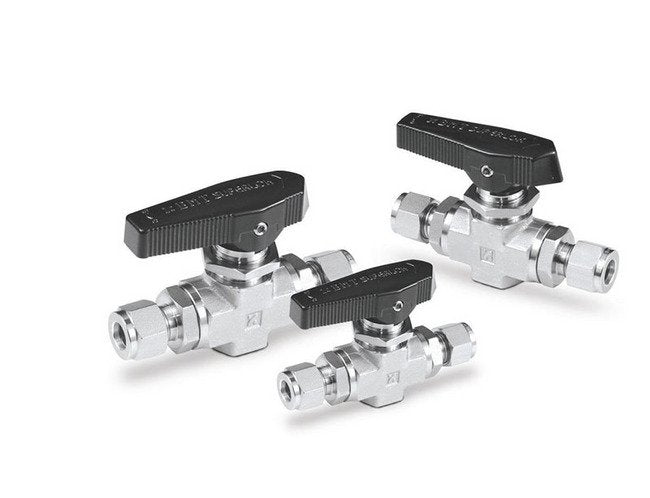

SBVF360 Series 3mm SUPERLOK End Ball Valve

SBVF360 Series 3mm SUPERLOK End Ball Valve

SKU:SBV-4dc947

Precise 3mm end ball valve for high-pressure systems, reliable performance in extreme temperatures.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

SBVF360 Series 3mm SUPERLOK End Ball Valve

SBVF360 Series 3mm SUPERLOK End Ball Valve

$49.99

Quantity: 1

Claim Your Seller Account

SBVF360 Series 3mm SUPERLOK End Ball Valve

SBVF360 Series 3mm SUPERLOK End Ball Valve

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SBVF360 Series 3mm SUPERLOK End Ball Valve offers exceptional performance in high-pressure applications. With a temperature rating ranging from -65 to 1200ºF, this forged ball valve ensures reliable operation. Its compact design, low operating torques, and panel-mountable feature make it a versatile choice. Additionally, this valve is tested to meet stringent standards, including a max leak rate of 0.1 cm³/min, ensuring precision and reliability in critical operations.

Product Specifications

Features Features
Compact DesignLow Operating TorquesPanel MountableFloating Ball DesignTwo Way and Three WayTypes Handle Direction Indicates Flow Direction
Note Note

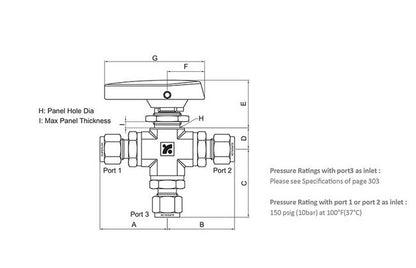

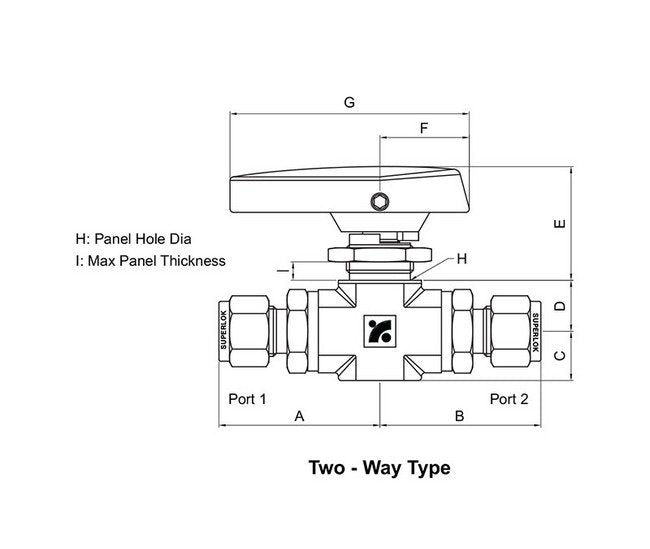

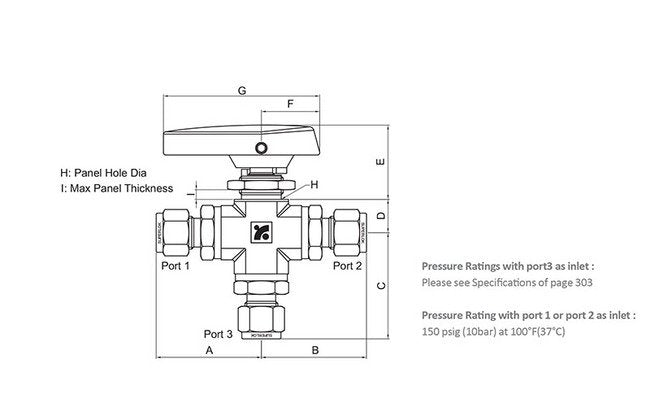

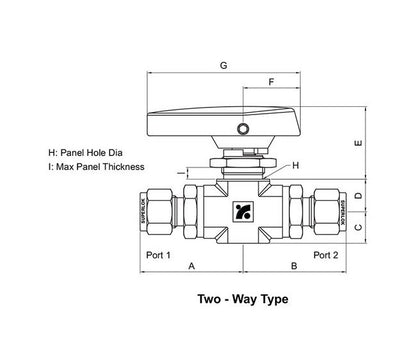

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
34.8 mm
Technical Specs Dimension B
34.8 mm
Technical Specs Dimension C
36.8 mm
Technical Specs Dimension D
10.5 mm
Technical Specs Dimension E
23.5 mm
Technical Specs Dimension F
18.0 mm
Technical Specs Dimension G
47.0 mm
Technical Specs Dimension H
16.3 mm
Technical Specs Dimension I
3.3 mm
Technical Specs End Connections
3 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
0.18
Technical Specs Orifice Size
0.086 in | 2.2 mm
Technical Specs Temperature Rating For 316 Stainless Steel With
-65 to 1200 ºF | -65 to 1200 ºC
Technical Specs Temperature Rating For Nitrile Butadiene Rubber
-40 to 250 ºF | -40 to 120 ºC
Technical Specs Temperature Rating For Polychlorotrifluoroethyle
-65 to 1200 ºF | -53 to 93 ºC
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 450 ºF | -53 to 232 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 350 ºF | -53 to 177 ºC
Testing Testing
Each and every valve is tested with nitrogen at 1000 psig (69 bar)Valve have max allowable leak rate of 0.1 cm³/min.Shell testing is performed on demand.
