SBVF360 Series 6mm High Pressure Ball Valve
SBVF360 Series 6mm High Pressure Ball Valve
SKU:SBV-c1e15d
Premium SBVF360 Series 6mm High Pressure Ball Valve - Durable, Reliable, and Precise. Ideal for extreme conditions.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SBVF360 Series 6mm High Pressure Ball Valve
$129.99
Quantity: 1
Claim Your Seller Account
SBVF360 Series 6mm High Pressure Ball Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

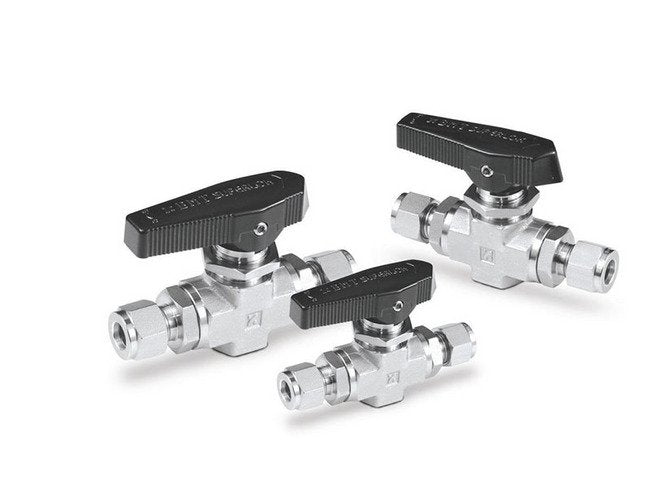

The SBVF360 Series 6mm SUPERLOK® High Pressure Ball Valve is designed for extreme temperature conditions, with a temperature rating ranging from -65 to 1200°F. This forged ball valve features a compact design, low operating torques, and a floating ball design, ensuring reliable performance in demanding environments. Tested to meet stringent standards, this valve offers a maximum allowable leak rate of 0.1 cm³/min, making it suitable for critical applications where precision and durability are paramount. With end connections optimized for secure sealing, this valve is panel mountable and available in two-way and three-way configurations, with handle direction indicating flow direction for added convenience.
Product Specifications
Features Features
Compact DesignLow Operating TorquesPanel MountableFloating Ball DesignTwo Way and Three WayTypes Handle Direction Indicates Flow Direction
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

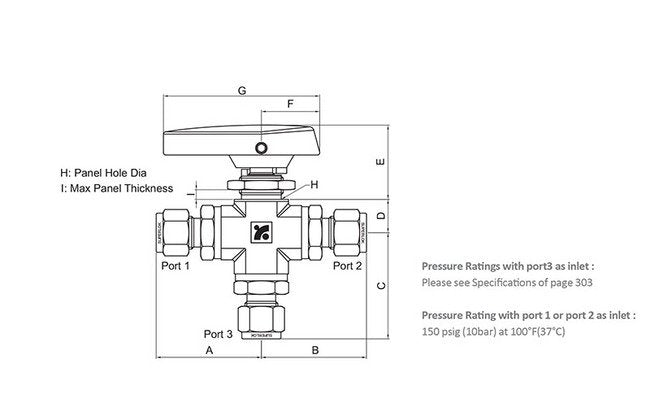

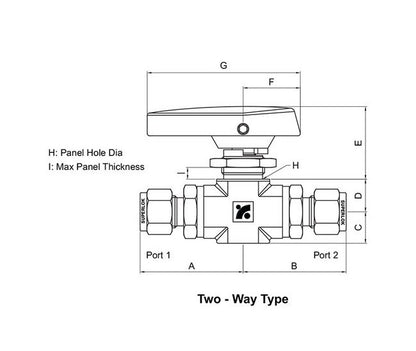

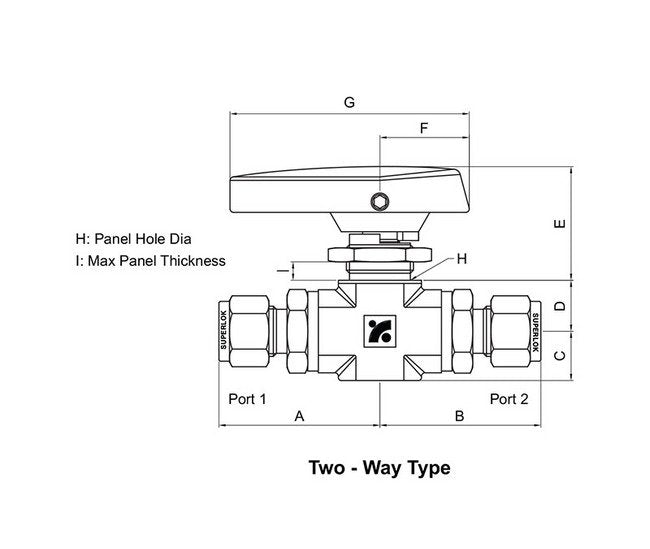

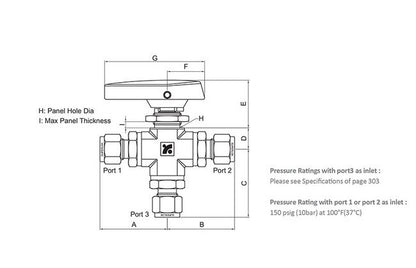

Technical Specs Dimension A
44.5 mm
Technical Specs Dimension B
44.5 mm
Technical Specs Dimension C
48.7 mm
Technical Specs Dimension D
14.5 mm
Technical Specs Dimension E
32.3 mm
Technical Specs Dimension F
25.4 mm
Technical Specs Dimension G
68.0 mm
Technical Specs Dimension H
19.6 mm
Technical Specs Dimension I
6.4 mm
Technical Specs End Connections
6 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
0.7
Technical Specs Orifice Size
0.189 in | 4.8 mm
Technical Specs Temperature Rating For 316 Stainless Steel With
-65 to 1200 ºF | -65 to 1200 ºC
Technical Specs Temperature Rating For Nitrile Butadiene Rubber
-40 to 250 ºF | -40 to 120 ºC
Technical Specs Temperature Rating For Polychlorotrifluoroethyle
-65 to 1200 ºF | -53 to 93 ºC
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 450 ºF | -53 to 232 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 350 ºF | -53 to 177 ºC
Testing Testing
Each and every valve is tested with nitrogen at 1000 psig (69 bar)Valve have max allowable leak rate of 0.1 cm³/min.Shell testing is performed on demand.
