SBVF360 Series 8mm High Pressure Ball Valve
SBVF360 Series 8mm High Pressure Ball Valve
SKU:SBV-a1faa3
Reliable and durable, the SBVF360 Series 8mm High Pressure Ball Valve excels in industrial applications with its versatile design and high performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SBVF360 Series 8mm High Pressure Ball Valve
$129.99
Quantity: 1
Claim Your Seller Account
SBVF360 Series 8mm High Pressure Ball Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBVF360 Series 8mm High Pressure Ball Valve is a robust solution designed for demanding industrial applications. With a temperature rating ranging from -65 to 1200°F, this valve offers exceptional versatility. Its compact design, low operating torques, and floating ball design make it efficient and reliable. Tested to withstand 1000 psig, it ensures minimal leak rates. This valve is perfect for two-way and three-way applications, with handle direction indicating flow direction. Compliant with stringent industry standards, it offers durability and performance in high-pressure environments.
Product Specifications
Features Features
Compact DesignLow Operating TorquesPanel MountableFloating Ball DesignTwo Way and Three WayTypes Handle Direction Indicates Flow Direction
Note Note

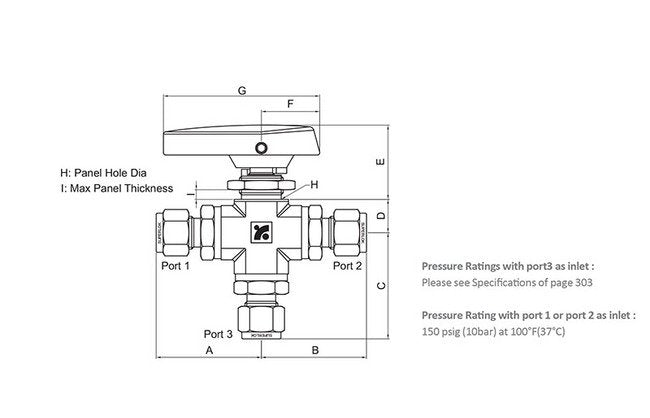

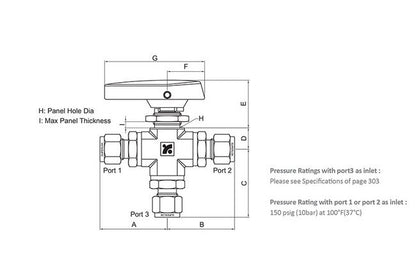

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
45.2 mm
Technical Specs Dimension B
45.2 mm
Technical Specs Dimension C
14.0 mm
Technical Specs Dimension D
14.5 mm
Technical Specs Dimension E
32.3 mm
Technical Specs Dimension F
25.4 mm
Technical Specs Dimension G
68.0 mm
Technical Specs Dimension H
19.6 mm
Technical Specs Dimension I
6.4 mm
Technical Specs End Connections
8 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
2.34
Technical Specs Orifice Size
0.25 in | 6.4 mm
Technical Specs Temperature Rating For 316 Stainless Steel With
-65 to 1200 ºF | -65 to 1200 ºC
Technical Specs Temperature Rating For Nitrile Butadiene Rubber
-40 to 250 ºF | -40 to 120 ºC
Technical Specs Temperature Rating For Polychlorotrifluoroethyle
-65 to 1200 ºF | -53 to 93 ºC
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 450 ºF | -53 to 232 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 350 ºF | -53 to 177 ºC
Testing Testing
Each and every valve is tested with nitrogen at 1000 psig (69 bar)Valve have max allowable leak rate of 0.1 cm³/min.Shell testing is performed on demand.
