SBVF360 Series High Pressure Ball Valve

SBVF360 Series High Pressure Ball Valve

SKU:SBV-cf33ec

High performance SBVF360 Series ball valve for industrial applications. Compact design, low torques, and panel-mountable. Suitable for two-way and three-way flow control.

Regular price $299.99
Regular price Sale price $299.99
Sale

Initiate Order

SBVF360 Series High Pressure Ball Valve

SBVF360 Series High Pressure Ball Valve

$299.99

Quantity: 1

Claim Your Seller Account

SBVF360 Series High Pressure Ball Valve

SBVF360 Series High Pressure Ball Valve

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

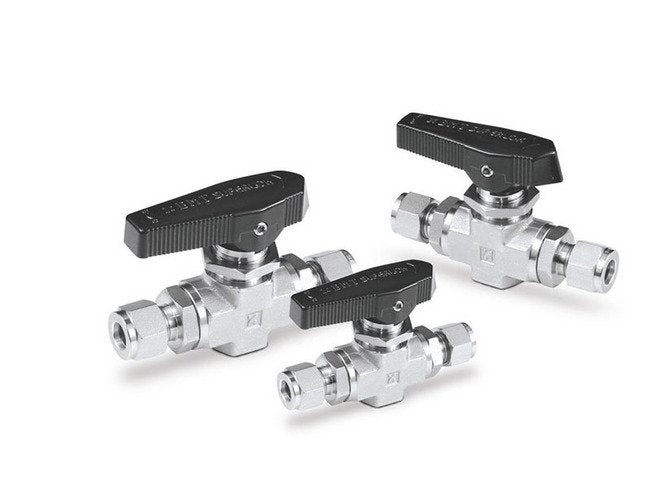

The SBVF360 Series High Pressure Ball Valve is designed for exceptional performance in demanding industrial environments. With a temperature range from -65 to 1200 ºF, this forged valve features a compact design, low operating torques, and a panel-mountable construction. Its floating ball design ensures reliable operation, and the handle direction indicates flow direction for easy use. Tested to meet stringent standards, this valve is ideal for two-way and three-way applications, offering precise flow control and durability.

Product Specifications

Features Features
Compact DesignLow Operating TorquesPanel MountableFloating Ball DesignTwo Way and Three WayTypes Handle Direction Indicates Flow Direction
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

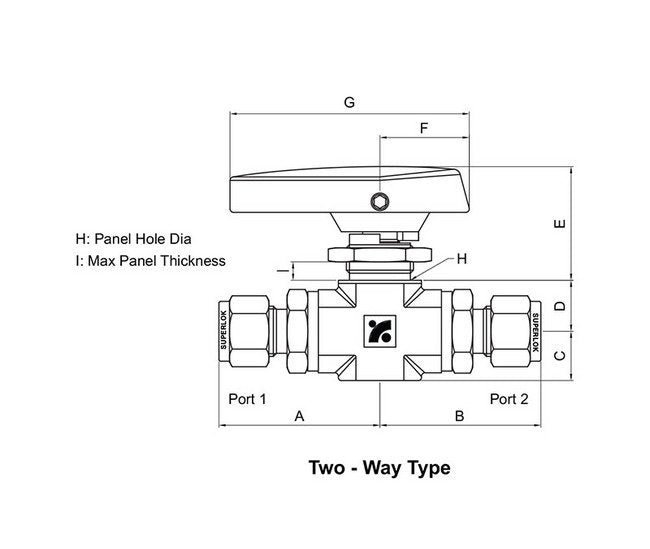

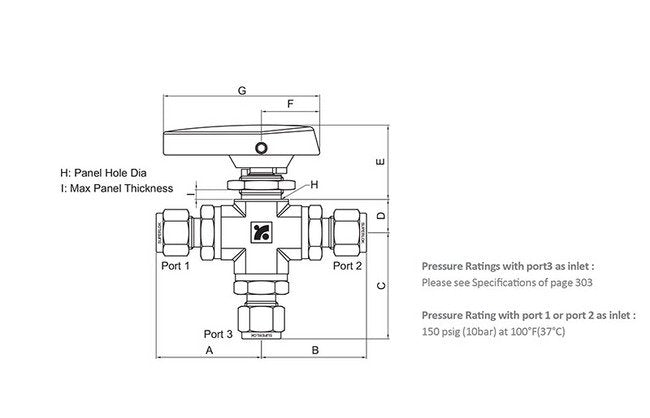

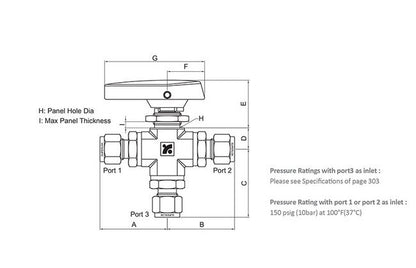

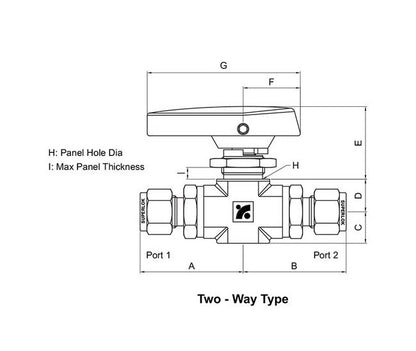

Technical Specs Dimension A
46.0 mm
Technical Specs Dimension B
46.0 mm
Technical Specs Dimension C
44.6 mm
Technical Specs Dimension D
14.5 mm
Technical Specs Dimension E
32.3 mm
Technical Specs Dimension F
25.4 mm
Technical Specs Dimension G
68.0 mm
Technical Specs Dimension H
19.6 mm
Technical Specs Dimension I
6.4 mm
Technical Specs End Connections
10 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
0.87
Technical Specs Orifice Size
0.25 in | 6.4 mm
Technical Specs Temperature Rating For 316 Stainless Steel With
-65 to 1200 ºF | -65 to 1200 ºC
Technical Specs Temperature Rating For Nitrile Butadiene Rubber
-40 to 250 ºF | -40 to 120 ºC
Technical Specs Temperature Rating For Polychlorotrifluoroethyle
-65 to 1200 ºF | -53 to 93 ºC
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 450 ºF | -53 to 232 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 350 ºF | -53 to 177 ºC
Testing Testing
Each and every valve is tested with nitrogen at 1000 psig (69 bar)Valve have max allowable leak rate of 0.1 cm³/min.Shell testing is performed on demand.
