SBVH360 High Pressure Ball Valve - 10.0mm Orifice, 1/2in MNPT
SBVH360 High Pressure Ball Valve - 10.0mm Orifice, 1/2in MNPT
SKU:SBV-fc2648
SBVH360 - High Pressure Ball Valve, 10.0mm Orifice, Compact Design, Maximum Flow Rate, Anti Blow-out Stem, Fire Safety
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SBVH360 High Pressure Ball Valve - 10.0mm Orifice, 1/2in MNPT
$89.99
Quantity: 1
Claim Your Seller Account
SBVH360 High Pressure Ball Valve - 10.0mm Orifice, 1/2in MNPT
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

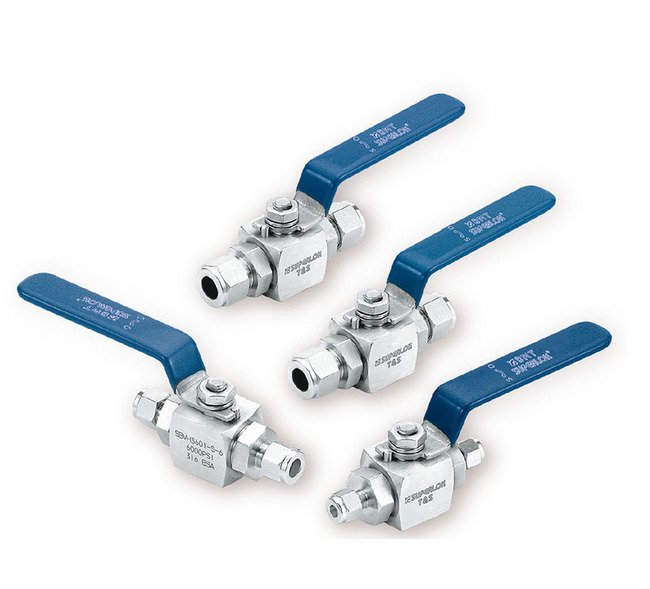

Experience superior performance with the SBVH360 Three-Piece High Pressure Ball Valve featuring a 10.0mm orifice size, 7.5 Cv flow coefficient, and 1/2in Male National Pipe Thread end connections. This high-pressure valve offers a compact design, anti blow-out stem, and fire safety features. Each valve undergoes rigorous nitrogen and hydrostatic testing, ensuring reliability and safety. Ideal for industrial applications requiring high flow rates and maximum orifice capabilities.
Product Specifications
Features Features
Compact designHigh flow rate with maximum orificeVariety of End ConnectionsAnti blow-out stem designEach and every valve is tested at the factoryFire safety design available
Note Note

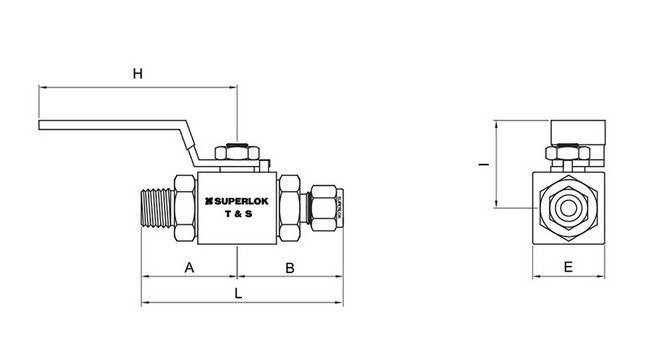

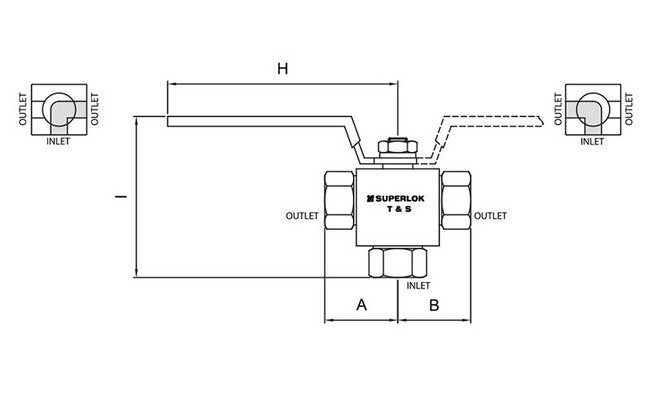

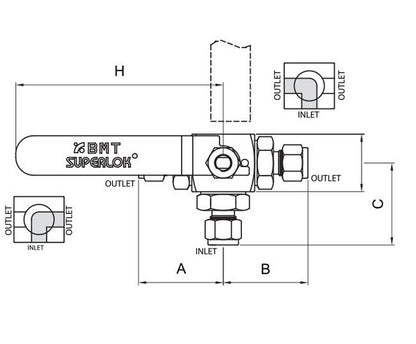

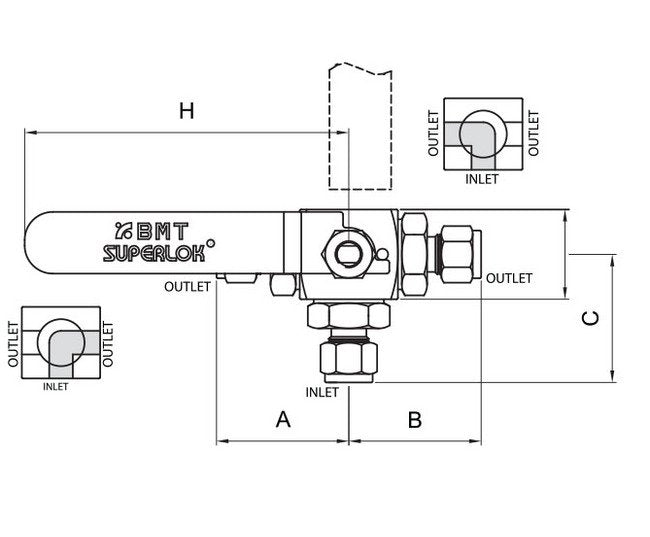

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
47.0 mm
Technical Specs Dimension B
47.0 mm
Technical Specs Dimension E
32.0 mm
Technical Specs Dimension H
115 mm
Technical Specs Dimension I
38.5 mm
Technical Specs Dimension L
94.0 mm
Technical Specs End Connections
1/2 in. Male National Pipe Thread (MNPT)
Technical Specs Flow Coefficients Cv
7.5
Technical Specs Orifice Size
10.0 mm
Testing Testing
Each Valve is tested with nitrogen at 1000 psig(69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure (Optional).
