SBVT210 Series 9.0mm Two-Piece Ball Valve with SUPERLOK® End Connections

Name: SBVT210 Series 9.0mm Two-Piece Ball Valve with SUPERLOK® End Connections
Brand: Superlok-Mako Products LLC
SKU: SBV-19d960
Price: 129.99 USD
Availability: OutOfStock

SKU:SBV-19d960

High-performance 9.0mm ball valve with SUPERLOK® end connections for reliable operation in various applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SBVT210 Series 9.0mm Two-Piece Ball Valve offers exceptional performance for a variety of applications. With a pressure rating of 1000 psig and an orifice size of 9.0mm, this valve ensures reliable operation. It features 1/2 inch SUPERLOK® end connections, compact design, low torque, and smooth operation. Tested at the factory, it guarantees quality and durability. Crafted from 316 stainless steel or brass, this valve meets stringent standards for precision and efficiency.

Product Specifications

Features Features

Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory

Note Note

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Body Material

316 Stainless Steel | Brass

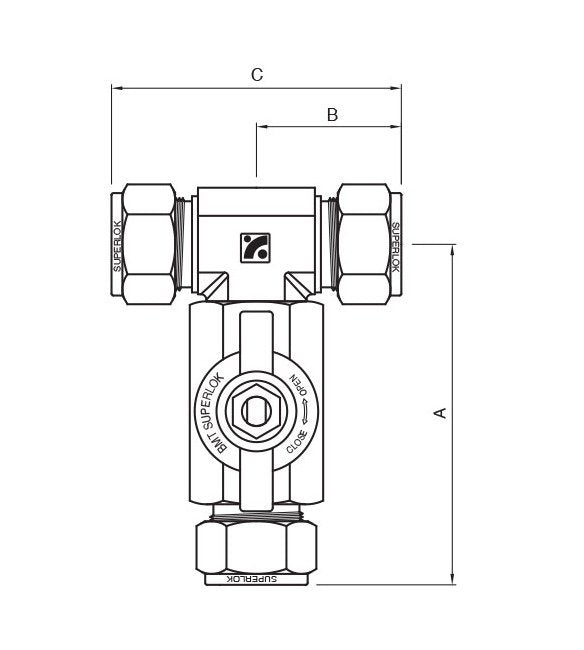

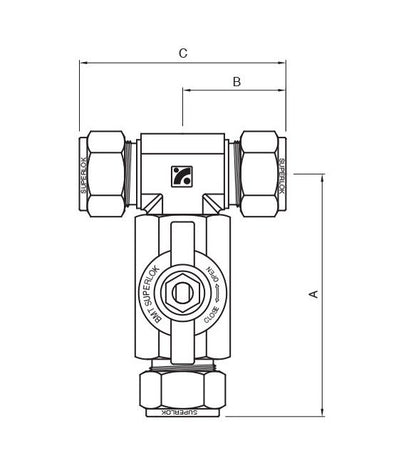

Technical Specs Dimension A

87.9 mm

Technical Specs Dimension B

38.1 mm

Technical Specs Dimension C

76.2 mm

Technical Specs End Connections

1/2 in. SUPERLOKÂ®

Technical Specs Handle

Bar Handle | Butterfly Handle (Standard)

Technical Specs Orifice Size

9.0 mm

Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg

1000 psig | 69 bar
