SC/APC Connector Fiber Optic Cable Assembly

Name: SC/APC Connector Fiber Optic Cable Assembly
Brand: Opticonx
SKU: FIB-b9d487
Price: 49.99 USD
Availability: OutOfStock

SKU:FIB-b9d487

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Opticonx, Inc. manufactures a full line of singlemode and multimode simplex, duplex, and multifiber cable assemblies. Assemblies feature singlemode and multimode OM1, OM2, OM3, OM4, and OM5 fiber. Custom lengths, fiber types, jacket colors, and connector types are available. Opticonx manufactures cable assemblies using only top-quality components, equipment, and processes resulting in product that meets or exceeds even the most demanding specifications. Our standard 15 year limited warranty ensures years of worry free service.

Product Specifications

Connector Performance Connector Type

SC/APC

Connector Performance Maximum Insertion Loss Il

0.5 dB

Connector Performance Maximum Return Loss Rl

-65 dB

Connector Performance Part Number Designator

Custom Assemblies

Bring us your requirements and we will work with you to customize a solution. From color coding jackets to nonstandard cable or connector types, Opticonx has the equipment, knowledge, and experience to meet even the most demanding applications.

Mtp Mpo Assemblies

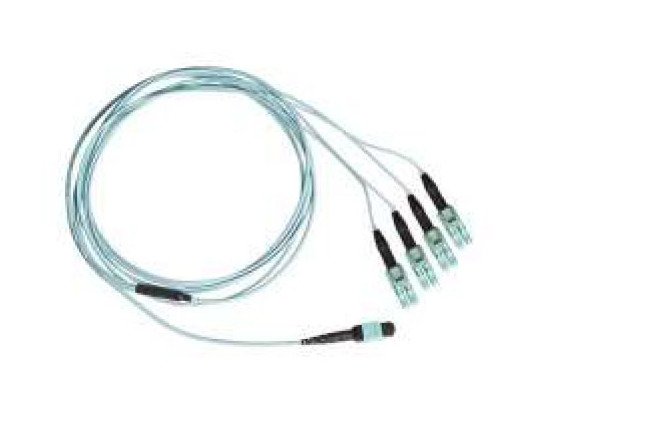

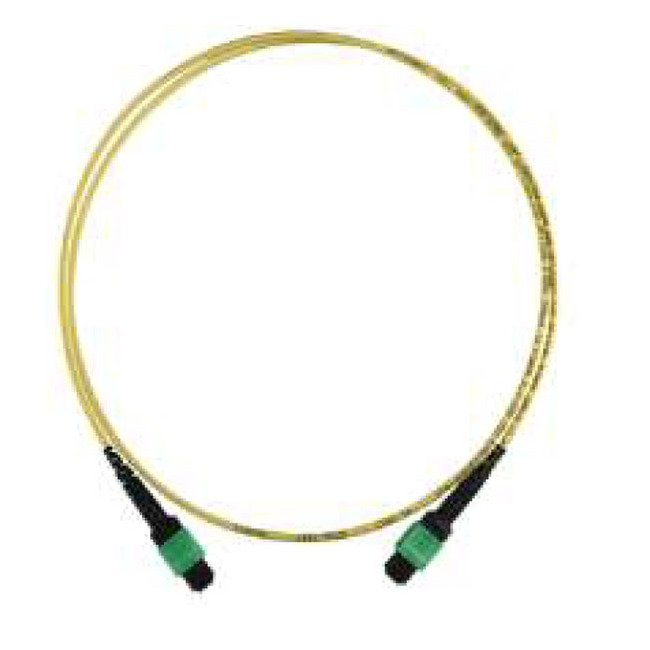

Multi-fiber assemblies terminated on one or both ends with MPO style connectors are typically utilized in pre-terminated Fiber systems and help ease and speed installation. These Assemblies are terminated in groups of 12 or 24 with a single MPO connector on one or both ends. When terminated on Both ends with an MPO style connector, it is considered a "trunk" or "backbone" cable. When terminated on one end With an MPO style connector and on the other end with Multiple single fiber connectors, it is considered a fanout Cable, or harness, and is typically used to connect to Equipment, or within a cassette as part of a preterminated Fiber system (as in Opticonx Xtreme system). MTP® is a High quality form of an MPO connector, and is a registered Trademark of USCONEC. An Xtreme cassette utilizes an MTP harness to interface between the backbone cable and the equipment. An MTP to LC harness offers direct connection between backbone and

Multi Fiber Assemblies

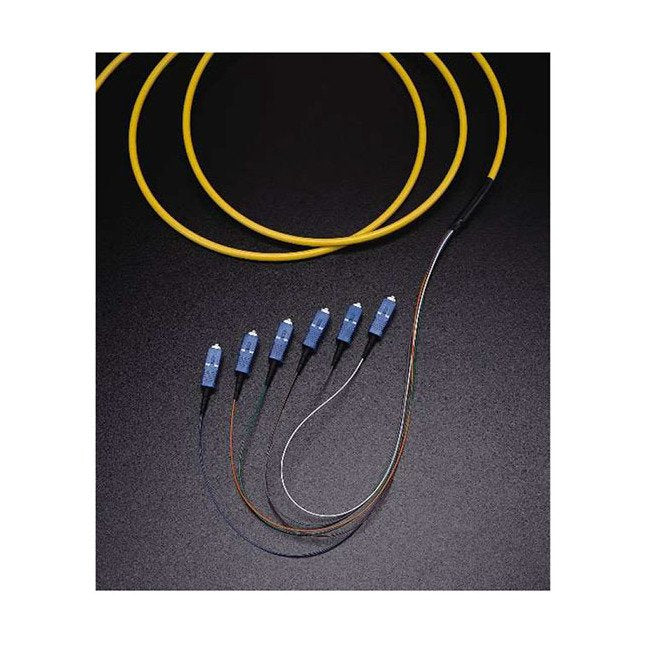

Multi-fiber cable assemblies are available in a variety of configurations and connector types. Cable types include indoor only versions and indoor/outdoor versions in UL types OFNR or OFNP, and strictly outdoor version. For added protection, the cable can be pre-installed in an aluminum interlocked armor conduit. Also included in multi-fiber assemblies are a full range of MTP® and MPO assemblies.

Packaging

Every Opticonx manufactured cable assembly is 100 percent optically inspected and tested for insertion loss and return loss. These results are available in digital format upon request. If required, interferometer results can also be included (must be spec

Patch Cords

Simplex and duplex cable assemblies, commonly referred to as patch cords, are commonly used as interconnects between equipment and fiber patch panels, or from equipment to equipment.

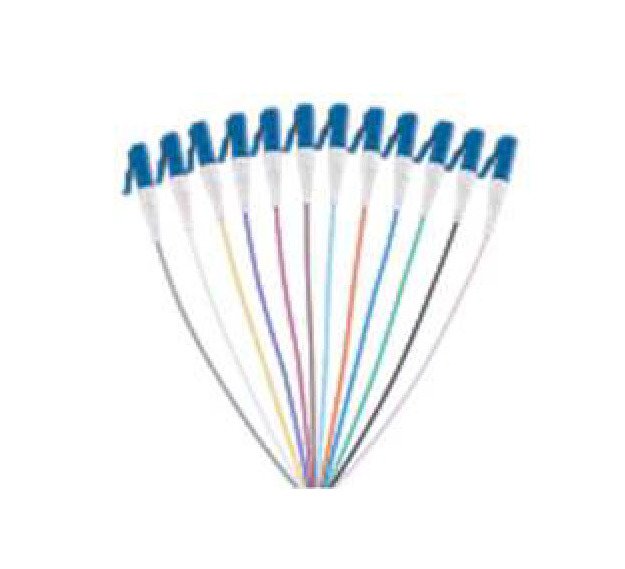

Pigtails

Simplex and duplex cable assemblies terminated on only one end are commonly referred to as pigtails. These assemblies are most often used for fusion splicing, or when terminating the second end to a device.

Quality You Can Trust

Opticonx has been manufacturing high performance cable assemblies since 1996. We use the highest quality connectors and components, and utilize state of the art equipment and techniques to produce world class standard and custom fiber assemblies. Our quality department ensures every assembly is fully tested to the latest industry standards and beyond.

Specifications Connector End A

Specifications Fiber Count

Simplex | Duplex | 6 Fiber | 12 Fiber

Specifications Fiber Type

Singlemode | OM1 | OM2 | OM3 | OM4

Specifications Jacket Length

2 mm | 2 mm uniboot | 3 mm | 3 mm uniboot | 900 μm | unspecified (6f,12f)
