SC Ball Joint Assembly

SC Ball Joint Assembly

PUS-ec14b2

Durable SC Ball Joint Assembly for light to medium-duty linkage applications, offering easy maintenance and customization options.

$24.99
$24.99
Sale

Initiate Order

SC Ball Joint Assembly

SC Ball Joint Assembly

$24.99

Quantity: 1

Claim Your Seller Account

SC Ball Joint Assembly

SC Ball Joint Assembly

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

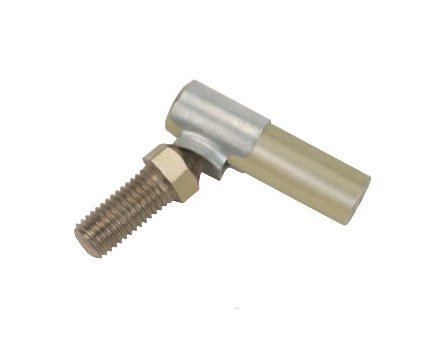

The SC Ball Joint Assembly is a versatile solution for light to medium-duty linkage applications, offering three different configurations to match your load and cost requirements. With a steel ball stud, sleeve, and body, this assembly ensures durability and optimal performance. The quick disconnect feature with spring or spring clip enables easy maintenance without the need for tools. Operating in temperatures ranging from -60 to 250 °F (-51 to 121 °C), this ball joint assembly is customizable to meet your specific size and assembly needs. Compliant with SAE J490 specification (S/SS Series), it is suitable for cable assemblies, light industrial applications, agricultural equipment, and more.

Product Specifications

Applications 0
Light to medium-duty linkage applications, including:Cable assembliesLight industrial applicationsAgricultural, lawn and garden equipmentRacing (throttle links)
Features 0
Three different configurations, all with steel ball stud, sleeve and body to match your load and cost requirementsQuick pull back, "no tools required" disconnect assembly provides easier access, faster maintenanceCan be used in a wide range of temperatures: -60 ºF - 250 ºF (-51 ºC - 121 ºC) Right and left-handed versions availableCustom sizes and assemblies can be built to your specificationsS/SS Series meets SAE J490 specification (S: type S/style 1, SS: type S/style 2)
Material 0
Ball Stud - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSleeve - Low Carbon Steel, Zinc Plated, Yellow Dichromate TreatedBody: S and SS - Low Carbon SteelBody: SC - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSpring: S and SS - Stainless SteelSpring Clip: SC - Hardened Spring Steel

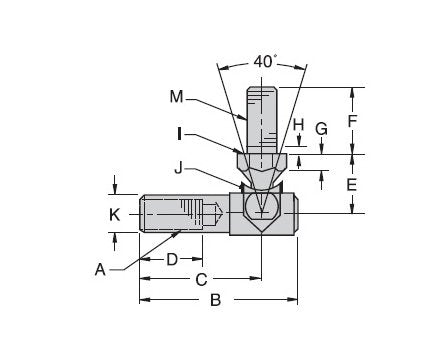

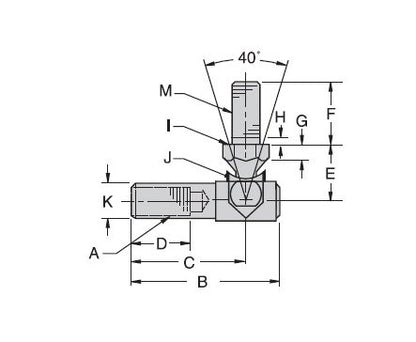

Specifications A Unf
1/4-28 "
Specifications Ball Diameter Ref
0.250 "
Specifications B 0020
1.250 "
Specifications C 0020
0.969 "
Specifications D Min
0.531 "
Specifications E 0020
0.437 "
Specifications F 0020
0.562 "
Specifications G Ref
0.125 "
Specifications H Ref
0.078 "
Specifications I Ref
0.312 "
Specifications J Ref
0.135 "
Specifications K Ref
0.312 "
Specifications M Unf
1/4-28 "
Specifications Temperature Range
-60 to 250 ºF | -51 to 121 ºC
Specifications Type
SC
CAGE
0T9L4
NAICS
332510
PSC
4030
