Scaletron Model 2305D Dual Cylinder Scale
Scaletron Model 2305D Dual Cylinder Scale
SKU:150-7196fa
Accurate, durable, and corrosion-resistant dual cylinder scale for weighing gas cylinders up to 150 lb.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Scaletron Model 2305D Dual Cylinder Scale
$699.99
Quantity: 1
Claim Your Seller Account
Scaletron Model 2305D Dual Cylinder Scale
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

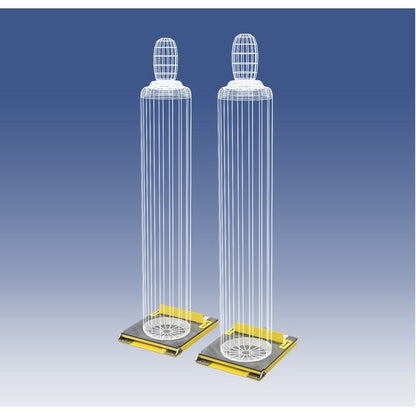

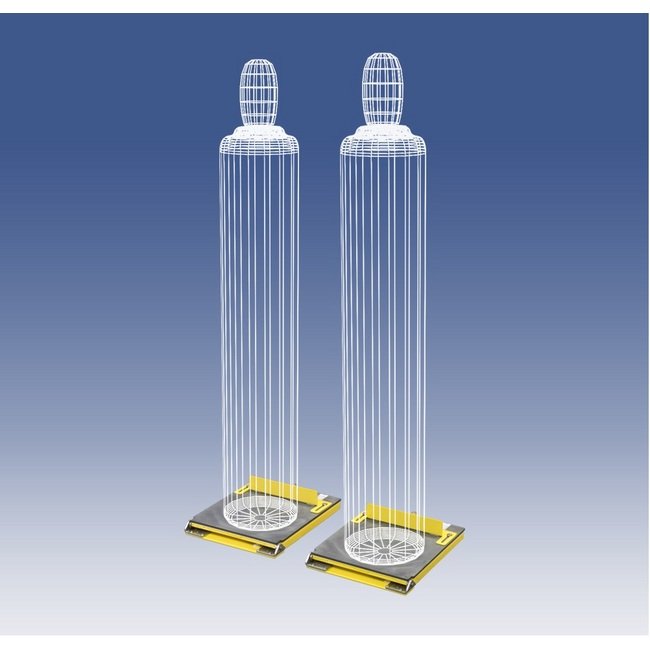

The Scaletron Model 2305D™ Economical Digital Dual Cylinder Scale is a reliable solution designed to weigh two gas cylinders simultaneously. With a capacity of up to 150 lb, this scale features a low-profile base and adjustable backstop for safe and easy handling. Made with rugged steel construction and corrosion-resistant finish, it ensures durability in harsh environments. The scale comes with two stainless steel load cells, stainless steel hardware, and an electronic indicator housed in a NEMA 4X enclosure for protection. Ideal for measuring ammonia, carbon dioxide, and more, this scale offers high accuracy and is backed by a 5-year warranty.
Product Specifications
Additional Information Additional Information
Designed for weighing cylinders up to 12" in diameterTwo independent weighing bases and digital LCD displaysHigh accuracy of ±0.25% of capacitySingle or multi-channel controllers with easy readability to 0.1 lb. (kg)
Available Controllers Available Controllers

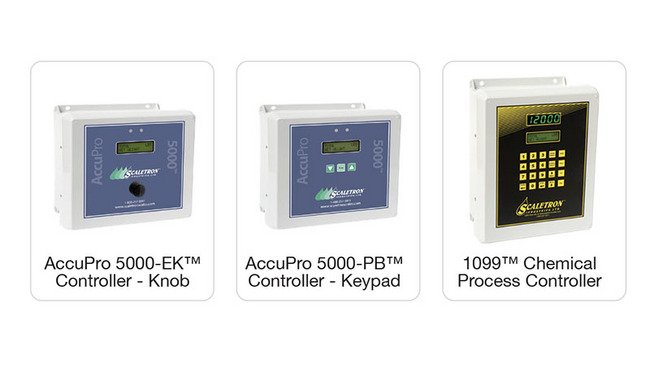

AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal - scale or loop poweredModel 1099 Chemical Process Controller with 1 to 4 channels, 20 button keypad and 4-20 mA output signal - scale or loop powered
Chemicals Chemicals
Scale is designed to accurately measure weight of ammonia, carbon dioxide, hydrogen chloride, liquefied chlorine, sulfur dioxide and other liquid gases.
Digital Controllers Digital Controllers
Part Number - ACCUPRO 5000-EKInterface - Encoder knobAccuracy - ±0.1% to ±0.25% of full scale capacityDisplay - 6 Digit alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - 1 or 2 - One scale base per channel4-20 mA - 4-20 mA Standard, 0-5 V or 0-10 V optional - 1 Output per channel, scale or loop poweredSet Points - 2 or 4 Per channel (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 7 lbs.Part Number - ACCUPRO 5000-PBInterface - Keypad with three (3) push buttonsAccuracy - ±0.1% to ±0.25% of full scale capacityDisplay - 6 Digit alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - 1 or 2 - One scale base per channel4-20 mA - 4-20 mA Standard, 0-5 V or 0-10 V optional - 1 Output per channel, scale or loop poweredSet Points - 2 or 4 Per channel (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 7 lbs.Part Number - 1099 C.P.C.Interface - 20 Button keypadAccuracy - ±0.1% to 0.25% of full scale capacityDisplay - 6 Digit LED & alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - Up to 44-20 mA - Standard on channel 1 - Loop powered (available for channels 2 thru 4)Set Points - 1 to 4 (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Optional piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 9 lbs.
Note Note
Made in USA.
Options Options
High and low level set pointsRemote mounting of indicator box up to 200 feet away

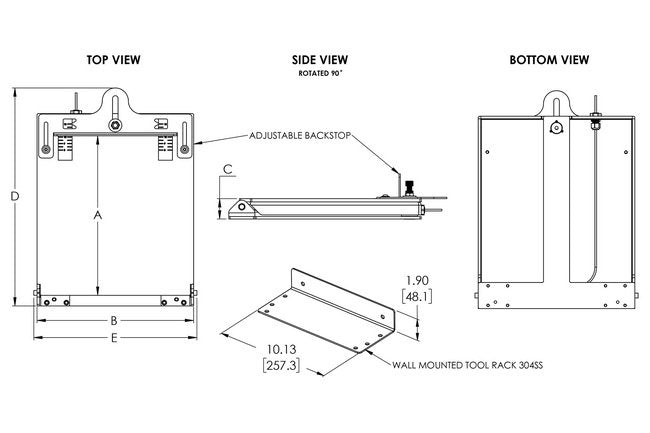

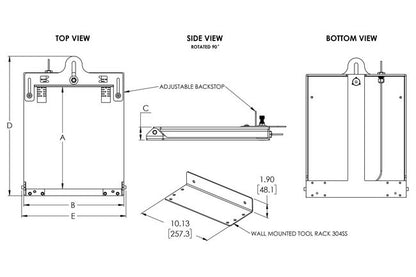

Scale Base Dimension D
16.72 in | 425 mm
Scale Base Dimension E
12.50 in | 318 mm
Scale Base Platform Height C
1.56 in | 40 mm
Scale Base Platform Length A
12.24 in | 311 mm
Scale Base Platform Width B
12.00 in | 309 mm
Scale Base Weight
46 lb
Specifications Accuracy
0.25 %
Specifications Base Length
14-3/4 in
Specifications Base Width
12-5/8 in
Specifications Cable Length
12 ft
Specifications Diameter
Up to 12 in
Specifications Net Capacity
0 to 150 lb | 68 kg | 70 kg
Specifications Number Of Conductors
4
Specifications Output Signal Voltage
0 to 10 V | 0 to 5 V
Specifications Warranty
5 Years Full Warranty on All Scale Products
Specifications Weighing Properties Readout
Gallons (g) | Kilograms (kg) | Liters (L) | Pounds (lb)
Standard Features Standard Features
Rugged steel construction protected by a corrosion resistant, zinc oxide primed and dry powder epoxy coated finish, with solid 1/4" PVC decking for use in harsh environmentsLow profile platform (1.56") design increases safety and ease of cylinder handlingDesigned for centered loads - includes heavy-duty steel backstop with measuring guides to help position the cylinderTwo (2) stainless steel, temperature compensated button load cellAll hardware is stainless steel to prevent corrosionMounting holes for securing base frame to floorElectronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids12 ft. of 4 conductor wire cableCylinder support with tool rack and chains
