Scaletron Model 3000 Digital Ton Cylinder Scales
Scaletron Model 3000 Digital Ton Cylinder Scales
SKU:TON-e93028
Accurate and durable digital ton cylinder scales for industrial use. Single load cell design, corrosion-resistant finish, and NTEP stainless steel load cell for reliability.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Scaletron Model 3000 Digital Ton Cylinder Scales
$1,899.99
Quantity: 1
Claim Your Seller Account
Scaletron Model 3000 Digital Ton Cylinder Scales
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

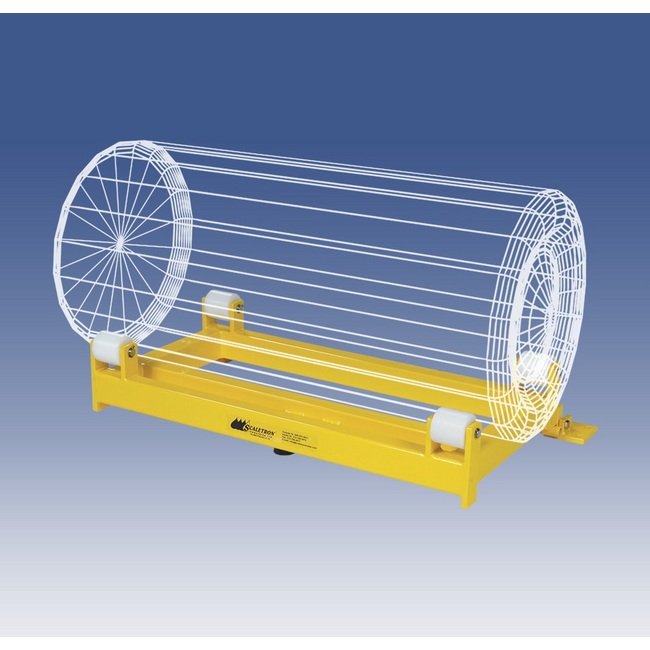

The Scaletron Model 3000™ Digital Ton Cylinder Scales are precision-engineered to provide accurate weighing of standard ton cylinders ranging from 22" to 39" in diameter. With a single load cell design, this rugged scale features a low-profile base for safe handling. The corrosion-resistant dry powder epoxy finish ensures durability, while the NTEP stainless steel load cell and electronic indicator offer reliable performance. Packed with features like UHMW polyethylene rollers and options for high and low level set points, these scales are designed for high-volume operations in industrial settings.
Product Specifications
Additional Information Additional Information
High accuracy of ±0.25% of capacitySingle or multi-channel controllers with easy readability to 0.1 lb. (kg)1 to 6 Bases may be summed together into one indicator

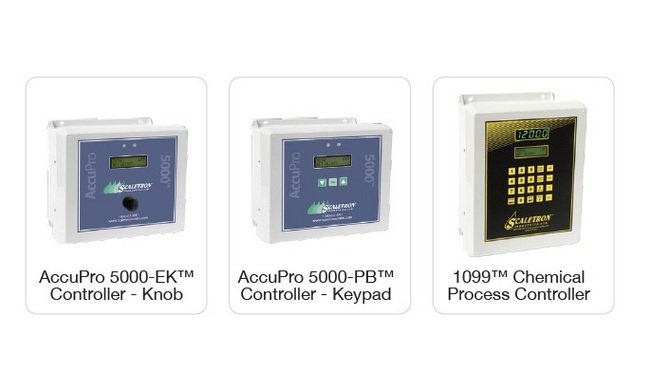

Available Controllers Available Controllers
AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal - scale or loop poweredModel 1099 Chemical Process Controller with 1 to 4 channels, 20 button keypad and 4-20 mA output signal - scale or loop powered
Chemicals Chemicals
Scale is designed to accurately measure weight of ammonia, carbon dioxide, hydrogen chloride, liquefied chlorine, sulfur dioxide and other liquid gases.
Digital Controllers Digital Controllers
Part Number - ACCUPRO 5000-EKInterface - Encoder knobAccuracy - ±0.1% to ±0.25% of full scale capacityDisplay - 6 Digit alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - 1 or 2 - One scale base per channel4-20 mA - 4-20 mA Standard, 0-5 V or 0-10 V optional - 1 Output per channel, scale or loop poweredSet Points - 2 or 4 Per channel (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 7 lbs.Part Number - ACCUPRO 5000-PBInterface - Keypad with three (3) push buttonsAccuracy - ±0.1% to ±0.25% of full scale capacityDisplay - 6 Digit alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - 1 or 2 - One scale base per channel4-20 mA - 4-20 mA Standard, 0-5 V or 0-10 V optional - 1 Output per channel, scale or loop poweredSet Points - 2 or 4 Per channel (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 7 lbs.Part Number - 1099 C.P.C.Interface - 20 Button keypadAccuracy - ±0.1% to 0.25% of full scale capacityDisplay - 6 Digit LED & alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - Up to 44-20 mA - Standard on channel 1 - Loop powered (available for channels 2 thru 4)Set Points - 1 to 4 (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Optional piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 9 lbs.
Note Note
Made in USA.
Options Options
High and low level set pointsRemote mounting of indicator box up to 200 feet awayCylinder restraining straps

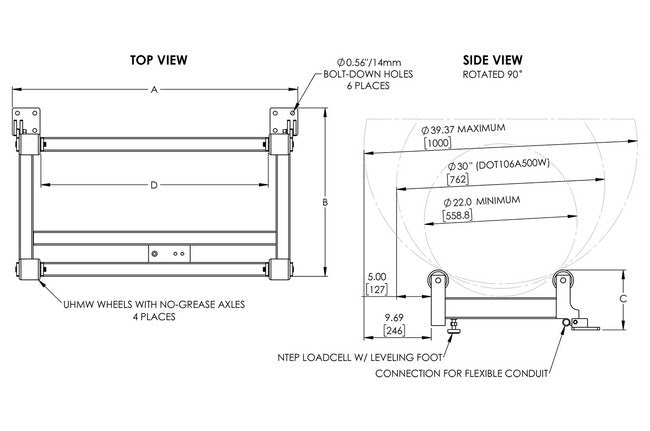

Scale Base Dimension D
32.75 in | 832 mm
Scale Base Net Capacity
0 to 2000 lb | 907 kg | 1000 kg
Scale Base Platform Height C
8.63 in | 219 mm
Scale Base Platform Length A
41.13 in | 1045 mm
Scale Base Platform Width B
24.25 in | 616 mm
Scale Base Weight
110 lb
Specifications Accuracy
0.25 %
Specifications Cable Length
20 ft
Specifications Diameter
22 to 39 in
Specifications Number Of Conductors
4
Specifications Output Signal Voltage
0 to 10 V | 0 to 5 V
Specifications Standard Base Length
42-1/2 in
Specifications Standard Base Width
24-1/4 in
Specifications Warranty
5 Years Full Warranty on All Scale Products
Specifications Weighing Properties Readout
Gallons (g) | Kilograms (kg) | Liters (L) | Pounds (lb)
Standard Features Standard Features
Rugged steel construction protected by a corrosion resistant dry powder epoxy finishLow profile platform design (8.63") increases safety and ease of cylinder handlingTrunnions with solid UHMW polyethylene rollers on stainless steel axles for ease of turningNTEP stainless steel shear beam, temperature compensated load cell with built-in mechanical overload stop to protect it from damage during rough cylinder loadingElectronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids20 ft. of 4 conductor wire cable
