Scaletron Model 3050 Ton Cylinder Scale Conversion Kit
Scaletron Model 3050 Ton Cylinder Scale Conversion Kit
SKU:TON-ef72d5
Upgrade old hydraulic ton bases with precision & corrosion resistance. High accuracy & reliable measurements. Ideal for chemicals. 5-year warranty.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Scaletron Model 3050 Ton Cylinder Scale Conversion Kit
$1,299.99
Quantity: 1
Claim Your Seller Account
Scaletron Model 3050 Ton Cylinder Scale Conversion Kit
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your old hydraulic ton bases with the Scaletron Model 3050 Ton Cylinder Scale Conversion Kits, setting a new standard in corrosion resistance. This conversion kit features high accuracy at ±0.5% of capacity, a 4-1/2 digit LCD display, and the ability to sum up to 6 platforms. With NTEP stainless steel load cells, adjustable low level alarm relay contacts, and durable construction, this kit ensures precise and reliable weight measurements. Ideal for measuring various chemicals, this kit comes with a 5-year full warranty, providing peace of mind for institutional and government buyers.
Product Specifications
Chemicals Chemicals
Scale is designed to accurately measure weight of alum, ammonia, caustic, fluoride, phosphate, polymers, sodium aluminate, sodium bisulfate, sodium hydroxide, sodium hypochlorite and other liquids or powders.
Digital Controllers Digital Controllers

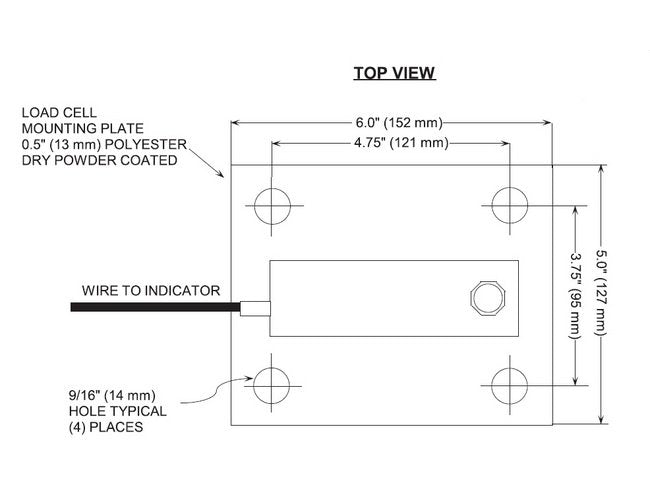

Indicator/Controller - 4-1/2 DigitPlatform Size - 6" (152 mm) length x 5" (127 mm) widthPlatform Height - 3 inch (76.1 mm) from floor to top of load cell button - ADJUSTABLEGross Capacity - Up to 4000 lbs. (1814 kg) for each ton base - (150% overload protection is provided)Accuracy - 0.5% of full capacityResolution - 0.1 up to 999.9, or 1.0 over 1000 lbs. (kg)4-20 mA - Standard on Channel 1, optional on Channel 2 - loop poweredLevel Indication/Relay Contacts - (2) StandardPower - 120 VAC, 50/60 Hz, 0.3 A and 240 VAC, 50/60 Hz, 0.15 AEnclosure - NEMA 4X, UL Approved EnclosureShipping Weight - 110 lbs.Indicator/Controller - 1020â¢Platform Size - 6" (152 mm) length x 5" (127 mm) widthPlatform Height - 3 inch (76.1 mm) from floor to top of load cell button â ADJUSTABLEGross Capacity - Up to 4000 lbs. (1814 kg) for each ton base - (150% overload protection is provided)Accuracy - 0.5% of full capacityResolution - 0.1 up to 999.9, or 1.0 over 1000 lbs. (kg)4-20 mA - Standard on Channel 1, optional on Channel 2 - loop poweredLevel Indication/Relay Contacts - (2) StandardPower - 85 VAC to 265 VACEnclosure - NEMA 4X, UL Approved EnclosureShipping Weight - 110 lbs.Indicator/Controller - 1099â¢C.P.C.Platform Size - 6" (152 mm) length x 5" (127 mm) widthPlatform Height - 3 inch (76.1 mm) from floor to top of load cell button â ADJUSTABLEGross Capacity - Up to 4000 lbs. (1814 kg) for each ton base - (150% overload protection is provided)Accuracy - 0.1%-0.25% full capacityResolution - 0.1 up to 999.9, or 1.0 over 1000 lbs. (kg)4-20 mA - Standard on Channel 1- loop powered (available for Channels 2 thru 4)Level Indication/Relay Contacts - Optional - Up to 4 (as high or low) on one channel or more than one per channel for a total of 4 set points with relay contractPower - 85 VAC to 265 VACEnclosure - NEMA 4X, UL Approved EnclosureShipping Weight - 110 lbs.
Options Options

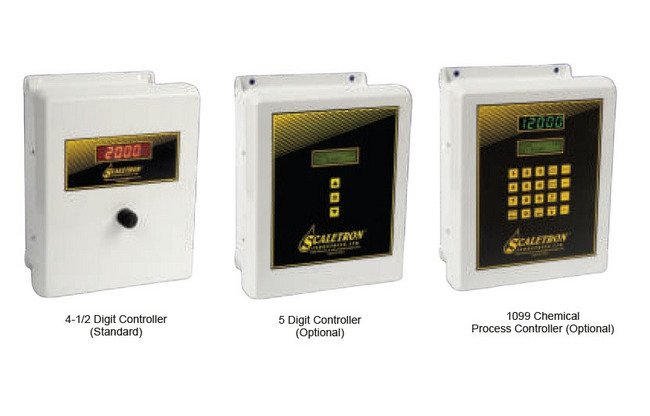

240 VAC power (4-1/2 digit display)4-1/2 digit display with active and passive 4-20 mA, 0-20 mA, and -8 to +12 mA, and two adjustable low level contacts Model 1020⢠5 digit controller with loop powered 4-20 mA, up to four adjustable set points and one or two channels Model 1099⢠Chemical Process Controller Remote mounting of indicator box up to 200 feet (61 meters) away Junction box - Additional length of wire cable
Specifications Accuracy
0.5 %
Specifications Alternating Current Ac Voltage
240 V
Specifications Cable Length
20 ft
Specifications Gross Capacity Range Per Base
0 to 4000 lb | 1814 kg
Specifications Industry Standards
European Conformity (CE)
Specifications Number Of Conductors
4
Specifications Output Current
0 to 20 mA | 4 to 20 mA | -8 to +12 mA
Specifications Plate Size
6 x 5 in
Specifications Warranty
5 Years Full Warranty on All Products!
Specifications Weighing Properties Readout
Kilograms (kg) | Pounds (lb)
Standard Features Standard Features

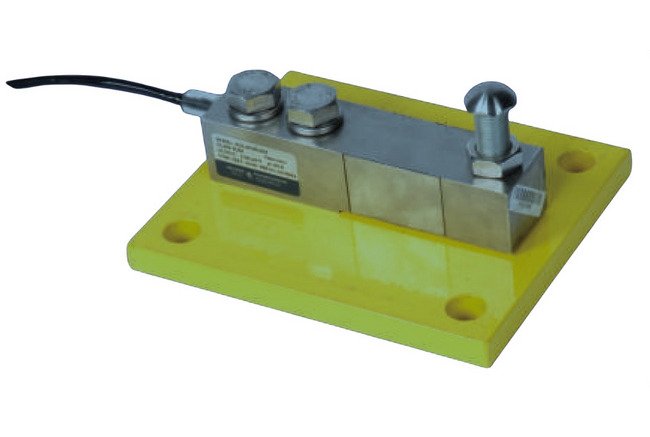

Rugged steel construction protected by a corrosion resistant finishScale conversion plate and indicatorElectronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acidsNTEP stainless steel temperature compensated load cellSelf-locking tare adjustment knob4-20 mA, 0-20 mA and -8 to +12 mA outputs scale or loop powered2 Low level alarm relay contacts20 ft. of 4 conductor wire cable
Specifications Specifications
The load cell must be adjustable in height so conversion does not require alteration of existing frame. There must be a means to level the frame built into the conversion kit. The load cell must be NTEP approved Stainless Steel shear beam cell with a built-in mechanical overload stop to protect it from damage during rough cylinder loading. The load cell mount must be dry powder polyester plastic coated to provide protection from the harsh environment. The standard indicator must be electronic with a digital readout and housed in a NEMA 4x, UL approved fiberglass box. There shall be 4-20 mA, 0-20 mA and -8 to +12 mA output signals selectable as scale or loop powered to provide versatility to interface with related equipment. An adjustable low level contact closure is also required.Scale shall be a Model 3050⢠as manufactured by Scaletron⢠Industries Ltd., Plumsteadville, PA.Standard Indicator:4-1/2 Digit LED indicator: Indicator must be electronic with digital display with characters 0.56 inches high and housed in a NEMA 4X, UL approved enclosure. An output of 4-20 mA, 0-20 mA, or -8 to + 12 mA, selectable as scale or loop powered to provide versatility to interface with related equipment, must be standard equipment. Indicator comes with two low level relay contacts, standard. A knob to set tare weights is required. Indicator must be capable of 0.1 lb. or 0.1 kg up to 1000.0 lbs. or kg. Accuracy is 0.5% of full scale, or better.Optional Indicators:Model 1020⢠5 Digit Controller: Controller must be electronic with a two line, backlit alphanumeric digital display and housed in a NEMA 4X, UL approved enclosure. Available as single or dual channel and capable of displaying two channels simultaneously. A loop powered programmable output of 4-20 mA and four set points per channel must be standard equipment. Indicator must be capable of 0.1 lb. or 0.1 kg up to 4000 lbs. or 1814 kg. Accuracy is 0.25% of full scale, or better.
