Scaletron Model 4042-63 IBC Spill Containment Tote Scales
Scaletron Model 4042-63 IBC Spill Containment Tote Scales
SKU:IBC-e93fe7
Rugged and accurate Scaletron 4042-63 IBC Spill Containment Tote Scales for precise weighing of intermediate bulk containers.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Scaletron Model 4042-63 IBC Spill Containment Tote Scales
$2,999.99
Quantity: 1
Claim Your Seller Account
Scaletron Model 4042-63 IBC Spill Containment Tote Scales
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

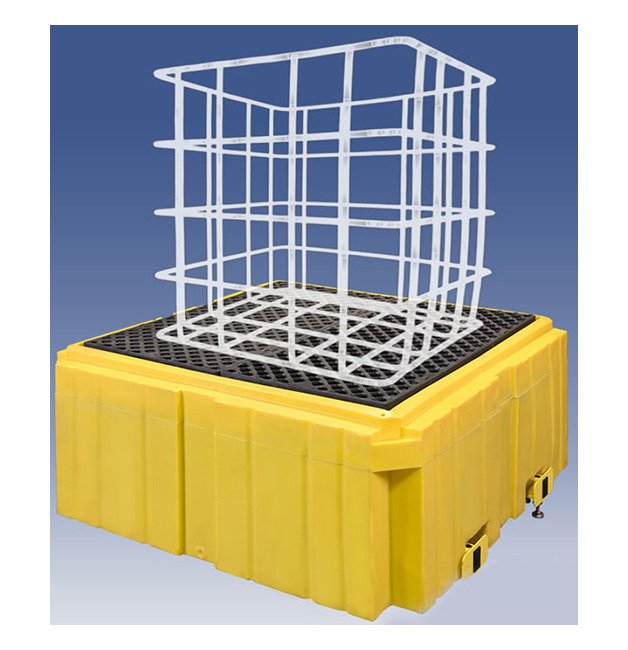

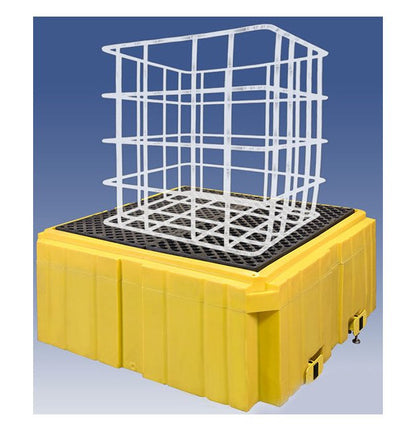

The Scaletron Model 4042-63 IBC Spill Containment Tote Scales are designed for precise weighing of intermediate bulk containers. With a rugged steel construction and corrosion-resistant finish, these scales offer high capacity and accurate measurements for large volume spill protection. Featuring a four-load cell design and a National Electrical Manufacturer Association 4X enclosure, these scales are ideal for industrial applications requiring durability and reliability. Accommodating off-center loads and equipped with stainless steel load cells, these scales ensure accurate measurements in harsh environments. Additionally, the AccuPro 5000 Digital Controller provides advanced functionality with multiple channels, set points, and remote mounting options.
Product Specifications
Additional Information Additional Information
Accurately weighs the net remaining chemical that has NOT been dispensed into water treatment system including splashes and small spills that are contained within basinSingle or multi-channel controllers with easy readability to 0.1 lb. (kg)
Available Controllers Available Controllers

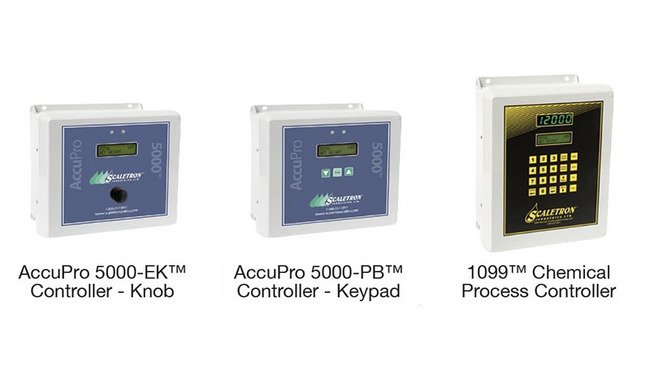

AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal - scale or loop poweredModel 1099 Chemical Process Controller with 1 to 4 channels, 20 button keypad and 4-20 mA output signal - scale or loop powered
Chemicals Chemicals
Scale is designed to accurately measure weight of alum, ammonia, caustic, fluoride, phosphate, polymers, sodium aluminate, sodium bisulfate, sodium hydroxide, sodium hypochlorite and other liquids or powders
Digital Controllers Digital Controllers
Part Number - ACCUPRO 5000-EKInterface - Encoder knobAccuracy - ±0.1% to ±0.25% of full scale capacityDisplay - 6 Digit alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - 1 or 2 - One scale base per channel4-20 mA - 4-20 mA Standard, 0-5 V or 0-10 V optional - 1 Output per channel, scale or loop poweredSet Points - 2 or 4 Per channel (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 7 lbs.Part Number - ACCUPRO 5000-PBInterface - Keypad with three (3) push buttonsAccuracy - ±0.1% to ±0.25% of full scale capacityDisplay - 6 Digit alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - 1 or 2 - One scale base per channel4-20 mA - 4-20 mA Standard, 0-5 V or 0-10 V optional - 1 Output per channel, scale or loop poweredSet Points - 2 or 4 Per channel (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 7 lbs.Part Number - 1099 C.P.C.Interface - 20 Button keypadAccuracy - ±0.1% to 0.25% of full scale capacityDisplay - 6 Digit LED & alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - Up to 44-20 mA - Standard on channel 1 - Loop powered (available for channels 2 thru 4)Set Points - 1 to 4 (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Optional piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 9 lbs.
Note Note
Patented - Made in USA.
Options Options
High and low level set pointsRemote mounting of indicator box up to 200 feet away

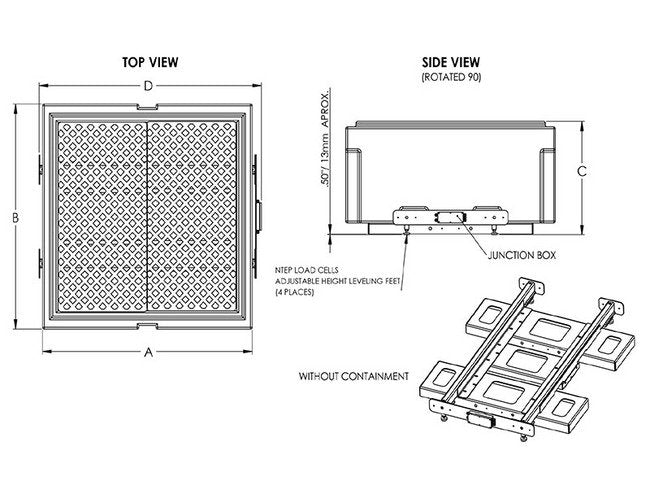

Scale Base Containment Capacity
360 gal
Scale Base Dimension D
65.75 in | 1670 mm
Scale Base Net Capacity
0 to 8000 lb | 0 to 3629 kg
Scale Base Platform Height C
31.5 in | 800 mm
Scale Base Platform Length A
62.00 in | 1575 mm
Scale Base Platform Width B
62.00 in | 1575 mm
Scale Base Weight
570 lb
Specifications Accuracy
0.1 %
Specifications Conductor Wire Cable Size
20 ft
Specifications Enclosure
National Electrical Manufacturer Association (NEMA) 4X | Underwriters Laboratories (UL) Approved
Specifications Intended Application
Intermediate Bulk Containers (IBC)
Specifications Number Of Conductors
4
Specifications Output Current
4 to 20 mA
Specifications Output Signal Voltage
0 to 10 V | 0 to 5 V
Specifications Standard Base Sizes
63 x 63 in
Specifications Warranty
5 Year Full Warranty on All Products
Specifications Weighing Properties Readout
Gallons | Kilograms | Liters | Pounds
Standard Features Standard Features
Rugged steel construction protected by a corrosion resistant, zinc oxide primed and dry powder epoxy coated finish, with polyethylene deck and containment basin for use in harsh environmentsAccommodates off-center loads - totes can be placed anywhere on the containment platform and do not need to be leveledFour (4) NTEP stainless steel shear beam, temperature compensated load cells with stainless steel leveling feet Load cells are mounted outside of spill containment basin to eliminate damage due to chemical spillsAll hardware is stainless steel to prevent corrosionElectronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids
