Scaletron Model VMF-90A Volumetric Screw Feeder
Scaletron Model VMF-90A Volumetric Screw Feeder
SKU:VOL-7dc73d
Precision, durability, and corrosion resistance define the Scaletron Model VMF-90A Volumetric Screw Feeder for water, wastewater, and chemical applications.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Scaletron Model VMF-90A Volumetric Screw Feeder
$5,999.99
Quantity: 1
Claim Your Seller Account
Scaletron Model VMF-90A Volumetric Screw Feeder
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

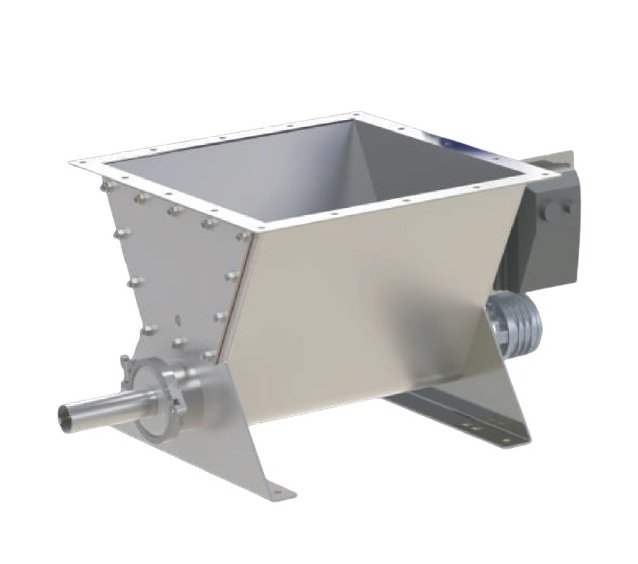

The Scaletron Model VMF-90A Volumetric Screw Feeder sets the standard in corrosion resistance for automatic metering of powdered or pelletized materials. Ideal for water, wastewater, and chemical processing applications, this feeder features a heavy-duty gear-driven auger metering mechanism. With a 1.5 ft³ hopper capacity, feed rates ranging from 0.07 to 10.19 ft³ per hour, and 1% volume accuracy, it offers precision and reliability. Equipped with a range of controls, optional features like vibratory agitators, and 316 stainless steel construction, this feeder ensures efficient material dispensing and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Built-in hopper capacity of 1.5 cu. ft.Accuracy of within 1% of volumeOptional "Loss in Weight" measurement system
Note Note

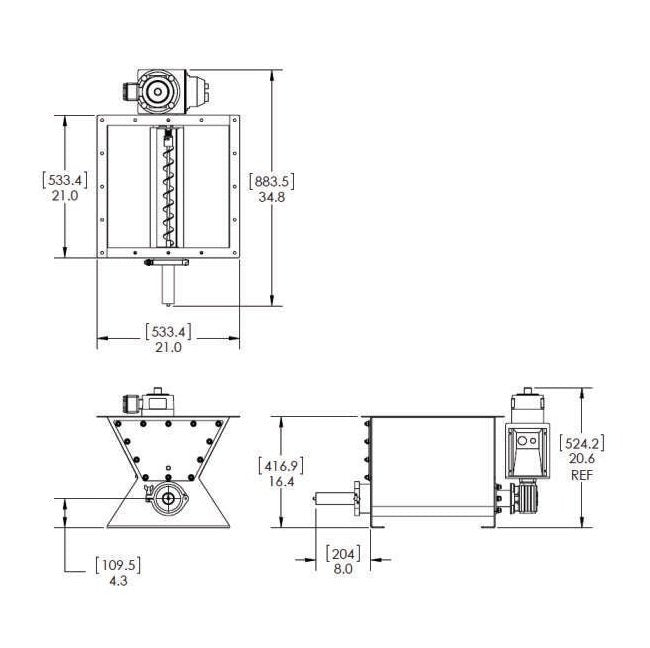

Unless Otherwise Specified Dimension Will Change Depending Upon Application
Options Options
Integrated "Loss of Weight" measurement system with 4 load cells and scale controller316 Stainless steel constructionHopper extensions and lift-off coversSingle and bulk bag loadersSCADA programmable and HMI PLC touch screen motor controllersWashguard® and explosion proof motorsMixing tanks, wetting cones and eductorsElectric or pneumatic vibratory agitatorsDust collectors, feeder stands and leveling feet
Power Alternating Current Ac Voltage
115 V
Power Current
4 A
Power Frequency
50 Hz | 60 Hz
Specifications Accuracy
1% of volume
Specifications Ambient Temperature Limit
10 to 40 ºC
Specifications Available Motors
Explosion proof - 1/2 HP motor and gearing | Washguard® - 1/2 HP motor and gearing
Specifications Controls
Variable speed DC NEMA 4X, SCR motor control (SCADA programmable and HMI PLC touch screen controllers available)
Specifications Control Input Current
4 to 20 mA
Specifications Direct Current Dc Voltage
90 V
Specifications Feed Rate Per Hour
0.07 to 10.19 ft³
Specifications Feed Screw
0.50", 0.75" or 1.5" diameter solid auger in 304 or 316 stainless steel
Specifications Hopper Capacity
1.5 ft³
Specifications Industry Standards
European Conformity (CE) | National Electrical Manufacturer Association (NEMA) 4X
Specifications Motor Type
Right-angle geared, TENV 90 VDC, wash down motor 1/2 HP, 83 RPM
Specifications Optional Vibratory Agitator
Electric Styles | Pneumatic Styles
Specifications Overwind Helix
304 Stainless Steel | 316 Stainless Steel
Specifications Warranty
2 Year Full Warranty on All Feeders
Standard Features Standard Features
Rugged, corrosion resistant stainless steel frameBuilt-in stainless steel gravity fed hopper with integrated load cell attachment pointConcentric helical overwind augerStainless steel 0.50", 0.75" or 1.5" diameter solid auger with "bayonet" style connectionMechanical, cam actuated hopper agitator/material conditionerWater and dust proof NEMA 4X, variable speed motor controller capable of remote installation90 VDC right-angle geared, wash down motor
Specifications Specifications
The Volumetric Screw Feeder must have rugged stainless steel frame. The feeder shall include a heavy-duty, gear driven auger metering mechanism with a stainless steel auger, concentric helical overwind auger and built-in stainless steel gravity fed hopper. All hardware shall be stainless steel. A water and dust proof variable speed control must be capable of remote installation and housed in NEMA 4X, UL approved enclosure. Auger shall be powered by a 1/2 HP DC motor and have integrated mechanical cam actuated hopper agitator/material conditioner.Scale shall be a Model VMF-90A⢠as manufactured by Scaletron⢠Industries Ltd., Plumsteadville, PA.Options for "Loss of Weight System":The optional âLoss of Weightâ measurement system shall include four (4) NTEP approved stainless steel shear beam cells and stainless steel leveling bolts. A variety of scale indicators and controllers are available.
