Scaletron Model VMF-90E Volumetric Screw Feeder with Mixing Tank
Scaletron Model VMF-90E Volumetric Screw Feeder with Mixing Tank
SKU:VOL-da3351
Accurate and durable Volumetric Screw Feeder with Mixing Tank for water, wastewater, and chemical processing applications. Optional gravimetric feeding. 2-year warranty.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Scaletron Model VMF-90E Volumetric Screw Feeder with Mixing Tank
$5,999.99
Quantity: 1
Claim Your Seller Account
Scaletron Model VMF-90E Volumetric Screw Feeder with Mixing Tank
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

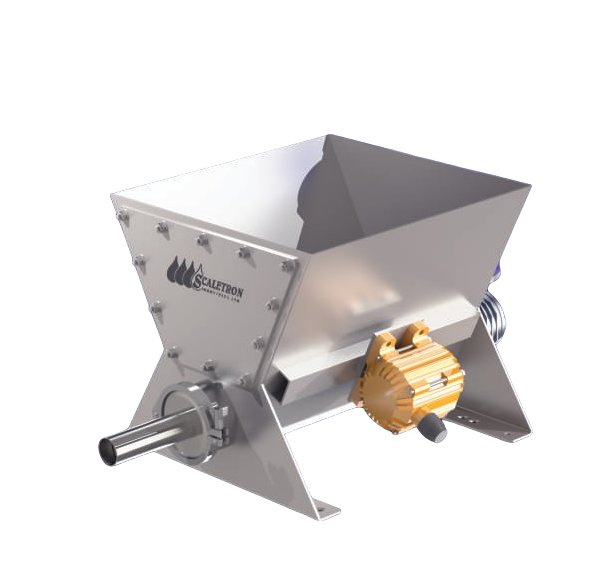

The Scaletron Model VMF-90E Volumetric Screw Feeder with Mixing Tank is a robust solution designed for accurate metering and dispensing of dry polymers in water, wastewater, and chemical processing applications. Constructed with carbon steel featuring a corrosion-resistant zinc oxide primed coating, this feeder offers superior durability. It includes a heavy-duty gear-driven auger, a 3.6 cu. ft. hopper, and precision controls for feed rate accuracy. With optional gravimetric feeding capability and a 2-year warranty, this feeder is a reliable choice for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Chemicals Chemicals
Feeder and scale are designed to accurately dispense:Aluminum sulfate (alum), calcium hydroxide (hydrated lime), carbon, ferric and ferrous sulfate, magnesium hydroxide, polymers, potassium, soda ash, sodium sulfite and thiosulfate, and other dry powders or pelletized materials
Options Options
Integrated "Loss in Weight" measurement system with four (4) load cells and Model 1020-1 5 Digit Scale ControllerAll 304 stainless steel construction (except feeder stand and base)Explosion proof motorPneumatic vibratory agitator50 or 75 Gal. solution mixing tankSingle bag loader (carbon steel or 304 stainless)Removable lids (carbon steel or 304 stainless)Adapter lids (carbon steel or 304 stainless)Programmable controller module stand
Power Alternating Current Ac Voltage
115 V | 230 V
Power Current
4 A
Power Frequency
50 Hz | 60 Hz
Specifications Accuracy
1% of volume
Specifications Ambient Temperature Limit
10 to 40 ºC
Specifications Available Motors
Explosion proof - 1/2 HP motor and gearing
Specifications Construction
Carbon steel with corrosion resistant zinc oxide primed, dry powder epoxy coating - 304 stainless steel optional (except feeder stand and base)
Specifications Controls
Adjustable, SCR motor controller in water and dust proof NEMA 4X stainless enclosure
Specifications Control Input Current
4 to 20 mA
Specifications Direct Current Dc Voltage
90 V
Specifications Feed Rate Per Hour
1.02 to 10.19 ft³
Specifications Feed Screw
1.5" diameter open helix feed screw in 304 stainless steel
Specifications Hopper Capacity
3.6 ft³
Specifications Industry Standards
European Conformity (CE)
Specifications Mixing Tank
35, 50 or 75 Gal. with mixer motor and propeller
Specifications Motor Type
Right-angle geared, TENV 90 VDC, Washguard® motor 1/2 HP, 83 RPM
Specifications Optional Vibratory Agitator
Electric (Pneumatic is optional)
Specifications Overwind Helix
Concentric overwind material conditioning auger in 304 stainless steel
Specifications Warranty
2 Year Full Warranty on All Feeders
Standard Features Standard Features
Rugged, carbon steel construction with corrosion resistant zinc oxide primed, dry powder epoxy coatingBuilt-in 3.6 cu. ft. gravity fed hopper with maintenance access hatch and integrated load cell attachment pointStainless steel, 1.5" diameter open helix feed screwStandard concentric material conditioning overwind augerElectric vibratory hopper agitator/material conditionerRemote location mounted, programmable SCR motor controller with HMI screen in water and dust proof NEMA 4X stainless enclosure90 VDC right-angle geared, wash down motor35 Gal. solution mixing tank with mixer motor and propeller
Specifications Specifications
The Volumetric Screw Feeder with Mixing Tank must be constructed of rugged, carbon steel with a corrosion resistant zinc oxide primed, dry powder epoxy coating. The feeder shall include a heavy-duty, gear driven auger metering mechanism with a stainless steel auger, concentric helical overwind auger and built-in gravity fed hopper. All hardware shall be stainless steel. A programmable SCR controller module with HMI screen must be remote location mountable and housed in a water and dust proof NEMA 4X, UL approved enclosure. Auger shall be powered by a 1/2 HP DC motor and have integrated electric vibratory agitator/material conditioner. Feeder shall feature an integrated 35 gal. solution mixing tank with mixer motor and propeller.Feeder shall be a Model VMF-90E⢠as manufactured by Scaletron⢠Industries Ltd., Plumsteadville, PA.Options for "Loss of Weight System":The optional âLoss in Weightâ measurement system for gravimetric feeding shall include four (4) NTEP approved stainless steel shear beam cells and stainless steel leveling bolts. A variety of scale indicators and controllers are available.
