Scaletron⢠Model 4021 Ultra-Low Profile Drum Scales
Scaletron⢠Model 4021 Ultra-Low Profile Drum Scales
SKU:DRU-61e2e8
Precision drum scales for secure weighing of carboys & drums up to 26", featuring corrosion-resistant design & NTEP load cell.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
Scaletron⢠Model 4021 Ultra-Low Profile Drum Scales
$1,399.99
Quantity: 1
Claim Your Seller Account
Scaletron⢠Model 4021 Ultra-Low Profile Drum Scales
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

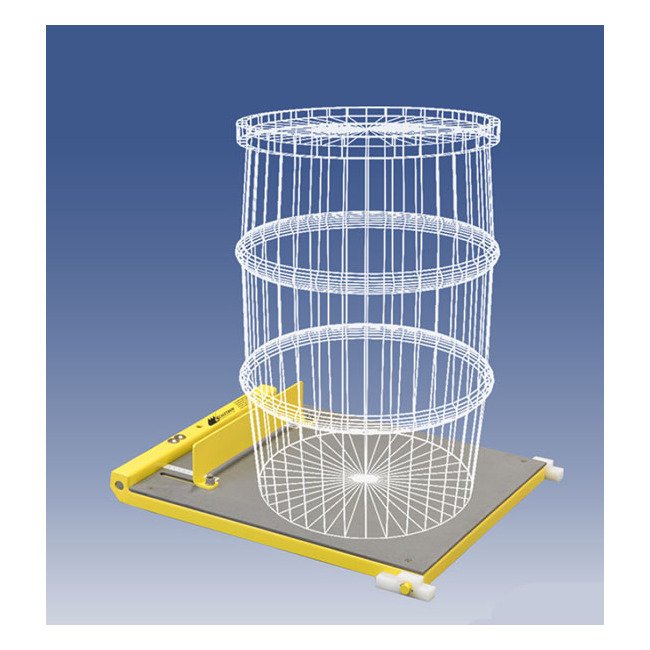

The Scaletron⢠Model 4021 is the ultimate solution for weighing carboys and drums up to 26" in diameter with its single load cell design. This ultra-low profile scale features a rugged steel construction, corrosion-resistant finish, NTEP stainless steel load cell, and a user-friendly electronic indicator providing precise measurements. Designed for safety and ease of handling, it includes a heavy-duty steel backstop and remote controller options for versatile functionality. Ideal for measuring various chemicals accurately, this American-made scale meets the highest standards of durability and reliability in industrial applications.
Product Specifications

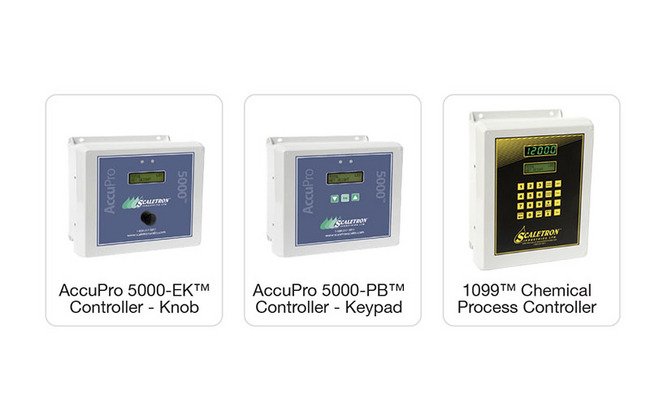

Available Controllers Available Controllers
AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4 - 20 mA output signal - scale or loop poweredModel 1099 Chemical Process Controller with 1 to 4 channels, 20 button keypad and 4 - 20 mA output signal - scale or loop powered
Chemicals Chemicals
Scale is designed to accurately measure weight of alum, ammonia, caustic, fluoride, phosphate, polymers, sodium aluminate, sodium bisulfate, sodium hydroxide, sodium hypochlorite and other liquids or powders.
Digital Controllers Digital Controllers
Part Number - ACCUPRO 5000-EKInterface - Encoder knobAccuracy - ±0.1% to ±0.25% of full scale capacityDisplay - 6 Digit alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - 1 or 2 - One scale base per channel4 - 20 mA - 4 - 20 mA Standard, 0 - 5 V or 0 - 10 V optional - 1 Output per channel, scale or loop poweredSet Points - 2 or 4 Per channel (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 7 lbs.Part Number - ACCUPRO 5000-PBInterface - Keypad with three (3) push buttonsAccuracy - ±0.1% to ±0.25% of full scale capacityDisplay - 6 Digit alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - 1 or 2 - One scale base per channel4 - 20 mA - 4 - 20 mA Standard, 0 - 5 V or 0 - 10 V optional - 1 Output per channel, scale or loop poweredSet Points - 2 or 4 Per channel (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 7 lbsPart Number - 1099 C.P.C.Interface - 20 Button keypadAccuracy - ±0.1% to 0.25% of full scale capacityDisplay - 6 Digit LED & alphanumeric backlit LCDDisplay Units - Pounds, kilograms, gallons or litersChannels - Up to 44 - 20 mA - Standard on channel 1 - Loop powered (available for channels 2 thru 4)Set Points - 1 to 4 (high or low)Remote Mounting - Up to 200 feet from base frameAudible Alarm - Optional piezo buzzer with adjustable volumePower - 120/240 VAC, 50/60 Hz, 0.10/0.05 AEnclosure - NEMA 4X, UL approved enclosureWeight - 9 lbs.
Note Note
Made in USA.
Options Options
High and low level set pointsRemote mounting of indicator box up to 200 feet away

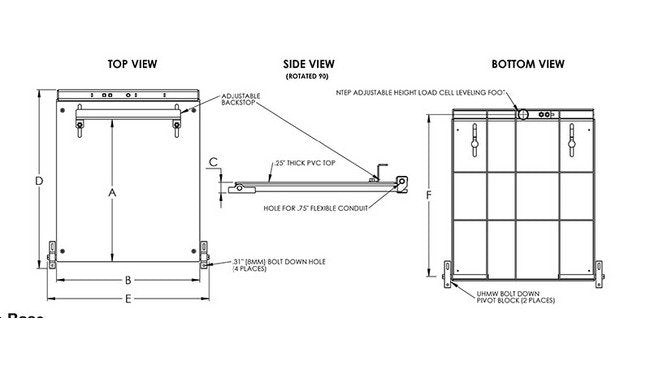

Scale Base Dimension D
21.12 in | 27.13 in | 536 mm | 689 mm
Scale Base Dimension E
21.12 in | 27.19 in | 536 mm | 689 mm
Scale Base Dimension F
20.44 in | 27.19 in | 519 mm | 691 mm
Scale Base Net Capacity
0 to 400 lb | 0 to 1000 lb | 181 kg | 454 kg
Scale Base Platform Height C
1.81 in | 46 mm
Scale Base Platform Length A
20 in | 26.8 in | 508 mm | 681 mm
Scale Base Platform Width B
18.00 in | 24.00 in | 457 mm | 610 mm
Scale Base Weight
110 lb | 80 lb
Specifications Conductor Wire Cable Size
20 ft
Specifications Number Of Conductors
4
Specifications Output Signal Voltage
0 to 10 V | 0 to 5 V
Standard Features Standard Features
Rugged steel construction protected by a corrosion resistant, zinc oxide primed and dry powder epoxy coated finish, with solid 1/4" PVC decking for use in harsh environmentsUltra-low profile platform (1.81") design increases safety and ease of drum handlingDesigned for centered loads - includes heavy-duty steel backstop with measuring guides to help position the drumNTEP stainless steel shear beam, temperature compensated load cellElectronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids
