The SCD1 Series Signal Conditioners are precision devices that offer bridge excitation, amplification, and versatile output options to meet the demanding signal processing needs of both consumer and institutional buyers. With features like adjustable span and balance controls, a choice of ±10 Vdc or 4-20 ma outputs, and accommodation for multiple channels, the SCD1 ensures reliable and accurate signal conditioning for various applications. Encased in a NEMA-rated cabinet, these signal conditioners prioritize durability and performance, making them ideal for industrial settings. When accuracy and dependability matter, the SCD1 Series delivers.
Product Specifications
Features 0

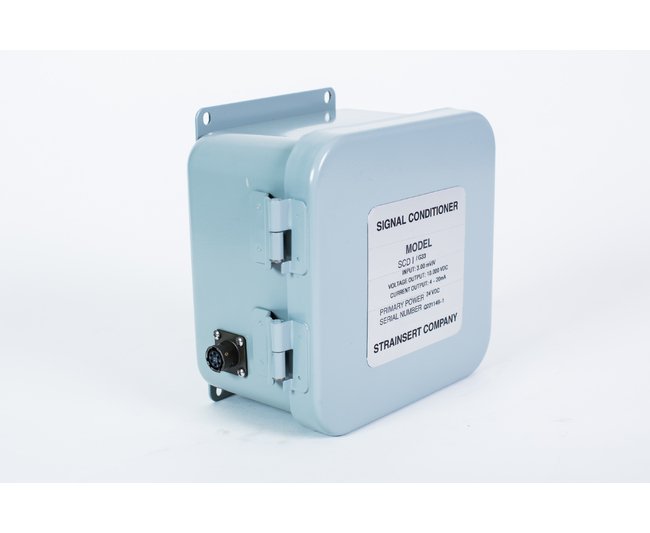

The Model SCD1 is a series of signal conditioners which provide bridge excitation, amplification, span and balance controls and a choice of ±10 Vdc and/or 4-20 ma outputs. Primary input power is available in 120 Vac or a variety of Vdc voltage levels. The SCD1 can accommodate up to four channels with ±10 Vdc outputs or a maximum of 2 channels with 4-20 ma outputs. Standard SCD1 models are packaged in a NEMA-12 rated cabinet (NEMA-4X packages are available). Each input channel is connected via a six (6) pin receptacle (PT02A-10-6S) All output signals are provided at a terminal strip inside the signal conditioner cabinet . Each output signal has an individual terminal connection and each signal shares a single common return.Note: When ordering specify input sensitivity, and desired full scale output.
Specifications Ac Power Ac Units Only
105 to 125 Vac
Specifications Adjustment
± 10% F.S.
Specifications Bridge Type
120 Ohm | 350 Ohm
Specifications Channel
One Channel Input / Output
Specifications Current Output 4 20 Ma Units Only
4-20ma (500 Ohm Load Max.)
Specifications Dimensional Drawing
Signal Conditioner
Specifications Dimensions
6â (H) x 6â (W) x 4â (D)
Specifications Filter
5 Hz, 40 dB/Octave, L.P. Butterworth
Specifications Frequency
50 to 440 Hz
Specifications Input Impedance
> 1 Megohm
Specifications Linearity
± 0.02% F.S.
Specifications Operating Temp
-10 to 150 °F
Specifications Output
4 - 20 ma
Specifications Output Current
100 mA (maximum)
Specifications Output Impedance
< 0.1 Ohms
Specifications Output Voltage
5 VDC (±0.2%)
Specifications Power Supply Voltage
120 Vac
Specifications Protection
Voltage Output protected against continuous short to ground. Current Output protected against continuous short to common and + Vcc
Specifications Regulation
0.05% Line | 0.05% Load
Specifications Sensitivity
0.5-mv/V (minimum)
Specifications Sensitivity Minimum
0.5-mv/V (minimum)
Specifications Settling Time
< 500us to within ±0.1% of the final value
Specifications Slew Rate
0.55V/us
Specifications Source Current
± 7.5 ma
Specifications Stability
± 0.006% F.S. / Deg. F
Specifications Storage Temp
-65 to 200 °F
Specifications Temp Coefficient
0.002% F.S. / Deg. F
Specifications Voltage Output
± 10 Vdc at 7.5 ma
