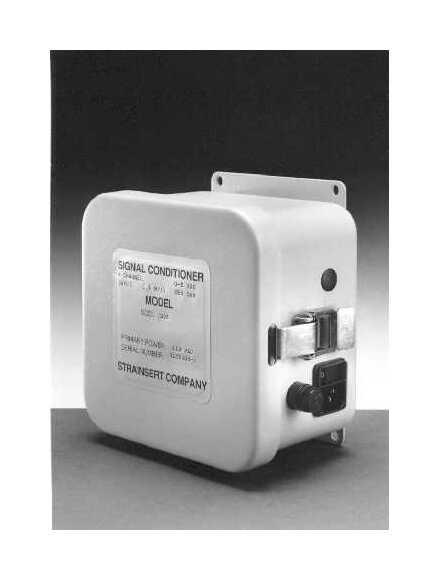

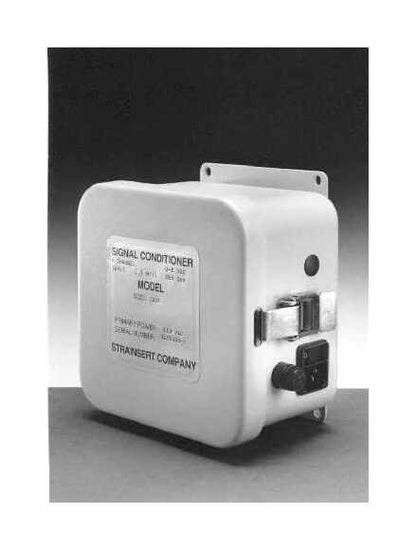

SCD1 Series Signal Conditioners - Multi-Channel Bridge Excitation & Output Control
SCD1 Series Signal Conditioners - Multi-Channel Bridge Excitation & Output Control
SKU:INS-51a4a2
Advanced signal conditioners for precise control with multi-channel output options.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
SCD1 Series Signal Conditioners - Multi-Channel Bridge Excitation & Output Control
$549.99
Quantity: 1
Claim Your Seller Account
SCD1 Series Signal Conditioners - Multi-Channel Bridge Excitation & Output Control
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SCD1 Series Signal Conditioners are advanced devices providing bridge excitation, amplification, span and balance controls, offering a choice of ±10 Vdc and/or 4-20 ma outputs. With accommodating up to four channels for ±10 Vdc outputs or two channels for 4-20 ma outputs, these signal conditioners are ideal for precise measurements and control. Packaged in a NEMA-12 rated cabinet with potential for NEMA-4X options, each channel offers individual terminal connections ensuring accuracy and reliable performance. Specify input sensitivity and desired output for tailored usage in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0
The Model SCD1 is a series of signal conditioners which provide bridge excitation, amplification, span and balance controls and a choice of ±10 Vdc and/or 4-20 ma outputs. Primary input power is available in 120 Vac or a variety of Vdc voltage levels. The SCD1 can accommodate up to four channels with ±10 Vdc outputs or a maximum of 2 channels with 4-20 ma outputs. Standard SCD1 models are packaged in a NEMA-12 rated cabinet (NEMA-4X packages are available). Each input channel is connected via a six (6) pin receptacle (PT02A-10-6S) All output signals are provided at a terminal strip inside the signal conditioner cabinet . Each output signal has an individual terminal connection and each signal shares a single common return.Note: When ordering specify input sensitivity, and desired full scale output.
Specifications Ac Power Ac Units Only
105 to 125 Vac
Specifications Adjustment
± 10% F.S.
Specifications Bridge Type
120 Ohm | 350 Ohm
Specifications Channel
Two Channel Input / Output
Specifications Current Output 4 20 Ma Units Only
4-20ma (500 Ohm Load Max.)
Specifications Dimensional Drawing
Signal Conditioner
Specifications Dimensions
6â (H) x 6â (W) x 4â (D)
Specifications Filter
5 Hz, 40 dB/Octave, L.P. Butterworth
Specifications Frequency
50 to 440 Hz
Specifications Input Impedance
> 1 Megohm
Specifications Linearity
± 0.02% F.S.
Specifications Operating Temp
-10 to 150 °F
Specifications Output
± 10 Vdc
Specifications Output Current
100 mA (maximum)
Specifications Output Impedance
< 0.1 Ohms
Specifications Output Voltage
5 VDC (±0.2%)
Specifications Power Supply Voltage
12 Vdc
Specifications Protection
Voltage Output protected against continuous short to ground. Current Output protected against continuous short to common and + Vcc
Specifications Regulation
0.05% Line | 0.05% Load
Specifications Sensitivity
0.5-mv/V (minimum)
Specifications Sensitivity Minimum
0.5-mv/V (minimum)
Specifications Settling Time
< 500us to within ±0.1% of the final value
Specifications Slew Rate
0.55V/us
Specifications Source Current
± 7.5 ma
Specifications Stability
± 0.006% F.S. / Deg. F
Specifications Storage Temp
-65 to 200 °F
Specifications Temp Coefficient
0.002% F.S. / Deg. F
Specifications Voltage Output
± 10 Vdc at 7.5 ma
