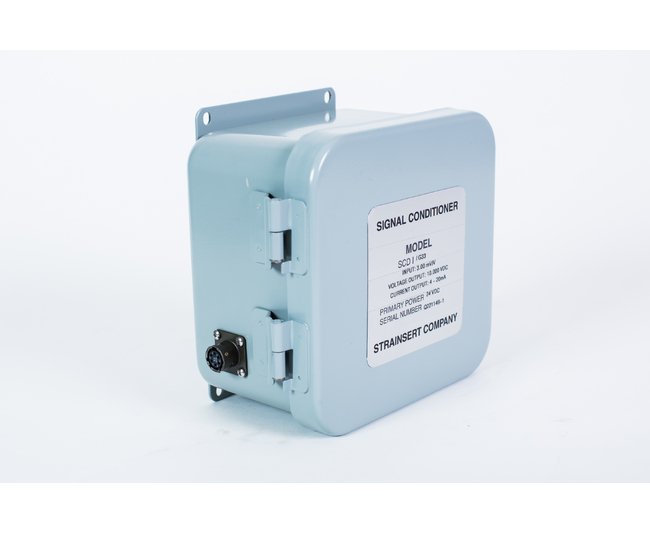

The SCD1 Series Signal Conditioners are expertly designed to provide bridge excitation, amplification, span and balance controls, and offer a choice of ±10 Vdc and/or 4-20 mA outputs. With primary input power options of 120 Vac or various Vdc voltage levels, these signal conditioners can accommodate up to four channels with ±10 Vdc outputs or up to two channels with 4-20 mA outputs. Housed in a NEMA-12 rated cabinet (NEMA-4X packages available), each input channel connects via a six-pin receptacle for easy installation. These signal conditioners meet stringent industry standards, ensuring precision and reliability for institutional and government buyers.
Product Specifications
Features 0
The Model SCD1 is a series of signal conditioners which provide bridge excitation, amplification, span and balance controls and a choice of ±10 Vdc and/or 4-20 ma outputs. Primary input power is available in 120 Vac or a variety of Vdc voltage levels. The SCD1 can accommodate up to four channels with ±10 Vdc outputs or a maximum of 2 channels with 4-20 ma outputs. Standard SCD1 models are packaged in a NEMA-12 rated cabinet (NEMA-4X packages are available). Each input channel is connected via a six (6) pin receptacle (PT02A-10-6S) All output signals are provided at a terminal strip inside the signal conditioner cabinet . Each output signal has an individual terminal connection and each signal shares a single common return.Note: When ordering specify input sensitivity, and desired full scale output.
Specifications Ac Power Ac Units Only
105 to 125 Vac
Specifications Adjustment
± 10% F.S.
Specifications Bridge Type
120 Ohm | 350 Ohm
Specifications Channel
Three Channel Input / Output
Specifications Current Output 4 20 Ma Units Only
4-20ma (500 Ohm Load Max.)
Specifications Dimensional Drawing
Signal Conditioner
Specifications Dimensions
6â (H) x 6â (W) x 4â (D)
Specifications Filter
5 Hz, 40 dB/Octave, L.P. Butterworth
Specifications Frequency
50 to 440 Hz
Specifications Input Impedance
> 1 Megohm
Specifications Linearity
± 0.02% F.S.
Specifications Operating Temp
-10 to 150 °F
Specifications Output
± 10 Vdc
Specifications Output Current
100 mA (maximum)
Specifications Output Impedance
< 0.1 Ohms
Specifications Output Voltage
5 VDC (±0.2%)
Specifications Power Supply Voltage
5 Vdc
Specifications Protection
Voltage Output protected against continuous short to ground. Current Output protected against continuous short to common and + Vcc
Specifications Regulation
0.05% Line | 0.05% Load
Specifications Sensitivity
0.5-mv/V (minimum)
Specifications Sensitivity Minimum
0.5-mv/V (minimum)
Specifications Settling Time
< 500us to within ±0.1% of the final value
Specifications Slew Rate
0.55V/us
Specifications Source Current
± 7.5 ma
Specifications Stability
± 0.006% F.S. / Deg. F
Specifications Storage Temp
-65 to 200 °F
Specifications Temp Coefficient
0.002% F.S. / Deg. F
Specifications Voltage Output
± 10 Vdc at 7.5 ma
