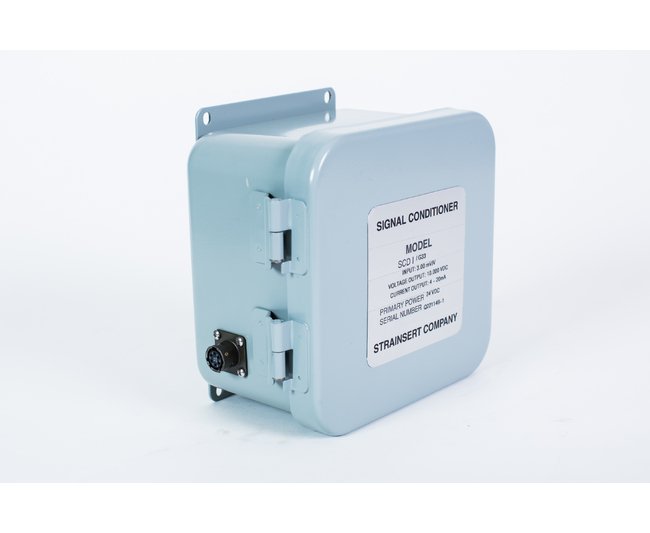

SCD1 Series Signal Conditioners with Bridge Excitation
SCD1 Series Signal Conditioners with Bridge Excitation
SKU:INS-b407fa
Get precise signal processing with SCD1 Series Signal Conditioners. Bridge excitation, amplification, and flexible output options for accurate integration. NEMA-12 rated with customizable settings.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
SCD1 Series Signal Conditioners with Bridge Excitation
$349.99
Quantity: 1
Claim Your Seller Account
SCD1 Series Signal Conditioners with Bridge Excitation
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SCD1 Series Signal Conditioners are meticulously engineered to provide precise bridge excitation, amplification, and control features essential for accurate signal processing. With the flexibility of offering both ±10 Vdc and 4-20 ma outputs, these conditioners ensure seamless integration into diverse systems. Accommodating up to four channels with ±10 Vdc outputs or two channels with 4-20 ma outputs, the SCD1 models guarantee reliable performance. Packaged in NEMA-12 rated cabinets (upgradeable to NEMA-4X), each unit is meticulously designed for optimal functionality. Specify input sensitivity and full-scale output for customized usage.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0
The Model SCD1 is a series of signal conditioners which provide bridge excitation, amplification, span and balance controls and a choice of ±10 Vdc and/or 4-20 ma outputs. Primary input power is available in 120 Vac or a variety of Vdc voltage levels. The SCD1 can accommodate up to four channels with ±10 Vdc outputs or a maximum of 2 channels with 4-20 ma outputs. Standard SCD1 models are packaged in a NEMA-12 rated cabinet (NEMA-4X packages are available). Each input channel is connected via a six (6) pin receptacle (PT02A-10-6S) All output signals are provided at a terminal strip inside the signal conditioner cabinet . Each output signal has an individual terminal connection and each signal shares a single common return.Note: When ordering specify input sensitivity, and desired full scale output.
Specifications Ac Power Ac Units Only
105 to 125 Vac
Specifications Adjustment
± 10% F.S.
Specifications Bridge Type
120 Ohm | 350 Ohm
Specifications Channel
Four Channel Input / Output
Specifications Current Output 4 20 Ma Units Only
4-20ma (500 Ohm Load Max.)
Specifications Dimensional Drawing
Signal Conditioner
Specifications Dimensions
6â (H) x 6â (W) x 4â (D)
Specifications Filter
5 Hz, 40 dB/Octave, L.P. Butterworth
Specifications Frequency
50 to 440 Hz
Specifications Input Impedance
> 1 Megohm
Specifications Linearity
± 0.02% F.S.
Specifications Operating Temp
-10 to 150 °F
Specifications Output
± 10 Vdc
Specifications Output Current
100 mA (maximum)
Specifications Output Impedance
< 0.1 Ohms
Specifications Output Voltage
5 VDC (±0.2%)
Specifications Power Supply Voltage
15 Vdc
Specifications Protection
Voltage Output protected against continuous short to ground. Current Output protected against continuous short to common and + Vcc
Specifications Regulation
0.05% Line | 0.05% Load
Specifications Sensitivity
0.5-mv/V (minimum)
Specifications Sensitivity Minimum
0.5-mv/V (minimum)
Specifications Settling Time
< 500us to within ±0.1% of the final value
Specifications Slew Rate
0.55V/us
Specifications Source Current
± 7.5 ma
Specifications Stability
± 0.006% F.S. / Deg. F
Specifications Storage Temp
-65 to 200 °F
Specifications Temp Coefficient
0.002% F.S. / Deg. F
Specifications Voltage Output
± 10 Vdc at 7.5 ma
