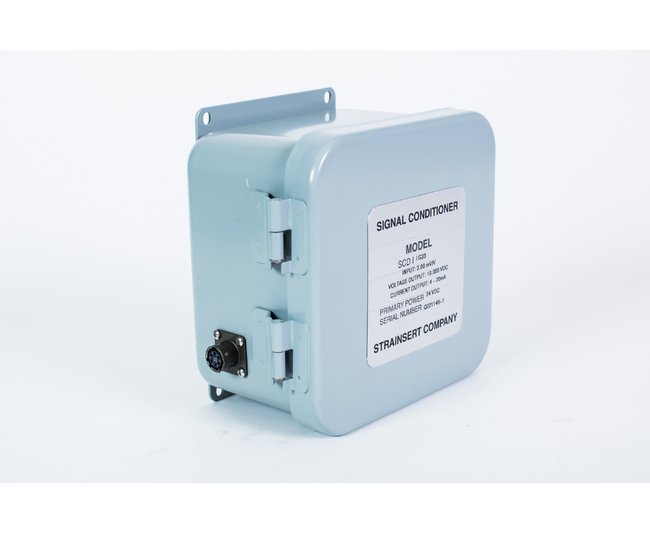

• SCD1 Signal Conditioner - Image 1
  • SCD1 Signal Conditioner - Image 2
1 2
Strainsert Co. →

SCD1 Signal Conditioner

SCD1 Signal Conditioner

INS-902026

Reliable SCD1 Signal Conditioner for precise measurements and industrial applications. Flexible channels, precise outputs, and NEMA-12 protection for accurate results.

$499.99
$499.99
Sale

Initiate Order

SCD1 Signal Conditioner

SCD1 Signal Conditioner

$499.99

Quantity: 1

Claim Your Seller Account

SCD1 Signal Conditioner

SCD1 Signal Conditioner

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SCD1 Signal Conditioner series is a reliable solution for precise signal processing in industrial settings. Providing bridge excitation, amplification, span and balance controls, with a choice of ±10 Vdc and/or 4-20 mA outputs, it ensures accurate measurements. With compatibility for up to four channels with ±10 Vdc outputs or two channels with 4-20 mA outputs, this device offers versatility and flexibility. Housed in a NEMA-12 cabinet, it meets industry standards for protection. Specify input sensitivity and desired full scale output for tailored performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features 0
The Model SCD1 is a series of signal conditioners which provide bridge excitation, amplification, span and balance controls and a choice of ±10 Vdc and/or 4-20 ma outputs. Primary input power is available in 120 Vac or a variety of Vdc voltage levels. The SCD1 can accommodate up to four channels with ±10 Vdc outputs or a maximum of 2 channels with 4-20 ma outputs. Standard SCD1 models are packaged in a NEMA-12 rated cabinet (NEMA-4X packages are available). Each input channel is connected via a six (6) pin receptacle (PT02A-10-6S) All output signals are provided at a terminal strip inside the signal conditioner cabinet . Each output signal has an individual terminal connection and each signal shares a single common return.Note: When ordering specify input sensitivity, and desired full scale output.
Specifications Ac Power Ac Units Only
105 to 125 Vac
Specifications Adjustment
± 10% F.S.
Specifications Bridge Type
120 Ohm | 350 Ohm
Specifications Channel
One Channel Input / Output
Specifications Current Output 4 20 Ma Units Only
4-20ma (500 Ohm Load Max.)
Specifications Dimensional Drawing
Signal Conditioner
Specifications Dimensions
6” (H) x 6” (W) x 4” (D)
Specifications Filter
5 Hz, 40 dB/Octave, L.P. Butterworth
Specifications Frequency
50 to 440 Hz
Specifications Input Impedance
> 1 Megohm
Specifications Linearity
± 0.02% F.S.
Specifications Operating Temp
-10 to 150 °F
Specifications Output
± 10 Vdc
Specifications Output Current
100 mA (maximum)
Specifications Output Impedance
< 0.1 Ohms
Specifications Output Voltage
5 VDC (±0.2%)
Specifications Power Supply Voltage
24 Vdc
Specifications Protection
Voltage Output protected against continuous short to ground. Current Output protected against continuous short to common and + Vcc
Specifications Regulation
0.05% Line | 0.05% Load
Specifications Sensitivity
0.5-mv/V (minimum)
Specifications Sensitivity Minimum
0.5-mv/V (minimum)
Specifications Settling Time
< 500us to within ±0.1% of the final value
Specifications Slew Rate
0.55V/us
Specifications Source Current
± 7.5 ma
Specifications Stability
± 0.006% F.S. / Deg. F
Specifications Storage Temp
-65 to 200 °F
Specifications Temp Coefficient
0.002% F.S. / Deg. F
Specifications Voltage Output
± 10 Vdc at 7.5 ma
