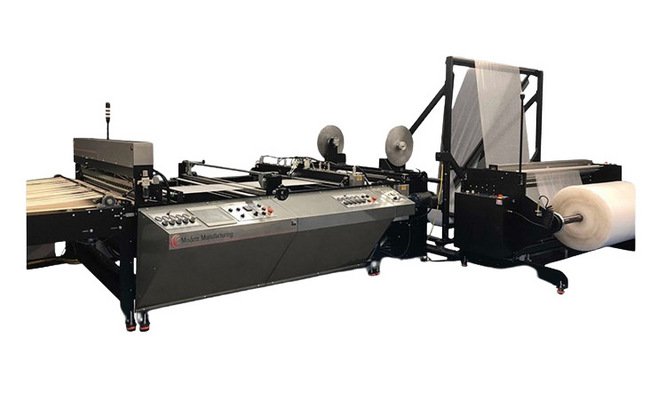

Scheldahl Series 56 Inch (in) Maximum Height Side Weld Bag Machine
Scheldahl Series 56 Inch (in) Maximum Height Side Weld Bag Machine
SKU:SCH-88cc08
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Scheldahl Series 56 Inch (in) Maximum Height Side Weld Bag Machine
$49.99
Quantity: 1
Claim Your Seller Account
Scheldahl Series 56 Inch (in) Maximum Height Side Weld Bag Machine
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Going back decades, countless number of plastic bags have been produced, using machines with the "Scheldahl" name. Modern has taken this proven platform and incorporated the latest technology to improve productivity, reduce downtime and increase production rates, all while reducing maintenance costs.
Product Specifications
Additional Information
Some of these enhancements include:State-of-the-Art Servo TechnologyIndependent Servo Seal Knife LiftColor touchscreen "Human Machine Interface" (HMI) with built-in job storage for easy changeoversLarge Diameter Draw RollersDual Servo Nip DrivesElimination of all lower cams or mechanisms underneath the machineAnother key enhancement is the addition of Intelliseal into the Scheldahl Series Side Weld Bag Line. The intelligent sealer is a servo actuated system, with built in functional settings. This allows the operator to choose which settings are needed for the films and features of a converting application.With the addition of Intelliseal and the elimination of the lower cams, customers are now able to run films that they were never able to run on a side weld bag machine (i.e., running foam, bubble, PE, recyclable and barrier films).Models available include:41 - inch width solid56 - inch width split lane72 - inch width split lane model, is also available as a special order.Each model has numerous options to choose from, to match your application needs
Note
Technical specifications and details are subject to change.72" width split lane specialty model available upon request.Made in The USA
Options
Dual straight infeed unwind shafts (drag brakes required)Folder (with or without point gusset)Continuous Motion String ZipperLow Cost / Edge Guided Unwind with strap brakeNip Driven, Edge Guided Unwind with Safety ChucksHole Punch UnitsGusset Servo Pre-sealerTape DispenserChiller
Technical Specs Compressed Air
100 -PSI Maintained Air Supply ( 5 Micron Filtration), 10 CFM
Technical Specs Frequency At 125 Ampere A Current
50 Hz | 60 Hz
Technical Specs Maximum Bag Height
56 in | 1,422.4 mm
Technical Specs Maximum Bag Width
40 in | 1,016 mm
Technical Specs Maximum Roll Diameter
Options Available
Technical Specs Mechanical Speed
250 cycles/min
Technical Specs Minimum Bag Width
2 in | 50.8 mm
Technical Specs Phase
3
Technical Specs Safety
Built-in guard inter-locking and forced redundant contact safety relays
Technical Specs Standard Core Size
3 in | 76.2 mm
Technical Specs Voltage
220 V | 240 V
Technical Specs Water Supply
4 GPM Water Supply Required (Chilled Supply Recommended)
