Schrader Bellows® 4MA Series 8" Bore Cap Trunnion Mount Air Cylinder
Schrader Bellows® 4MA Series 8" Bore Cap Trunnion Mount Air Cylinder
SKU:AIR-a0ab89
Experience superior NFPA pneumatic performance with Schrader Bellows® 4MA Series 8" Bore Cap Trunnion Mount Air Cylinder. Lightweight aluminum construction, adjustable cushions, and interchangeable rod ends ensure efficiency and reliability.
Regular price
$275.99
Regular price
Sale price
$275.99
Unit price
per
Initiate Order
Schrader Bellows® 4MA Series 8" Bore Cap Trunnion Mount Air Cylinder
$275.99
Quantity: 1
Claim Your Seller Account
Schrader Bellows® 4MA Series 8" Bore Cap Trunnion Mount Air Cylinder
$275.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Schrader Bellows® 4MA Series 8" Bore Cap Trunnion Mount Air Cylinder offers premium quality NFPA pneumatic performance. Crafted from lightweight aluminum, this cylinder ensures reliability and efficiency. With bore sizes ranging from 1-1/2" to 5", removable bronze alloy gland/bearing, versatile stroke lengths, and various mounting styles, it meets diverse cylinder requirements. RoHS compliant and featuring adjustable cushions and interchangeable rod ends, this cylinder excels in delivering precise linear force and motion for industrial applications.

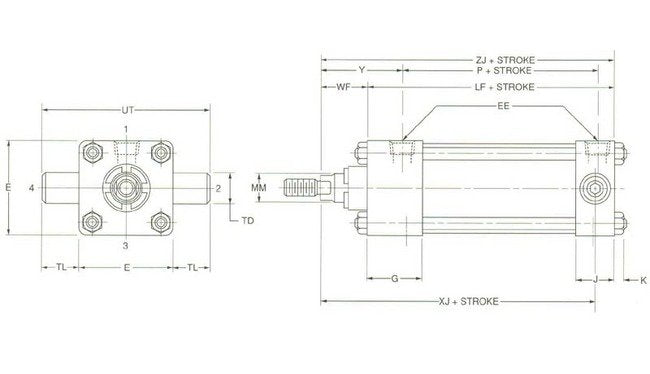

Product Specifications
Rod Dimensions A
1 5/8 in | 2 in
Rod Dimensions B
1.999 in | 2.374 in
Rod Dimensions C
13/16 in | 7/8 in
Rod Dimensions D
1 1/2 in | 1 1/8 in
Rod Dimensions La
3 1/4 in | 3 7/8 in
Rod Dimensions Na
1 11/16 in | 1 5/16 in
Rod Dimensions Rod Dimension Mm
1 3/4 in | 1 3/8 in
Rod Dimensions Thread Style 2 3 Kk
1 1/4-12 | 1-14
Rod Dimensions Thread Style 4 Cc
1 1/2 -12 | 1 1/4 -12
Rod Dimensions Tolerance B
+0.000 in | -0.002 in
Rod Dimensions Vf
1 1/16 in | 3/4 in
Rod Dimensions W
1 1/8 in | 7/8 in
Rod Dimensions Wf
1 5/8 in | 1 7/8 in
Rod Dimensions Y
2 3/4 in | 3 in
Specifications Add Stroke Lf
5 1/8 in
Specifications Add Stroke P
3 1/4 in
Specifications Add Stroke Xj
6 in | 6 1/4 in
Specifications Add Stroke Zj
6 3/4 in | 7 in
Specifications Bd
2 1/2 in
Specifications Bore Size
8 in
Specifications E
8 1/2 in
Specifications Ee Nptf
3/4 in
Specifications G
1.81 in
Specifications J
1.44 in
Specifications K
9/16 in
Specifications Manufacturer
Schrader Bellows®
Specifications Min Xi
4 15/16 in | 5 3/16 in
Specifications Nfpa
MT2
Specifications Tl
1 3/8 in
Specifications Tm
9 3/4 in
Specifications Um
12 1/2 in
Specifications Ut
11 1/4 in
Specifications Uv
9 1/2 in
Specifications Xg
2 5/8 in | 2 7/8 in
