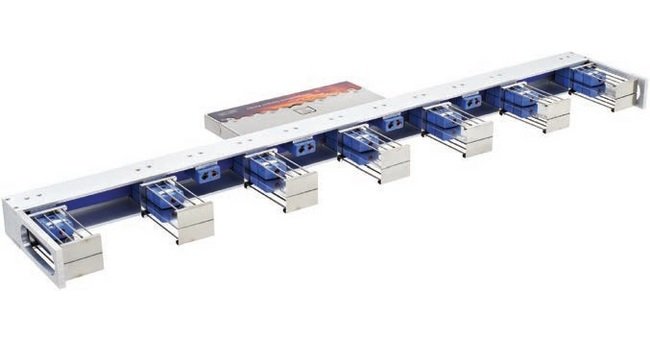

SCORPION® 2 800mm Conveyor Width Temperature Sensor Array
SCORPION® 2 800mm Conveyor Width Temperature Sensor Array
SKU:TEM-fd0398
Monitor product temperature accurately with SCORPION® 2 800mm Temperature Sensor Array for optimized quality control.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
SCORPION® 2 800mm Conveyor Width Temperature Sensor Array
$2,599.99
Quantity: 1
Claim Your Seller Account
SCORPION® 2 800mm Conveyor Width Temperature Sensor Array
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SCORPION® 2 800mm Conveyor Width Temperature Sensor Array is an essential tool for ensuring precise temperature monitoring in ovens. With a robust design featuring pluggable thermocouple pairs evenly spaced along the bar, this system offers accurate temperature readings from side-to-side and end-to-end. Ideal for applications ranging from quality assurance to new product development, this sensor array provides real-time data to optimize food safety, throughput, and equipment performance. Compatible with SCORPION® 2 Software, it simplifies complex temperature measurements and enhances process optimization.
Product Specifications
Additional Information
The SCORPION® 2 Temperature Sensor Array is designed to measure temperature at product level, in fixed positions across the conveyor, delivering a true representation of what the product experiences over time. The design contains pluggable thermocouple pairs equally spaced across the length of a bar, which is selected to match the width of the oven band. The number of sensor pairs varies with the length of the bar / conveyor width. The sensor array travels through the process with the product, and the oven under full load, yielding a precise picture of temperature from side-to-side and end-to-end. Simultaneous product-core-temperature measurements can be made via the product probe inputs on the sensor array. There are 2 or 4 product probe inputs on the temperature sensor array.
Applications
Quality AssuranceRecord your processing conditions when your product quality is within specification. Save these profiles for future reference as "target" conditions. Use the SPC function included in the software to establish upper and lower control limits for your process temperature, air velocity, heat flux and humidity profiles.Line Start-upTake a SCORPION® 2 profile a few minutes before introducing product into a process. This is a good check that the process has reached the correct operating conditions before production is started.Product Consistency Line-to-LineCompare SCORPION® 2 profiles for two process ovens, perhaps in different factories, that are supposed to be making the same product.Commissioning and MaintenanceHeat process ovens usually include dampers and other controls that must be set by the installation engineer. Use SCORPION® 2 to check that these have been set correctly. Repeat the profiles as part of your preventative maintenance program to detect drift in zone conditions and to pin-point the cause of problems when they do occur.Analyze Equipment PerformanceMost oven manufacturers now use SCORPION® 2 to design their heat processes. This is an invaluable tool for design engineers to balance heat and airflow across the width and along the length of the process oven.Optimize Food Safety and ThroughputControlling internal food temperature is key to achieving food safety. Today's food processors must also document how they are meeting food safety requirements with data. The SCORPION® 2 Data Logging Measurement System makes both jobs easier.The SCORPION® 2 Data Logger with R&D Smart Sensor and Product Probes simplifies the measurement of environment temperature, airflow, energy transfer and internal product core temperature. Plus the SCORPION® 2 Software (SV8) calculates and displays the % kill for a specified pathogen reduction level.By combining this ease of measurement with robust data capture, the SCORPION® 2 System enables better process optimization. No other system makes achieving desired levels of food safety and throughput so simple.New Product DevelopmentUse SCORPION® 2 to record the processing conditions you develop in the lab or in a pilot plant. Then use SCORPION® 2 again to establish the same conditions as the new product is transferred to a full-scale production line.
Standard Array Configurations Bar Length
750 mm | 29.5 in
Standard Array Configurations Conveyor Width
800 mm | 31.5 in
Standard Array Configurations Number Of Product Probe Inputs
4
Standard Array Configurations Number Of Sensor Pairs
7
Standard Array Configurations Sensor Spacing
116 mm | 4.56 in
