SCORPION® 2 Magnetic Temperature Sensor Array - 500mm
SCORPION® 2 Magnetic Temperature Sensor Array - 500mm
SKU:MAG-cf8834
Monitor and optimize temperatures with SCORPION® 2 Magnetic Temperature Sensor Array - 500mm for precise data capture and analysis.
Regular price
$999.99
Regular price
Sale price
$999.99
Unit price
per
Initiate Order
SCORPION® 2 Magnetic Temperature Sensor Array - 500mm
$999.99
Quantity: 1
Claim Your Seller Account
SCORPION® 2 Magnetic Temperature Sensor Array - 500mm
$999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your quality assurance and product consistency with the SCORPION® 2 Magnetic Temperature Sensor Array. This sensor array, featuring 1 to 10 Type T Thermocouple sensors with an accuracy of ±1.0 ºC, offers precise temperature monitoring in a -50 to 350 ºC range. Ideal for optimizing food safety, process optimization, and equipment performance, this system provides detailed data capture and analysis. Designed for fixed sensor repeatability and compatibility with conveyor systems, it is a reliable and cost-effective solution for institutional buyers seeking compliance with industry standards.
Product Specifications
Additional Information

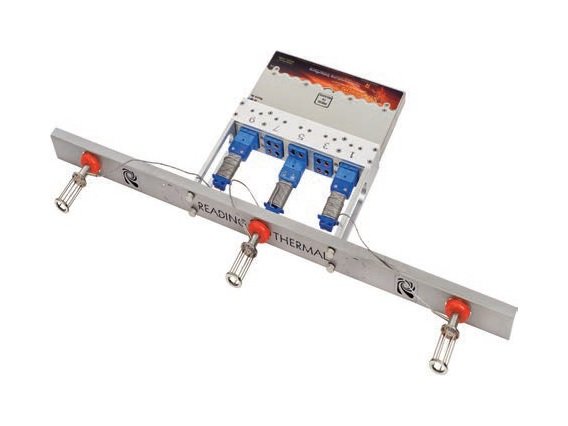

Designed as a fixed-length array to match conveyor widths from 300mm (11.8") to 3000mm (118"). The Magnetic Stainless Steel U Channel provides the mounting point for 1 - 10 Magnetic Base Air Temperature Sensors. This allows the user to study side-to-side temperature variation across the width of a conveyor. Requires a Temperature Interface (device pictured).
Applications
Quality AssuranceRecord your processing conditions when your product quality is within specification. Save these profiles for future reference as "target" conditions. Use the SPC function included in the software to establish upper and lower control limits for your process temperature, air velocity, heat flux and humidity profiles.Line Start-upTake a SCORPION® 2 profile a few minutes before introducing product into a process. This is a good check that the process has reached the correct operating conditions before production is started.Product Consistency Line-to-LineCompare SCORPION® 2 profiles for two process ovens, perhaps in different factories, that are supposed to be making the same product.Commissioning and MaintenanceHeat process ovens usually include dampers and other controls that must be set by the installation engineer. Use SCORPION® 2 to check that these have been set correctly. Repeat the profiles as part of your preventative maintenance program to detect drift in zone conditions and to pin-point the cause of problems when they do occur.Analyze Equipment PerformanceMost oven manufacturers now use SCORPION® 2 to design their heat processes. This is an invaluable tool for design engineers to balance heat and airflow across the width and along the length of the process oven.Optimize Food Safety and ThroughputControlling internal food temperature is key to achieving food safety. Today's food processors must also document how they are meeting food safety requirements with data. The SCORPION® 2 Data Logging Measurement System makes both jobs easier.The SCORPION® 2 Data Logger with R&D Smart Sensor and Product Probes simplifies the measurement of environment temperature, airflow, energy transfer and internal product core temperature. Plus the SCORPION® 2 Software (SV8) calculates and displays the % kill for a specified pathogen reduction level.By combining this ease of measurement with robust data capture, the SCORPION® 2 System enables better process optimization. No other system makes achieving desired levels of food safety and throughput so simple.New Product DevelopmentUse SCORPION® 2 to record the processing conditions you develop in the lab or in a pilot plant. Then use SCORPION® 2 again to establish the same conditions as the new product is transferred to a full-scale production line.
Features
Mounting Hardware compatible with Temperature Interface
Specifications Size
500 mm
Technical Summary Accuracy
1.0 ºC | 1.8 ºF
Technical Summary Battery Running Time
50+ hour
Technical Summary Number Of Magnetic Base Air Temperature Sensor
1 to 10
Technical Summary Operating Temperature Range
-50 to 350 ºC | -58 to 662 ºF
Technical Summary Resolution
0.025 ºC | 0.045 ºF
Technical Summary Response Time T60 In Air At 1 Meter Per Second
3.5 second
Technical Summary Sensor Type
Type T Thermocouple
