SCORPION® 2 SV8 Data Analysis Software

Name: SCORPION® 2 SV8 Data Analysis Software
Brand: Reading Thermal
SKU: SCO-1c7dfe
Price: 499.99 USD
Availability: OutOfStock

SKU:SCO-1c7dfe

Transform data analysis with SCORPION® 2 SV8 Software. Enhance food safety, optimize processes, and ensure consistency effortlessly.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade to the cutting-edge SCORPION® 2 SV8 Data Analysis Software for enhanced data analysis capabilities and seamless compatibility with SCORPION® 2 hardware. With intuitive features like advanced graphing options, data compatibility with previous versions, and a user-friendly interface, SV8 empowers users to optimize food safety, streamline processes, and ensure product consistency. Ideal for quality assurance, commissioning, maintenance, and equipment performance analysis, this software is a game-changer in thermal processing data management.

Product Specifications

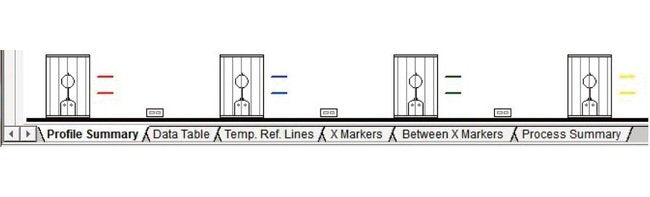

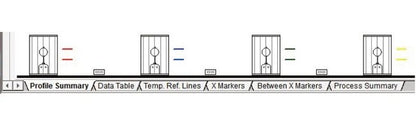

Additional Features

Profile Summary: A complete description of the profile including time and date, scan rate, user name, sensor used, data logger used, maximum internal temp reached by the data logger, calibration dates of data logger and sensor and start / finish data trimming capability.Data Table: Raw data collected by the data logger which can be exported to other programs.Temp. Ref. Lines: Display channel time and average temp between four temp reference lines. Used in Food Safety applications to calculate % Kill.X Markers: Display channel values at four X axis positions.Between X Markers: Display channel minimum, maximum and average values between four X axis positions.Process Summary: A complete description of the process being profiled including process name, product name, equipment type, conveyor type, number of zones and zone lengths.

Advanced Features

Units of Measure: work in SI (ºC, m) or US (ºF, ft)Calibration Reminders: remind the user when data logger and sensor calibrations are due.Data Trimming: easily trim the profile data "start" and "finish" times, before or after download, without editing the raw data table. Start and finish times are entered as hh:mm:ss.Overlays: profiles of the same and different type can be overlaid on the same graph. For example a temperature profile can be overlaid on an air velocity graph.Averages: averages can be created for a specific data set and overlaid data sets. Averages-of-averages can also be created.Curser Display: on screen display of x, y and w data values as the curser arrow is moved over a graph.X Axis Display: display time, distance (ft / m) or percent travel through the process.Help: easy to use electronic manual.Graphical SPC: graphical statistical process control available with all sensors.

Applications

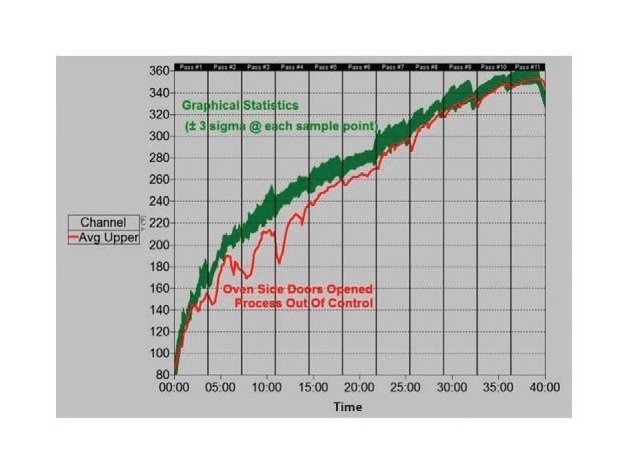

Quality AssuranceRecord your processing conditions when your product quality is within specification. Save these profiles for future reference as "target" conditions. Use the SPC function included in the software to establish upper and lower control limits for your process temperature, air velocity, heat flux and humidity profiles.Line Start-upTake a SCORPION® 2 profile a few minutes before introducing product into a process. This is a good check that the process has reached the correct operating conditions before production is started.Product Consistency Line-to-LineCompare SCORPION® 2 profiles for two process ovens, perhaps in different factories, that are supposed to be making the same product.Commissioning and MaintenanceHeat process ovens usually include dampers and other controls that must be set by the installation engineer. Use SCORPION® 2 to check that these have been set correctly. Repeat the profiles as part of your preventative maintenance program to detect drift in zone conditions and to pin-point the cause of problems when they do occur.Analyze Equipment PerformanceMost oven manufacturers now use SCORPION® 2 to design their heat processes. This is an invaluable tool for design engineers to balance heat and airflow across the width and along the length of the process oven.Optimize Food Safety and ThroughputControlling internal food temperature is key to achieving food safety. Today's food processors must also document how they are meeting food safety requirements with data. The SCORPION® 2 Data Logging Measurement System makes both jobs easier.The SCORPION® 2 Data Logger with R&D Smart Sensor and Product Probes simplifies the measurement of environment temperature, airflow, energy transfer and internal product core temperature. Plus the SCORPION® 2 Software (SV8) calculates and displays the % kill for a specified pathogen reduction level.By combining this ease of measurement with robust data capture, the SCORPION® 2 System enables better process optimization. No other system makes achieving desired levels of food safety and throughput so simple.New Product DevelopmentUse SCORPION® 2 to record the processing conditions you develop in the lab or in a pilot plant. Then use SCORPION® 2 again to establish the same conditions as the new product is transferred to a full-scale production line.

Data Analysis

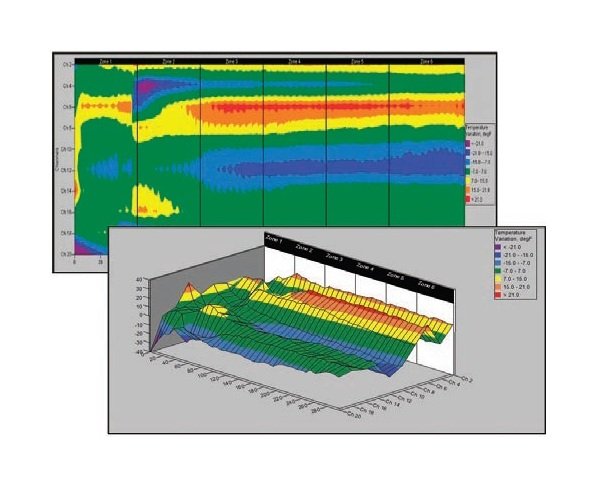

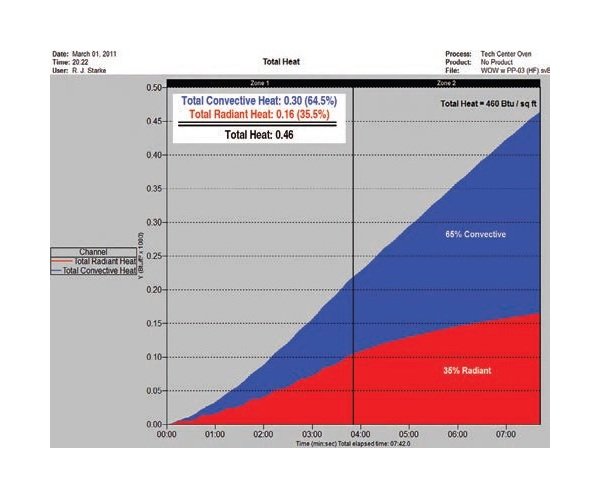

The click of a button transforms 2D Line Graphs into 2D Contour and 3D Mesh only for arrays.The Heat Flux Sensor measures the Total Heat experienced by the product and is conveniently displayed in the Total Heat Graph. The convective and radiant percentages are automatically calculated and displayed on the graph.

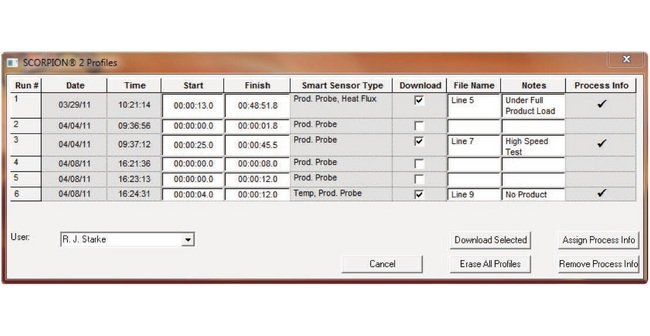

Data Download

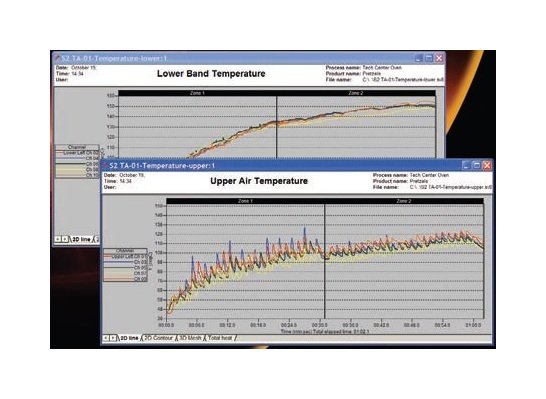

Choose one or several profiles to be Downloaded from the data logger. Edit profile “Start" and “Finish" times, enter File Names, add Notes and assign Process Information.Each profile appears in its own SV8 window for analysis. Temperature Sensor Array data (containing upper and lower measurements) is automatically separated and displayed in upper and lower graphs.

Data Logger Compatibility

SV8 Communicates with all previous SCORPION®2 Data Loggers. It supports the simultaneous use of a SCORPION® 2 Data Logger and an older SCORPION® Data Logger. Each has its own toolbar button for communication, allowing users with mixed hardware to use a single software program.

Specifications Data Compatibility

Opens all previous profile data collected with SV5, SV6 or SV7.

Specifications Software Version

SCORPION® 2 Software Version 8 (SV8)

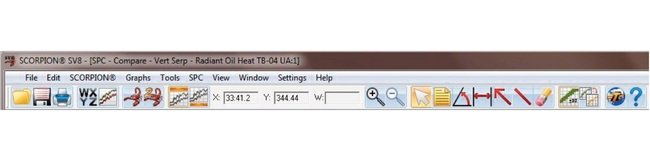

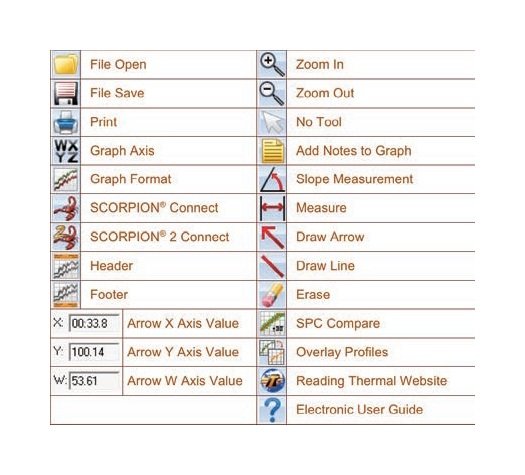

Specifications Sv8 Toolbar

Provides easy access to the major features of the software.

Specifications System Requirements

SCORPION® 2 SV8 Data Analysis Software
