SCR Oval Can Capacitor

SCR Oval Can Capacitor

OIL-2ebfab

High-performance SCR Oval Can Capacitor, 0.25-15 µF, 600 VDC, drawn plated steel cans. Compliant with industry standards.

$29.99
$29.99
Sale

Initiate Order

SCR Oval Can Capacitor

SCR Oval Can Capacitor

$29.99

Quantity: 1

Claim Your Seller Account

SCR Oval Can Capacitor

SCR Oval Can Capacitor

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

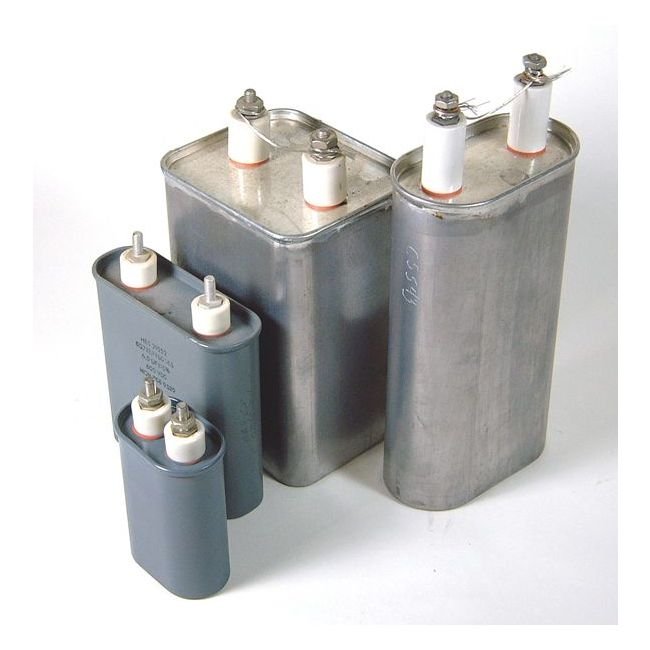

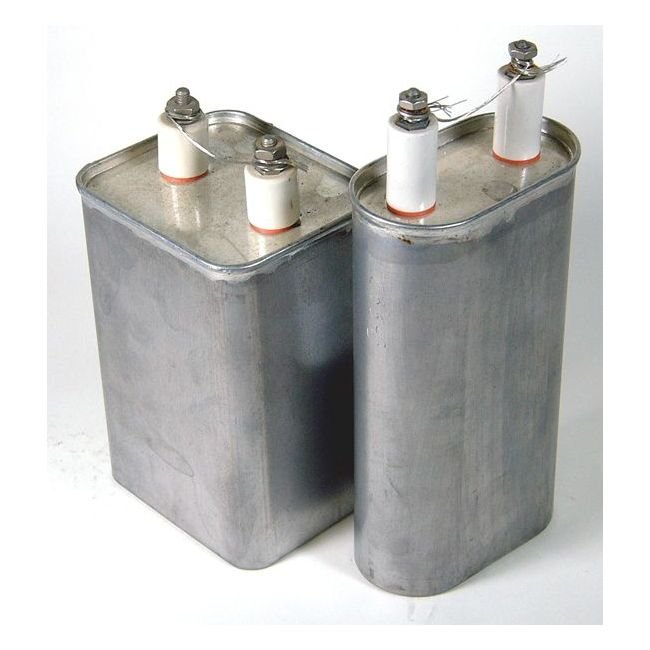

The SCR Oval Can Capacitor from the SCR Series Oil-Filled Capacitors collection is a high-performance solution for snubber & commutation applications. With a capacitance range of 0.25 to 15 µF and voltage rating of 600 VDC, this capacitor is designed to meet demanding requirements. Constructed with drawn plated steel cans and featuring kraft paper and polypropylene dielectric, it ensures reliable performance and durability in tough environments. This capacitor is compliant with industry standards, making it ideal for both consumer and institutional buyers seeking top-notch quality and reliability.

Product Specifications

Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel Cans (Welded Steel, Aluminum or Stainless Steel Available) | Epoxy Paint
Specifications Cap
0.25 µF
Specifications Capacitance Range
0.25 to 15 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

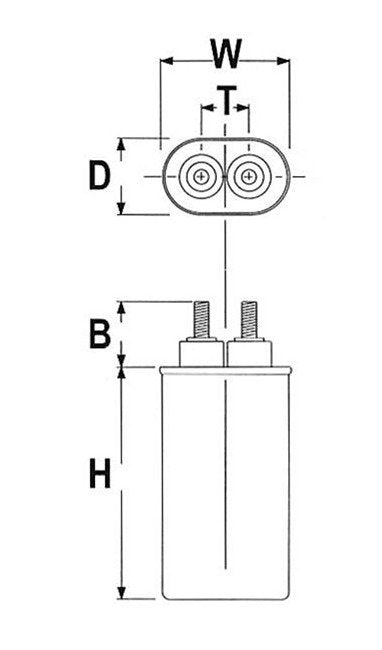

Specifications Dimension B
1.25
Specifications Dimension D
1.31
Specifications Dimension H
2.13
Specifications Dimension T
0.81
Specifications Dimension W
2.19
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Shape
Oval
Specifications Voltage Dc
600 V
