SCR Series Oil-Filled Capacitors - Drawn Oval Can
SCR Series Oil-Filled Capacitors - Drawn Oval Can
SKU:OIL-aa0195
Enhance your high voltage applications with SCR Series Oil-Filled Capacitors - Drawn Oval Can for reliable performance and durability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SCR Series Oil-Filled Capacitors - Drawn Oval Can
$49.99
Quantity: 1
Claim Your Seller Account
SCR Series Oil-Filled Capacitors - Drawn Oval Can
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

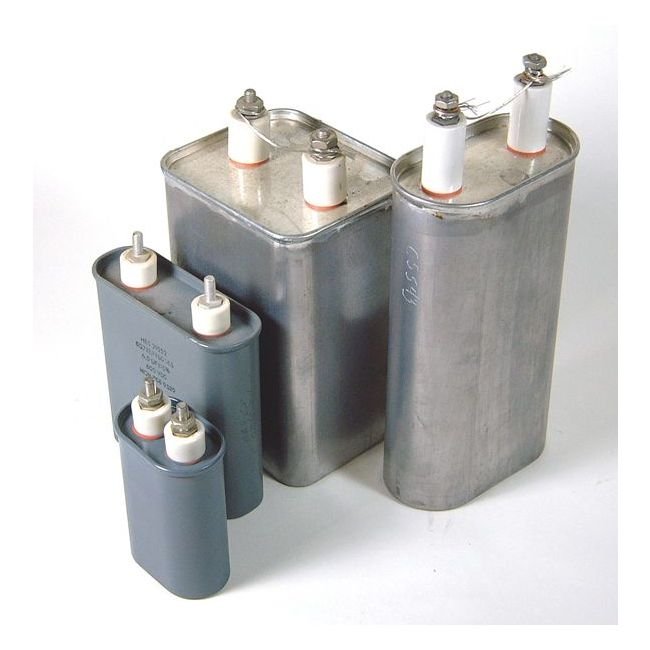

The SCR Series Oil-Filled Capacitors boast a capacitive range of 0.25 to 15 µF with a voltage rating of 2000 VDC, ensuring reliable performance in high voltage applications. Constructed with precision, these capacitors feature oval-shaped drawn plated steel cans, offering durability and efficiency. With a capacitance tolerance of ±10%, temperature resilience from -40 to +90 ºC, and excellent insulation resistance, these capacitors are ideal for snubber & commutation applications, meeting stringent industry standards.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction

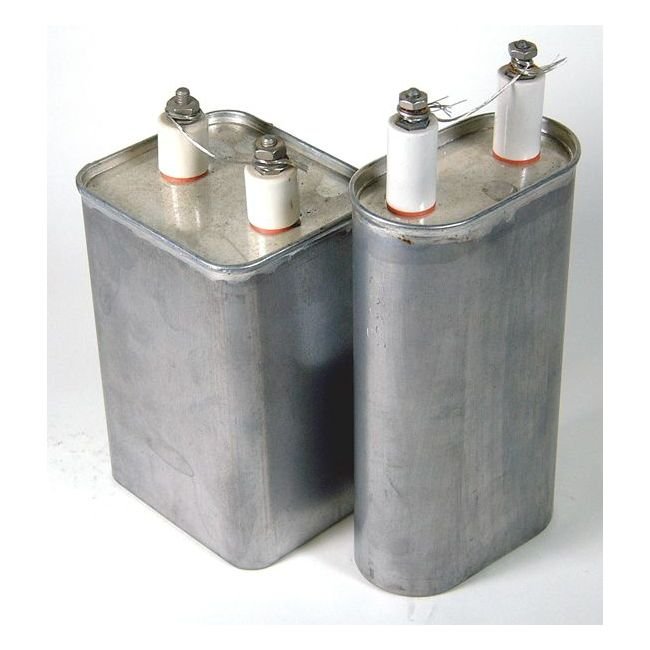

Drawn Plated Steel Cans (Welded Steel, Aluminum or Stainless Steel Available) | Epoxy Paint
Specifications Cap
1 µF
Specifications Capacitance Range
0.25 to 15 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

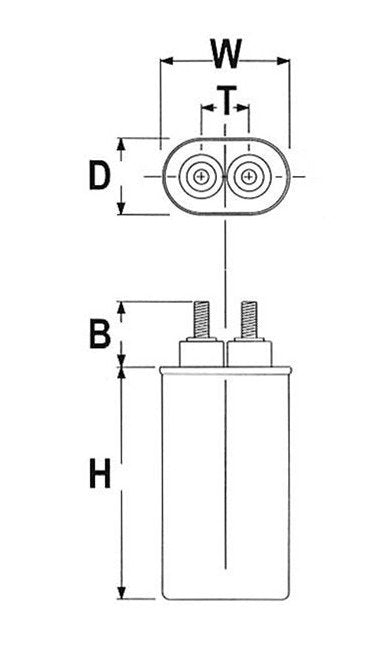

Specifications Dimension B
1.25
Specifications Dimension D
1.31
Specifications Dimension H
4.00
Specifications Dimension T
0.81
Specifications Dimension W
2.19
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Shape
Oval
Specifications Voltage Dc
2000 V
