SCR Series Oil-Filled Oval Can Capacitor - 2µF, 3000V
SCR Series Oil-Filled Oval Can Capacitor - 2µF, 3000V
SKU:OIL-8527e2
High voltage SCR Series Oil-Filled Oval Can Capacitor for reliable snubber & commutation applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SCR Series Oil-Filled Oval Can Capacitor - 2µF, 3000V
$49.99
Quantity: 1
Claim Your Seller Account
SCR Series Oil-Filled Oval Can Capacitor - 2µF, 3000V
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

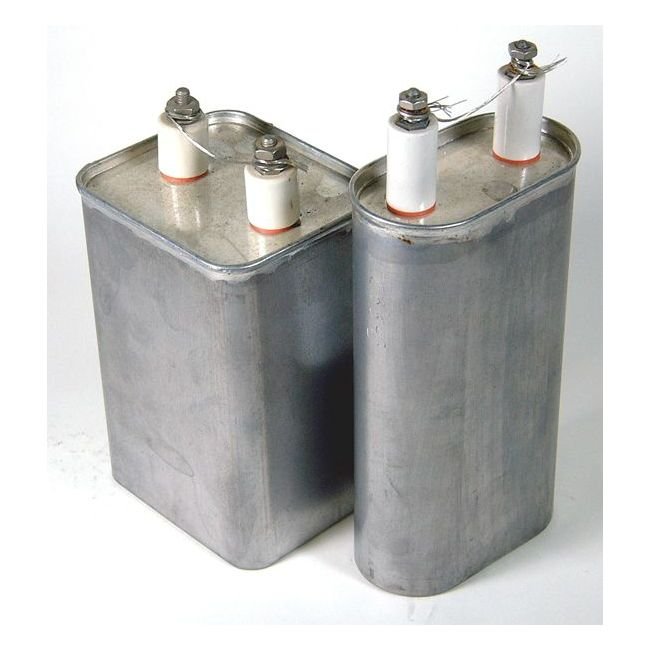

The SCR Series Oil-Filled Oval Can Capacitor is a high-quality component designed for snubber and commutation applications. With a capacitance range of 0.25 to 15 µF and a rated voltage of 3000VDC, this capacitor ensures reliable performance in demanding conditions. Constructed with drawn plated steel cans and featuring Kraft paper and polypropylene dielectric, it offers excellent insulation resistance and can operate in temperatures ranging from -40 to +90 ºC. Compliance with industry standards and precise engineering make it an ideal choice for both consumer and institutional needs.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel Cans (Welded Steel, Aluminum or Stainless Steel Available) | Epoxy Paint
Specifications Cap
2 µF
Specifications Capacitance Range
0.25 to 15 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

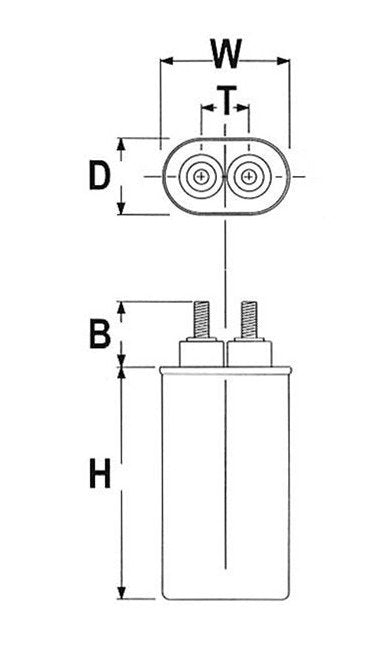

Specifications Dimension B
1.25
Specifications Dimension D
1.91
Specifications Dimension H
5.00
Specifications Dimension T
1.38
Specifications Dimension W
2.91
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Shape
Oval
Specifications Voltage Dc
3000 V
