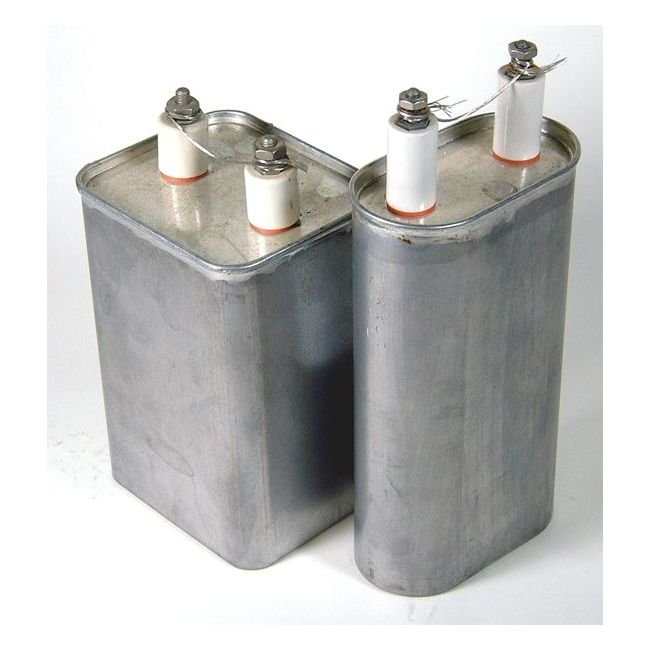

SCR Series Oval Oil-Filled Capacitor
SCR Series Oval Oil-Filled Capacitor
SKU:OIL-23c9c4
Upgrade to the SCR Series Oval Oil-Filled Capacitor for reliable high voltage performance with 0.5 µF capacitance and 2000 VDC. Designed for durability and efficiency.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SCR Series Oval Oil-Filled Capacitor
$49.99
Quantity: 1
Claim Your Seller Account
SCR Series Oval Oil-Filled Capacitor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

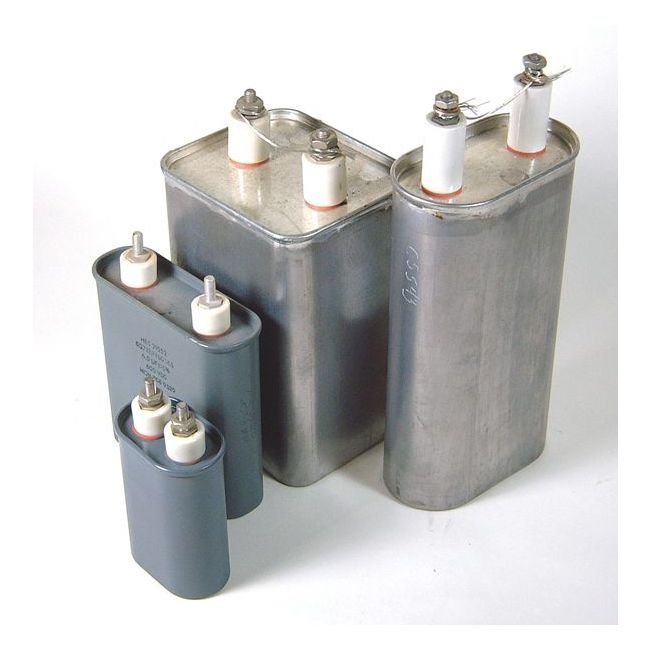

Enhance your electrical systems with the SCR Series Oval Oil-Filled Capacitor. With a capacitance range of 0.25 to 15 µF and a voltage rating of 2000 VDC, these capacitors are designed for high-performance applications. Featuring drawn plated steel cans and Kraft paper/polypropylene dielectric, they ensure reliability in challenging environments. The capacitors meet stringent insulation resistance requirements and operate effectively in temperatures ranging from -40 to +90 ºC. Upgrade to these capacitors for superior performance and longevity in your power system.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel Cans (Welded Steel, Aluminum or Stainless Steel Available) | Epoxy Paint
Specifications Cap
0.5 µF
Specifications Capacitance Range
0.25 to 15 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

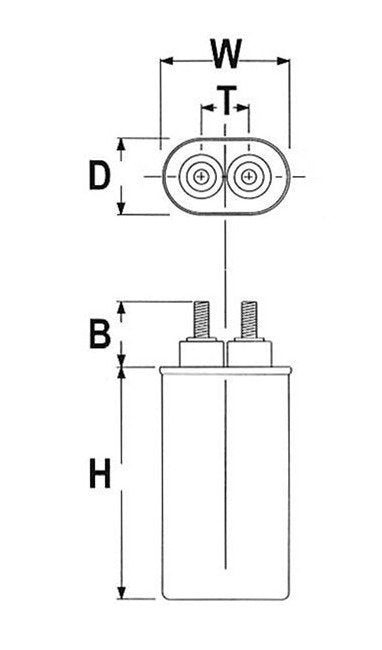

Specifications Dimension B
1.25
Specifications Dimension D
1.31
Specifications Dimension H
3.00
Specifications Dimension T
0.81
Specifications Dimension W
2.19
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Shape
Oval
Specifications Voltage Dc
2000 V
