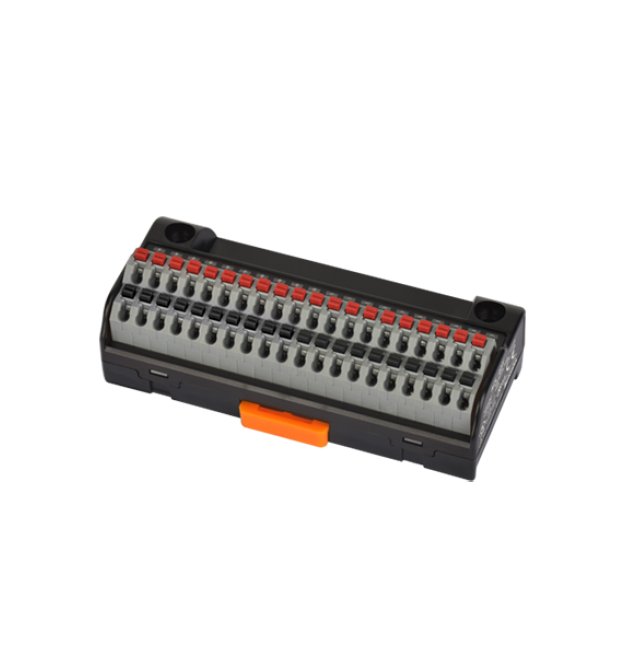

Screwless I/O Terminal Block -15 to 55°C Ambient Temperature, 40 Terminals
Screwless I/O Terminal Block -15 to 55°C Ambient Temperature, 40 Terminals
SKU:PRO-572f49
Efficient Screwless I/O Terminal Block for diverse electrical needs, -15 to 55°C range, 40 terminals, CE & cULus approved.
Regular price
$41.95
Regular price
Sale price
$41.95
Unit price
per
Initiate Order
Screwless I/O Terminal Block -15 to 55°C Ambient Temperature, 40 Terminals
$41.95
Quantity: 1
Claim Your Seller Account
Screwless I/O Terminal Block -15 to 55°C Ambient Temperature, 40 Terminals
$41.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your electrical connections with our Screwless I/O Terminal Block designed for efficiency and durability. With a wide operating temperature range of -15 to 55°C and approval by European Conformity (CE) and cULus, this terminal block ensures reliable performance in various environments. Featuring 40 terminals, tin-plated copper conducting plates, and Polycarbonate construction, this terminal block offers insulation resistance of ≥1,000 MΩ and a maximum rated current of 10 A. Suitable for solid and stranded wires with simplified installation due to the screwless design.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength At 506
3,000 V
Specifications Alternating Current Ac Rated Voltage
â¤250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
146 g
Specifications Approximate Weight
79 g
Specifications Base Material
Polycarbonate
Specifications Case Material
Polycarbonate (PC)
Specifications Common Type
Up +COM, Down -COM
Specifications Conducting Plate
Tin Plated Copper
Specifications Direct Current Dc Rated Voltage
â¤250 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
41.95 USD
Specifications Maximum Rated Current
10 A
Specifications Number Of Terminals
40 Each
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Stripped Wire Length
8 to 10 mm
Specifications Terminal Material
Polyamide 66
Specifications Terminal Pitch
5.0 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
