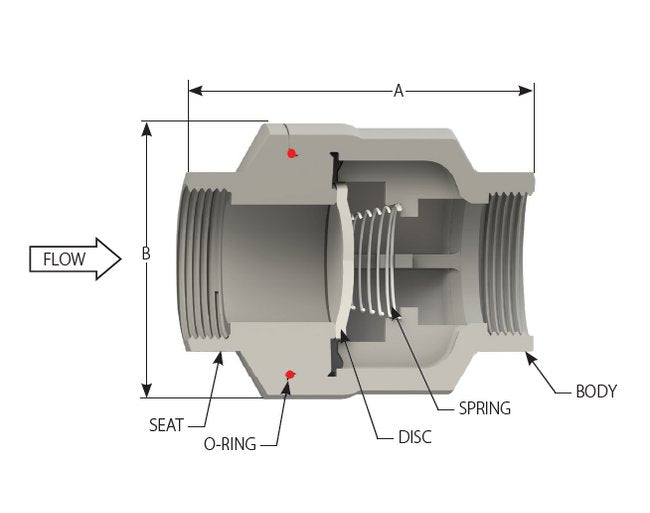

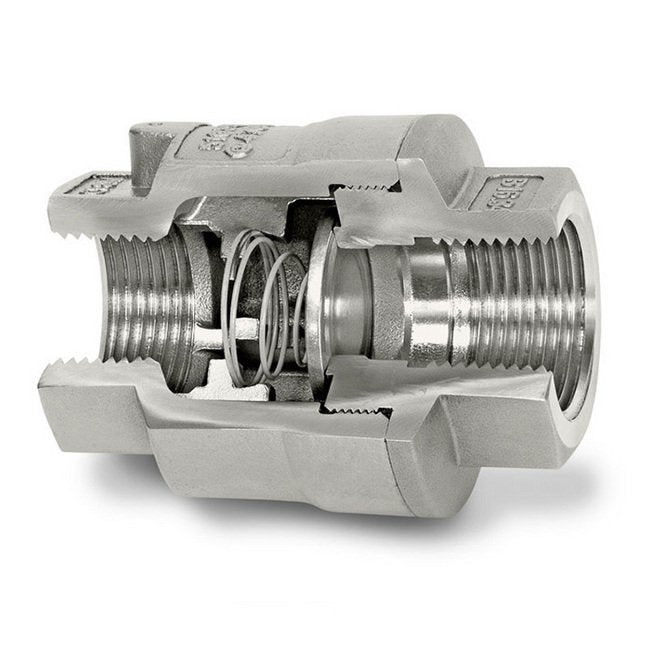

• SCV® 2" Socket Weld Check Valve, 316 Stainless Steel, EPDM Seal - Image 1
  • SCV® 2" Socket Weld Check Valve, 316 Stainless Steel, EPDM Seal - Image 2
1 2
DFT Inc. →

SCV® 2" Socket Weld Check Valve, 316 Stainless Steel, EPDM Seal

SCV® 2" Socket Weld Check Valve, 316 Stainless Steel, EPDM Seal

INL-d664ce

Durable 2" SCV® Socket Weld Check Valve, 316 SS, EPDM Seal. Tight shut-off, water hammer protection, ANSI/MSS/ASTM compliant.

$279.99
$279.99
Sale

Initiate Order

SCV® 2" Socket Weld Check Valve, 316 Stainless Steel, EPDM Seal

SCV® 2" Socket Weld Check Valve, 316 Stainless Steel, EPDM Seal

$279.99

Quantity: 1

Claim Your Seller Account

SCV® 2" Socket Weld Check Valve, 316 Stainless Steel, EPDM Seal

SCV® 2" Socket Weld Check Valve, 316 Stainless Steel, EPDM Seal

$279.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SCV® 2" Socket Weld Check Valve in 316 stainless steel is a durable, corrosion-resistant solution designed for a variety of applications. With a cold working pressure of 750 psig, it ensures tight shut-off and protects downstream equipment from water hammer. Featuring Inconel® X-750 spring, EPDM seal, and compliant with ANSI, MSS, and ASTM standards, this check valve is ideal for industries like chemical, petrochemical, and water treatment.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application 0
Autoclaves | Boiler Feed & Discharge | Chemical Lines | Compressor Discharge | Condensate Lines | Cookers | Cooling Towers | Crude & Refined Product Lines | Cryogenics | Digester | Evaporators | Fly Ash System | Generator Inlet & Discharge | Hydraulic Lines | Metering Pumps | Mine Dewatering | Nitrogen Purge | Process Lines | Pump Discharge | Refrigeration | Steam Lines | Vacuum Breaker | Water Lines | Water Treatment
Available Soft Seat Materials Available Soft Seat Materials
Buna-N (-70 to 250ºF) | EPDM (-75 to 300ºF) | TFE®-Viton® (-40 to 400ºF) | Viton® (-40 to 400ºF) | Zelon® (37 to 470ºF)
Codes And Standards Ansi
B1.1 | B1.20.1 | B16.11 | B16.25 | B16.34
Codes And Standards Astm
A351GR CF8M
Codes And Standards Mss
SP-126 | SP-25 | SP-61
Features 0
1/2" to 3" Line size750 & 3600 CWPNPT & SW endsStainless Steel ConstructionInconel® X-750 springSpring-assisted silent closing, non-slamZelon® body "O" ring body sealHorizontal or vertical installationBody guided discTight shut-off - lapped disc & seatSimplified construction - 5 partsEasy maintenanceVersatile
Materials Of Construction Body
A351 CF8M
Materials Of Construction Body Material
316 Stainless Steel
Materials Of Construction Body Seal
EPDM
Materials Of Construction Disc
316 SS
Materials Of Construction Seat
A351 CF8M/EPDM
Materials Of Construction Spring
Inconel® X-750
Old Npt Old Part
8374SW
Options 0
316 SS SpringsBody seal weld (700°F Maximum)Soft seatAlloy 20 body & seat (ASME 300)Hastelloy C body & seat (ASME 300)Socket weld endsSCV-R restrictor check (higher cracking pressure)Butt weld endsNACELight cracking pressure springs
Specifications Asme Class
300
Specifications B Dia
4.4 in | 112 mm
Specifications Cold Working Pressure
750 psig | 51.7 barg
Specifications Cracking Pressure Cp
0.42 psig | 0.029 bar
Specifications Cv
93
Specifications Dimension A
5.00 in | 127 mm
Specifications Dimension B
4.4 in | 112 mm
Specifications Ends
Socket Weld
Specifications Other
API PED
Specifications Repair Kit Available
8374-RK, Repair Kits
Specifications Series
SCV®
Specifications Size
2.00 in | DN 50
Specifications Temperature Rating
-75 to 300 ºF | -59.44 to 148.89 ºC
Specifications Trim
316 SS
Specifications Valve Type
Check Valve
Specifications Weight
7.7 lb | 3.5 kg
Specifications Working Steam Pressure
580 psig
Valve Selection Chart Asme Cwp
300 | 750
