SCV-R® 3/4" NPT 316 SS In-Line Restrictor Check Valve
SCV-R® 3/4" NPT 316 SS In-Line Restrictor Check Valve
SKU:INL-586fbe
High-performance SCV-R® Check Valve with 750 psig CWPNPT, 316 SS construction, & Inconel® X-750 spring. Meets Federal standards.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
SCV-R® 3/4" NPT 316 SS In-Line Restrictor Check Valve
$189.99
Quantity: 1
Claim Your Seller Account
SCV-R® 3/4" NPT 316 SS In-Line Restrictor Check Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

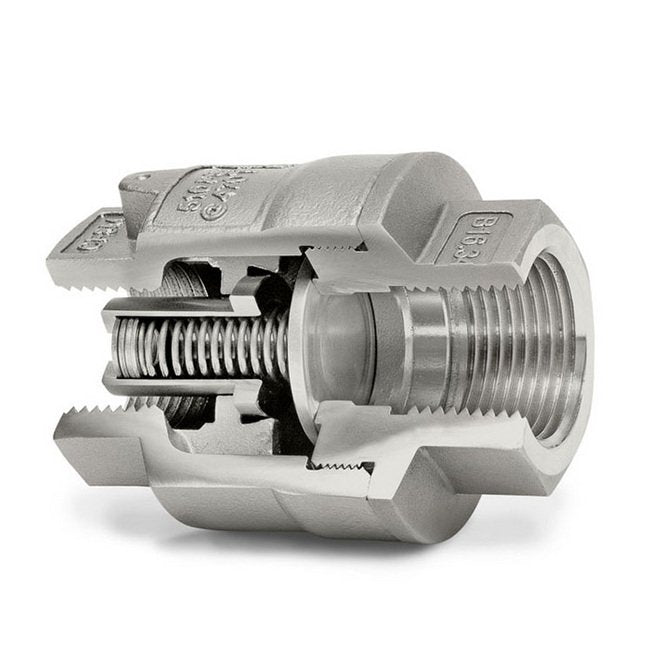

The SCV-R® In-Line Restrictor Check Valve is expertly designed for applications requiring higher cracking pressures. Constructed with 316 stainless steel and Inconel® X-750 spring, it ensures reliable and silent operation. With a cracking pressure of 5 psig and tight shut-off lapped disc & seat, this valve offers superior performance in various industrial settings. Certified to ASTM, ANSI, and MSS standards, it meets the stringent requirements of Federal procurement codes, making it a top choice for government and institutional buyers.
Product Specifications
Application 0
Autoclaves | Boiler Feed & Discharge | Chemical Lines | Compressor Discharge | Condensate Lines | Cookers | Cooling Towers | Crude & Refined Product Lines | Cryogenics | Digester | Evaporators | Fly Ash System | Generator Inlet & Discharge | Hydraulic Lines | Metering Pumps | Mine Dewatering | Nitrogen Purge | Process Lines | Pump Discharge | Refrigeration | Steam Lines | Vacuum Breaker | Water Lines | Water Treatment
Codes And Standards Ansi
B1.1 | B1.20.1 | B16.11 | B16.25 | B16.34
Codes And Standards Astm
A351GR CF8M
Codes And Standards Mss
SP126 | SP-25 | SP61
Features 0
1/2" to 2" Line size750 CWPNPT & SW endsStainless Steel ConstructionInconel® X-750 springSpring-assisted silent closing, non-slamCracking Pressures: 0.8 to 40.8 psigZelon® body "O" ringHorizontal or vertical installationBody guided discTight shut-off - lapped disc & seatSimplified construction - 5 partsEasy maintenanceVersatileInconel® X-750 spring is standard

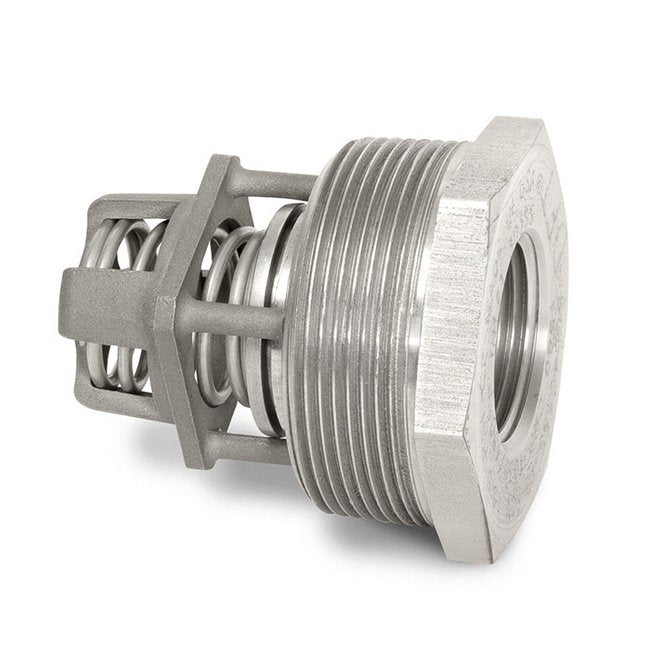

Materials Of Construction Body
A351 CF8M
Materials Of Construction Body Material
316 Stainless Steel
Materials Of Construction Disc
316 SS
Materials Of Construction O Ring
Zelon (470°F max.)
Materials Of Construction Seat
316 SS
Materials Of Construction Spring
Inconel® X-750
Materials Of Construction Spring Retainer Assembly
316 SS
Old Npt Old Part
8368-RC050
Options 0
316 SS SpringsBody seal weld (700°F Maximum)Soft seatAlloy 20 body & seat (ASME 300)Hastelloy C body & seat (ASME 300)NPT x socket weld endsButt weld endsRepair kitsField conversion kits
Specifications Available Soft Seat Materials
TFE®-Viton® (-40 to 400ºF) | Viton® (-40 to 400ºF) | Zelon® (37 to 470ºF)
Specifications Body Seal
Zelon® O-ring

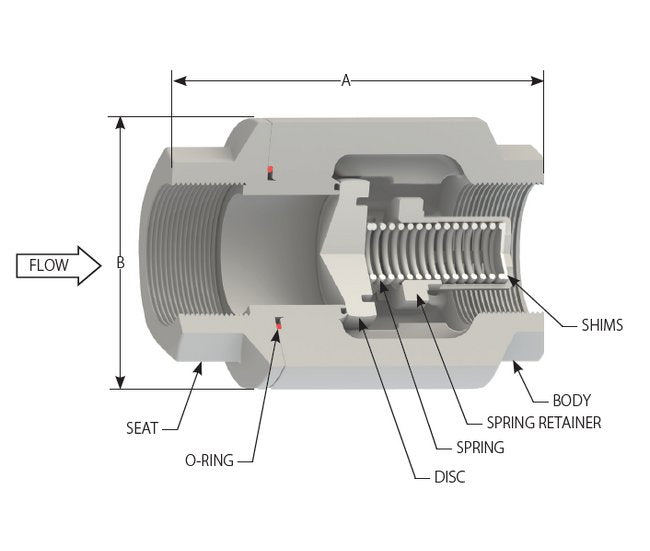

Specifications B Dia
2.13 in | 54 mm
Specifications Cold Working Pressure
750 psig | 51.7 barg
Specifications Cracking Pressure Cp
5 psig | 0.345 bar
Specifications Cracking Pressure Cp Tolerance
±10%
Specifications Cv
10
Specifications Dimension A
3.00 in | 76 mm
Specifications Ends
NPT (Threaded)
Specifications Series
SCV-R®
Specifications Size
0.75 in | DN 20
Specifications Temperature Rating
37 to 470 ºF | 2.78 to 243.33 ºC
Specifications Weight
1.5 lb | 0.7 kg
Specifications Working Steam Pressure
510 psig
