SD Series Electromagnetic Chuck Controller
SD Series Electromagnetic Chuck Controller
SKU:SDS-4e6468
Efficiently control electromagnetic chucks with the SD Series Controller. Features advanced demagnetization and precise power settings for optimal performance.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
SD Series Electromagnetic Chuck Controller
$899.99
Quantity: 1
Claim Your Seller Account
SD Series Electromagnetic Chuck Controller
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

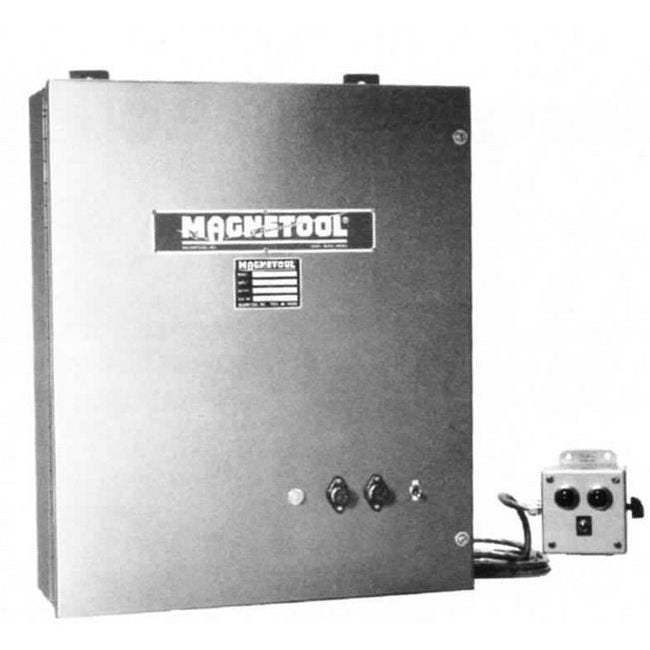

The SD Series Electromagnetic Chuck Controller is designed for applications requiring robust demagnetization and high wattage capabilities. With a power rating of 1000W and AC input voltage options of 240V or 480V, this controller ensures efficient operation. It features a compact main enclosure for convenience and a user-friendly interface with On-Off control, green and red indicator lights, and a variable power switch. The controller's advanced features include a Residual Hold function, dust-tight main enclosure, electronic demagnetizing cycle, and variable DC output voltage settings from 0 to 110V. Additionally, the optional 0 to 230VDC output is available upon request, providing flexibility for different operational requirements.
Product Specifications
Additional Information 0
The green light indicates power is on. The red light indicates the chuck has power. When the control switch is turned to "Mag-Off" the red light will gradually fade out. The operator can then remove the work with ease. The variable power switch on the side can be dialed for full power to residual.
Manufacturing Notes 0
0 to 230 VDC output available on request.
Specifications Ac Input Voltage
240 V | 480 V
Specifications Dc Output Voltage
0 to 110 V
Specifications Features
"Residual Hold" feature | 240/480 VAC 1 phase, 60 Hz,input | All Solid State Circuitry | Dust-Tight main enclosure | Electronic Step-Down Demagnetizing Cycle | Oil-Tight remote control unit with indicating lamps | Variable 0 to 110 VDC output voltage
Specifications Input Frequency
60 Hz
Specifications Main Enclosure Depth
9 in
Specifications Main Enclosure Height
20 in
Specifications Main Enclosure Width
16 in
Specifications Power
1000 W
