SD Series Electromagnetic Chuck Controller

Name: SD Series Electromagnetic Chuck Controller
Brand: Magnetool, Inc.
SKU: SDS-395e68
Price: 899.99 USD
Availability: OutOfStock

SKU:SDS-395e68

High-performance electromagnetic chuck controller for precise demagnetization and variable power control in industrial applications.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

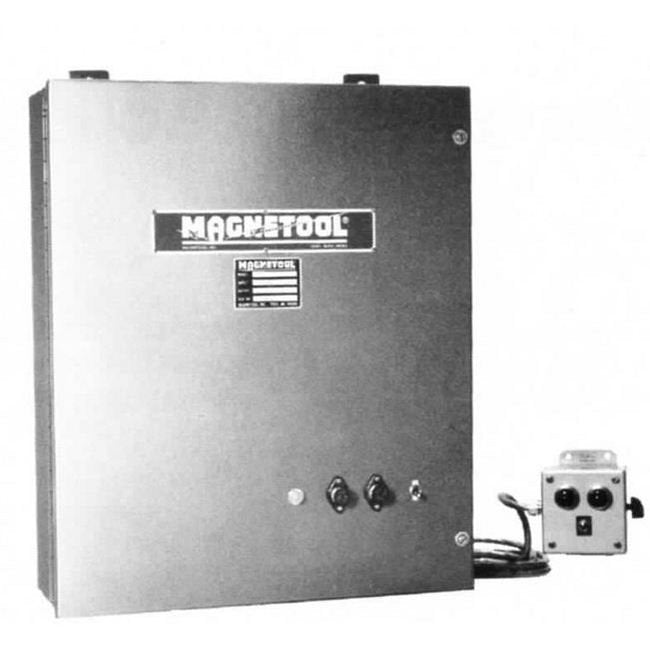

The SD Series Electromagnetic Chuck Controller is a high-performance device designed for applications requiring greater chuck demagnetization and high wattage ratings. Featuring a dust-tight and oil-tight main enclosure that can be rear-mounted or wall-mounted, this controller operates seamlessly from a compact front-mounted enclosure. With a power output of 2000W, AC input voltage options of 240V or 480V, and a DC output voltage range of 0 to 110V, this controller offers precision control. The 'Residual Hold' feature, electronic demagnetizing cycle, and variable power switch enhance operational efficiency, making it ideal for industrial settings.

Product Specifications

Additional Information 0

The green light indicates power is on. The red light indicates the chuck has power. When the control switch is turned to "Mag-Off" the red light will gradually fade out. The operator can then remove the work with ease. The variable power switch on the side can be dialed for full power to residual.

Manufacturing Notes 0

0 to 230 VDC output available on request.

Specifications Ac Input Voltage

240 V | 480 V

Specifications Dc Output Voltage

0 to 110 V

Specifications Features

Specifications Input Frequency

60 Hz

Specifications Main Enclosure Depth

11 in

Specifications Main Enclosure Height

24 in

Specifications Main Enclosure Width

20 in

Specifications Power

2000 W

SD Series Electromagnetic Chuck Controller
