SD Series Electromagnetic Chuck Controller

Name: SD Series Electromagnetic Chuck Controller
Brand: Magnetool, Inc.
SKU: SDS-5a713f
Price: 349.99 USD
Availability: OutOfStock

SKU:SDS-5a713f

Ensure precise chuck demagnetization with the SD Series Electromagnetic Chuck Controller. Features 300W power, 240V|480V AC input, and 0-110V DC output for optimal performance.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

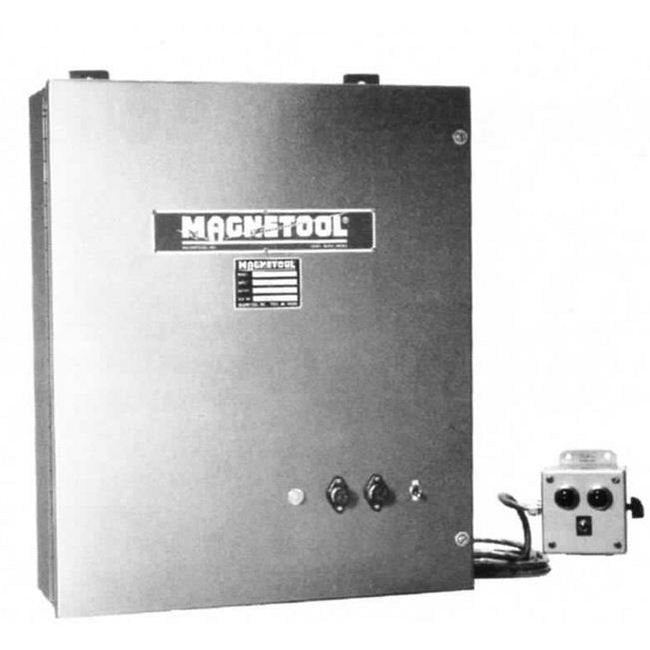

The SD Series Electromagnetic Chuck Controller is a reliable solution for applications requiring high chuck demagnetization levels and those with high wattage ratings. Featuring a main enclosure that can be rear- or wall-mounted, this controller operates from a compact front enclosure. It includes essential controls such as the On-Off switch, green and red indicator lights, and a variable power switch. With specifications like 300W power, 240V|480V AC input voltage, and precise 0 to 110V DC output voltage, this controller ensures efficient and safe chuck operation.

Product Specifications

Additional Information 0

The green light indicates power is on. The red light indicates the chuck has power. When the control switch is turned to "Mag-Off" the red light will gradually fade out. The operator can then remove the work with ease. The variable power switch on the side can be dialed for full power to residual.

Manufacturing Notes 0

0 to 230 VDC output available on request.

Specifications Ac Input Voltage

240 V | 480 V

Specifications Dc Output Voltage

0 to 110 V

Specifications Features

Specifications Input Frequency

60 Hz

Specifications Main Enclosure Depth

6 in

Specifications Main Enclosure Height

16 in

Specifications Main Enclosure Width

14 in

Specifications Power

300 W
