SE-A142A 3-Stage Planetary Reducer Gearbox
SE-A142A 3-Stage Planetary Reducer Gearbox
SKU:PLA-c6169b
High-performance 3-stage planetary gearbox with 400 ratio, P1 backlash, and superior torque transmission.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
SE-A142A 3-Stage Planetary Reducer Gearbox
$1,599.99
Quantity: 1
Claim Your Seller Account
SE-A142A 3-Stage Planetary Reducer Gearbox
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

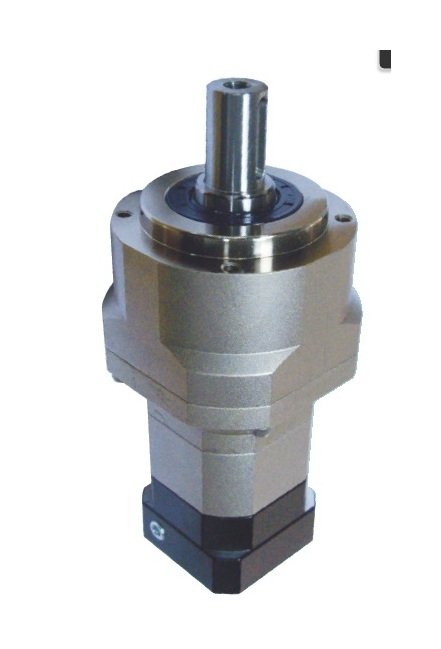

The Servobox Series Model SE-A142A is a high-performance 3-stage planetary reducer gearbox designed for precision industrial applications. With a 400 ratio, P1 backlash class, and standard output bearing, this gearbox delivers exceptional torque transmission and efficiency. Its high input speed of 5000 RPM, low backlash of ≤9 arc·min, and torsional rigidity of 60 N·m/arc·min ensure smooth operation under varying loads. Made of high tensile strength alloy steel, it offers superior stability and durability. Ideal for demanding environments, this gearbox provides reliable performance and long service life.

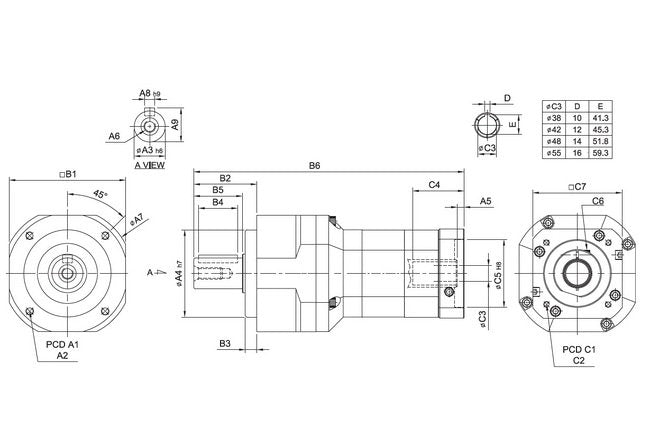

Product Specifications
Dimensions Dimension A1
140 mm
Dimensions Dimension A2
M10 x P1.5
Dimensions Dimension A3
40 mm
Dimensions Dimension A4
120 mm
Dimensions Dimension A5
10 mm | 20 mm
Dimensions Dimension A6
M12 x P1.75
Dimensions Dimension A7
166 mm
Dimensions Dimension A8
12 mm
Dimensions Dimension A9
43 mm
Dimensions Dimension B1
142 mm
Dimensions Dimension B2
92 mm
Dimensions Dimension B3
15 mm
Dimensions Dimension B4
65 mm
Dimensions Dimension B5
74 mm
Dimensions Dimension B6
354.5 mm
Dimensions Dimension C1
115 mm | 145 mm | 165 mm
Dimensions Dimension C2
M6 | M8 | M10
Dimensions Dimension C3
24 mm | 28 mm | 32 mm
Dimensions Dimension C4
67 mm | 77 mm
Dimensions Dimension C5
95 mm | 110 mm | 130 mm
Dimensions Dimension C6
M8 x P1.25
Dimensions Dimension C7
122 mm | 130 mm | 150 mm
Features Features
High TorqueHigher output torque is compared to spur gear planetary gear reducers.High StabilityEmploys high tensile strength alloy steel. Gear hardening is made for the entire gear which extends gear service life and maintains high accuracy after a long period of operation.High Speed Reduction RatioThe gear reducer is a modular design. The planetary gear box can be connected. The speed reduction ratio can reach over 1/10000.
Specifications Backlash
⤠9 arc·min
Specifications Backlash Class
P1
Specifications Efficiency
⥠90 %
Specifications Lubrication
Synthetic Grease
Specifications Mass Moments Of Inertia
0.09 kg·cm²
Specifications Maximum Acceleration Torque T2b
1.8 Times of Rated Output Torque
Specifications Maximum Axial Force F2ab
4650 N
Specifications Maximum Input Speed N1b
5000 rpm
Specifications Maximum Output Torque Emergency Stop Torque T2not
3 Times of Rated Output Torque
Specifications Maximum Radial Force F2rb
9300 N
Specifications Model
142
Specifications Mounting Position
Any
Specifications Noise Level
⤠65 dB
Specifications Operating Temperature
-25 to +90 ºC
Specifications Output Bearing
Standard (Keyway)
Specifications Protection Class
Ingress Protection (IP65)
